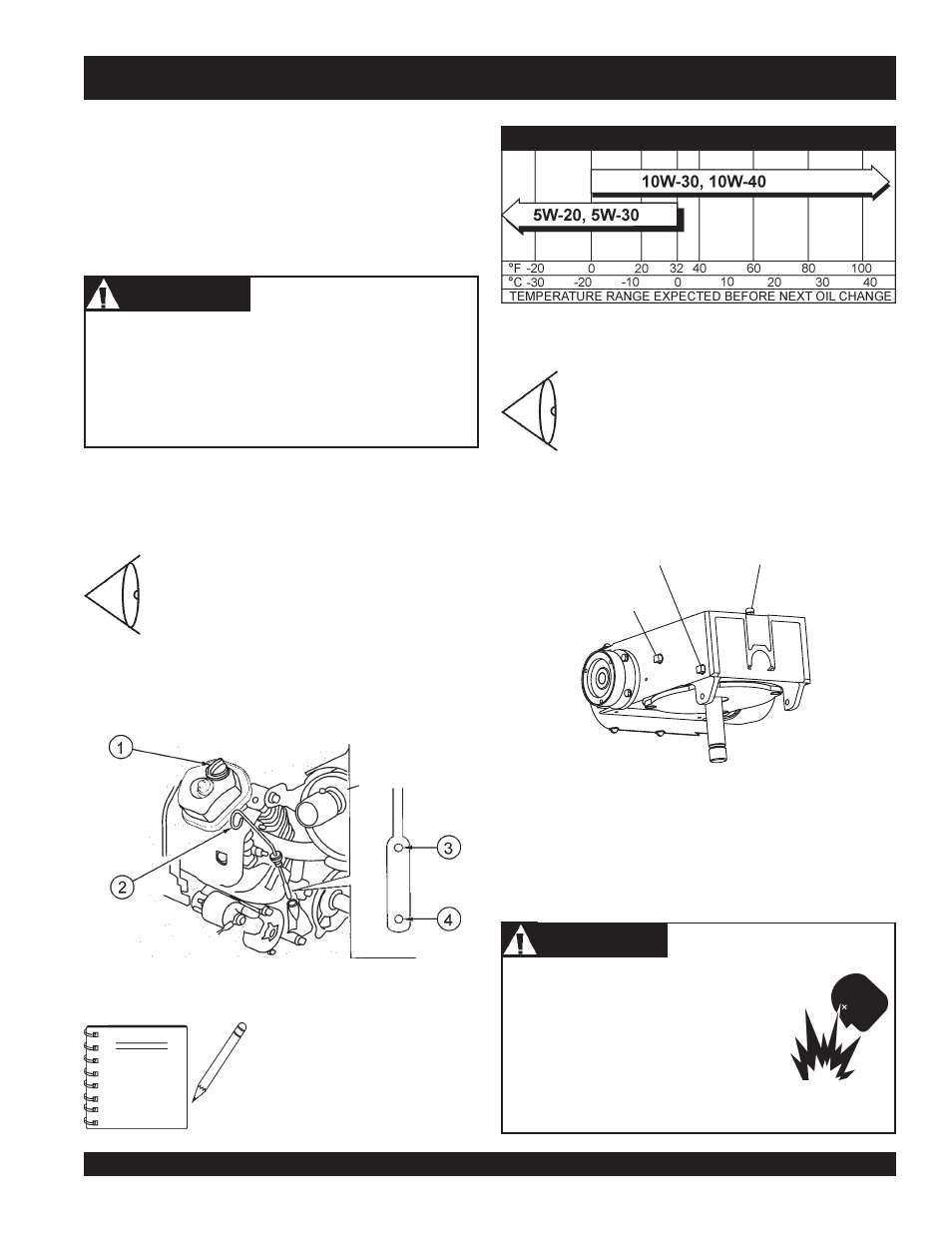

JWN- SERIES • RIDE-ON POWER TROWEL — PARTS AND OPERATION MANUAL — REV. #8 (12/18/07) — PAGE 21
JWN-SERIES — INITIAL START-UP
The following section is intended as a basic guide to the ride-on
trowel operation, and is not to be considered a complete guide
to concrete finishing. It is strongly suggested that all operators
(experienced and novice) read “
Slabs on Grade ” published by
the American Concrete Institute, Detroit Michigan.
DO NOT use your ride-on power trowel until this section is
thoroughly understood.
1. Check the gearbox oil level in both gearboxes
by removing the level plug and ensuring that
the oil is at the correct level. See Figure 6.
2. Fill the gear box just to the level of the fill plug.
(Figure 6) with 69 oz. of Mobil ISO VG 640
SCH 634 oil.
Figure 6. Gearbox Oil Plugs/Sight Glass
Figure 5. Engine Oil Dipstick
1. Pull the engine oil dipstick (Item 2, Figure 5)
from its holder.
FILL/LEVEL
CHECK PLUG
DRAIN
PLUG
GEARBOX
VENT
Determine if the engine fuel is low (Figure 7). If fuel level is low,
remove the fuel filler cap and fill with unleaded gasoline.
Handle fuel safely. Motor fuels are highly
flammable and can be dangerous if
mishandled. DO NOT smoke while
refueling. DO NOT attempt to refuel the ride-
on trowel if the engine is hot or running. DO
NOT attempt to start the engine until the fuel
residue has been completely wiped up and
the area surrounding the engine is dry.
ALWAYS check engine oil BEFORE EACH USE.
NOTE
To prevent extensive engine wear or
damage, always maintain the proper
oil level in the crankcase. Never
operate the engine with the oil level
outside of marks on dipstick, (Items
3 and 4 in Figure 5.)
Failure to understand the operation of the JWN-SERIES
trowel could result in severe damage to the machine or
personal injury.
See Figures 2 and 3 (Pages 20 and 21) for the location of
any control or indicator referenced in this manual.
CAUTION CAUTION CAUTION CAUTION CAUTION
Engine Oil Level
DANGER DANGER DANGER DANGER DANGER
Table 4. Recommended Viscosity Grades
Fuel
Gearbox Oil Level
3. If engine oil is low, remove oil filler cap (Item 1, Figure 5),
and add correct amount of engine oil to bring oil level to a
normal safe level. Use oil as recommeded in Table 3.
2. Determine if engine oil is low (Figure 5).
