PAGE 90 — MAYCO C30HDZ PUMP — OPERATION AND PARTS MANUAL — REV. #12 (04/03/12)

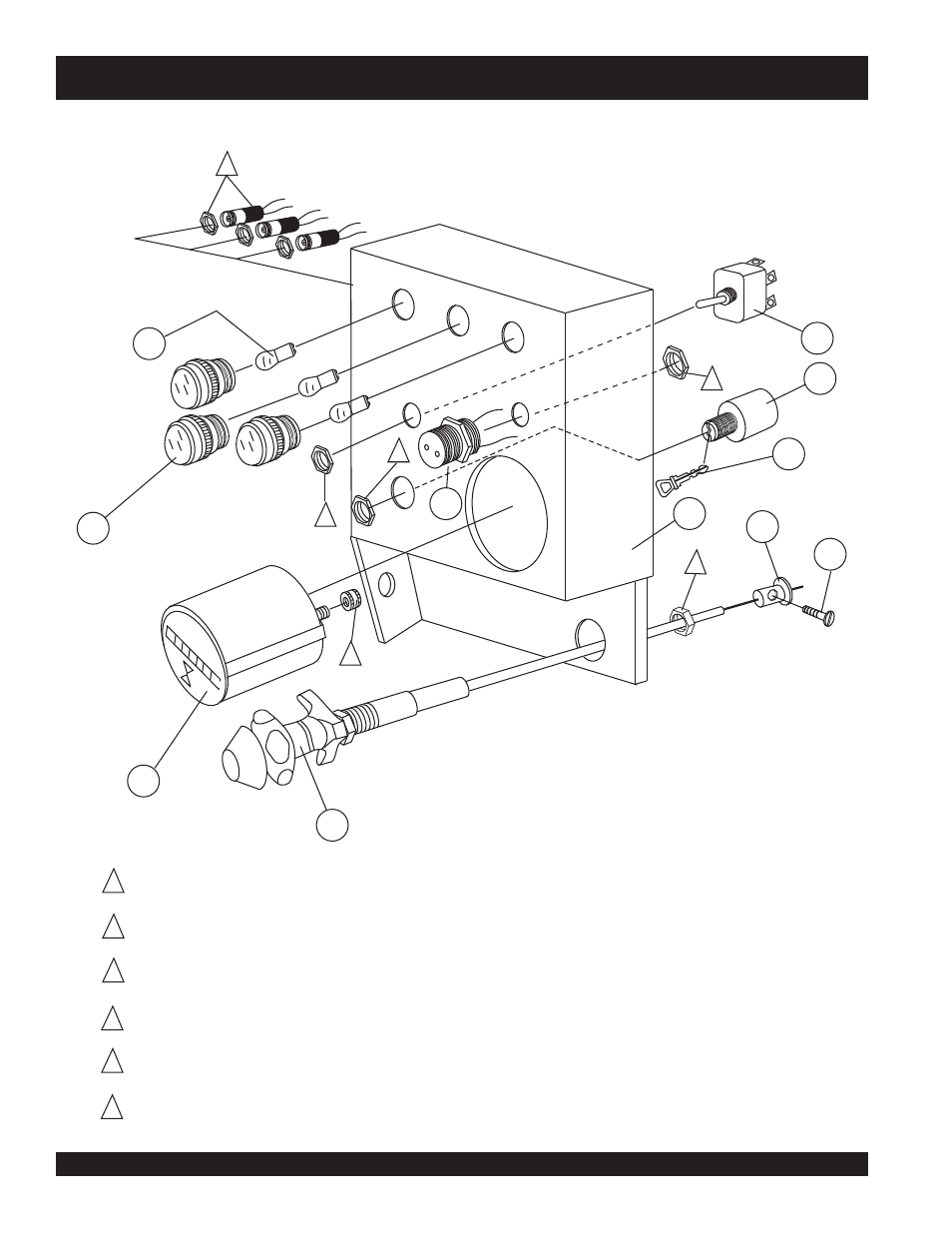

CONTROL BOX ASSY.
CONTROL BOX ASSY.
NOTES:
1
INCLUDED WITH ITEM 8,
IGNITION SWITCH P/N 10958
4
INCLUDED WITH ITEM 10,
PUMPING CONTROL SWITCH P/N 40711
6
INCLUDED WITH ITEM 4,
HOUR METER P/N 506222
11
INCLUDED WITH ITEM 1,
THROTTLE CABLE P/N 510229
2
3
INCLUDED WITH ITEM 5,
REMOTE OUTLET PLUG P/N Em26789
5
h
1
6
10
5
1
LAMP HOLDER INCLUDED
WITH ITEMS 13, 14, & 15
2
6
7
4
8
9
2
3
4
5
3
