PAGE 20 — MAYCO C30HDZ PUMP — OPERATION AND PARTS MANUAL — REV. #12 (04/03/12)
OPERATION AND SAFETY DECALS

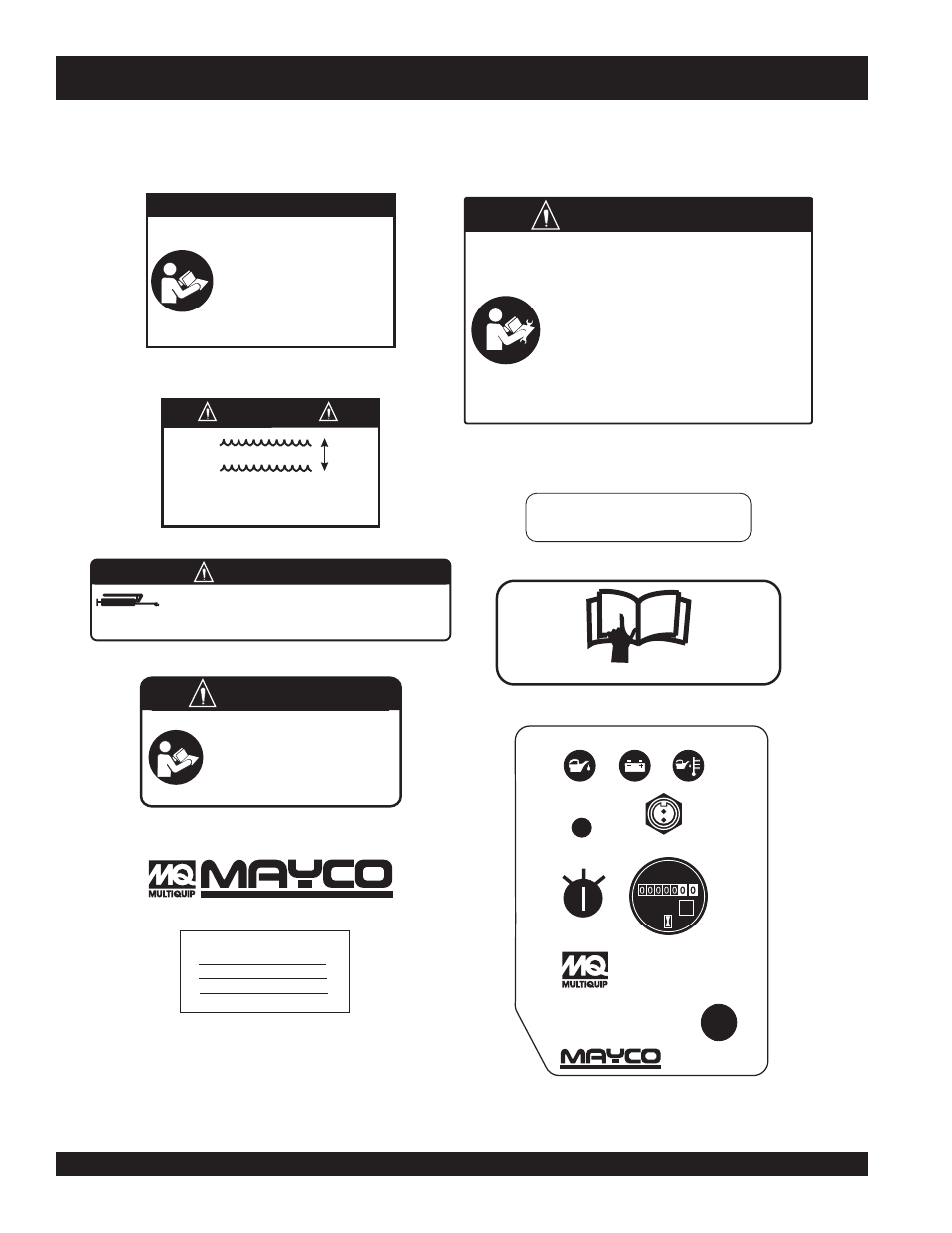

Figure 5. Operation and Safety Decals
Figure 5 display's the operation and safety decals as they appear on the concrete pump, should any of these decals become
damaged or unreadable, contact the Multiquip Parts Department for a replacement set.
1. Before setup and operation of this equipment, the designated operator
MUST read and completely understand the operating instruction manual.
2. Keep unauthorized and untrained people away from the machine during
operation.
3. Do NOT operate unit with engine cover open: rotating or moving parts will
cause serious injury. ( An automatic shutdown switch has been
installed on the hood to prevent this.
4. Engine must be shut off before servicing.
5. Keep hands out of hopper when engine is running.
6. Check hopper for obstructions before operating machine.
7. This machine is remotely controlled and may start at any time.
8. Stop the engine before adding fuel or oil.
CAUTION !
508594
LOW
NORMAL
Before starting engine, check that the oil level
inside the “
” is within the indicated
operating range. Recommended oil type SAE 30.
LUBE BOX
1”
CAUTION
DCL 152
C-30HDZ
P/N 508594
P/N 513119
P/N DCL152
P/N EM1028
GREASE DAILY, EVERY ZERK
Use No. 2 Multipurpose Automotive Grease
MAINTENANCE
513165
P/N EM513165
NAMEPLATE
CONTACT PARTS DEPT.
P/N EM932
When the pump, manifold or delivery system
plugs, do not disconnect the delivery system
clamps or open the manifold. A plug has
occurred when the pump is running but no
concrete is discharging from the end of the
delivery system: immediately switch the engine
OFF consult your operating a d instruction
manual before proceeding.
Great care must be taken to clear a plug
as a dangerous condition exist, due to high
pressure build-up, inside the pump and delivery
system.
C A U T I O N
932
OWNER’S MANUAL
P/N 34536
Refer to the owner’s manual for safe
operating procedures.
Welding on the main frame or other
components may void warranty.
Refer to owner’s manual for proper use
of the piston lubrication sytems.
Failure to utilize the rear stabilizer leg
while pumping could damage axle.
W A R N I N G
98022
P/N 98022
quartz
310-537-3700
800-421-1244 NATIONWIDE
FAX: 310-537-3927
MAYCO INC 18910
WILMINGTON AVENUE CARSON,
CALIFORNIA 90746
513163
OIL PRESSURE BATTERY
OIL
TEMPERATURE
PUMPING CONTROL REMOTE
OUTLET
ENGINE HOURS
PUMP
ON
OFF REMOTE
ON
OFF
ON
START
IGNITION
SWITCH
THROTTLE
P/N 513163
