Bearing Installation
1. Install the bearing components on the crankshaft making full
contact with the back side of the crank disc as indicated the
symbol #. See Figure 25 below.
2. Install the bushing in the cam weldment and slide it onto the
crankshaft until contact is made with the bearing spacer.
3. Tighten the 3 allen head bolts “A” while exerting pressure
on the bushing towards the bearing spacer.
It is important that the Bearing
Assembly is installed properly.
MAINTENANCE (PUMP)

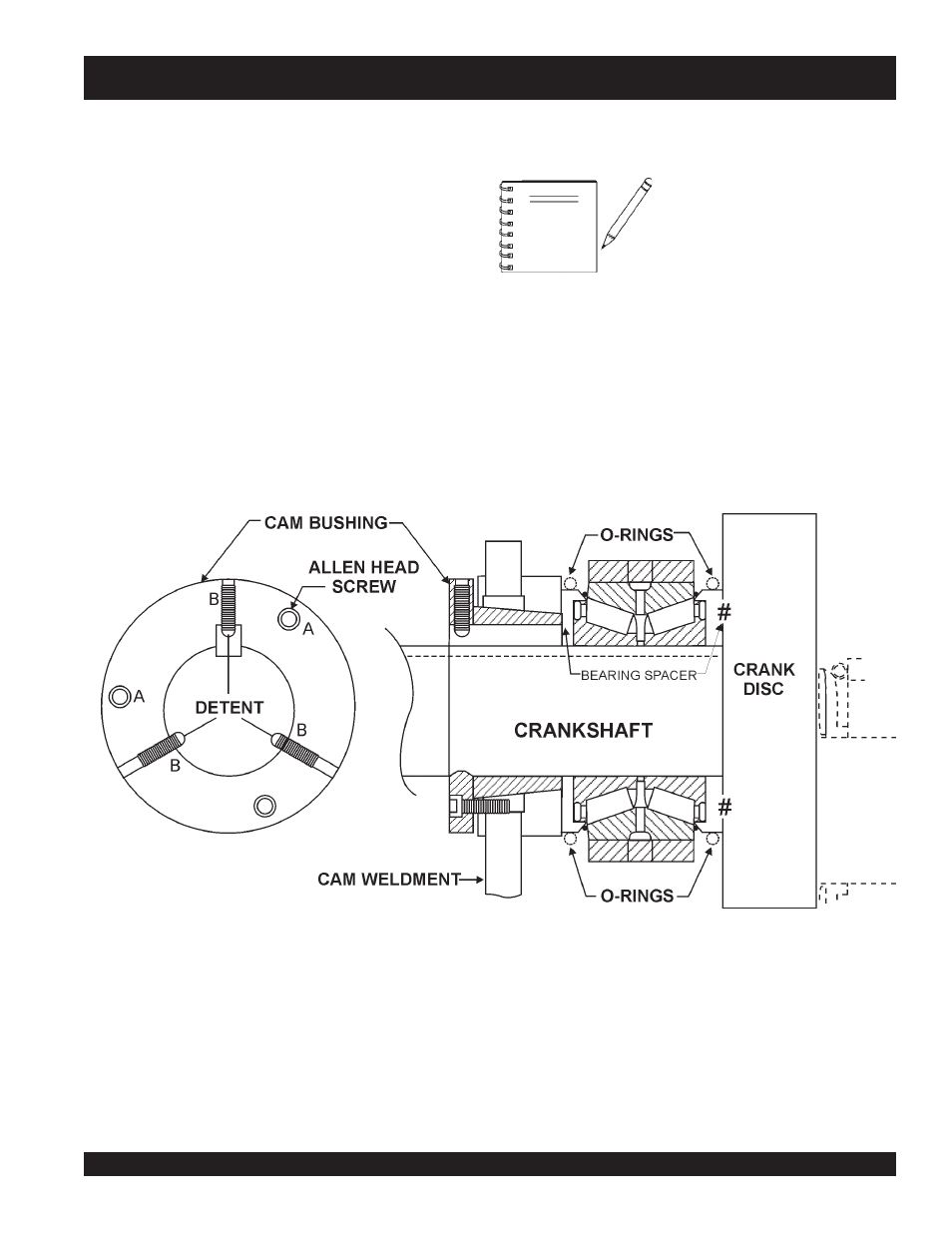

Figure 25. Bearing/Cam Bushing Installation
NOTE
