MAYCO C30HDZ PUMP — OPERATION AND PARTS MANUAL — REV. #12 (04/03/12) — PAGE 25

ENGINE COMPONENTS

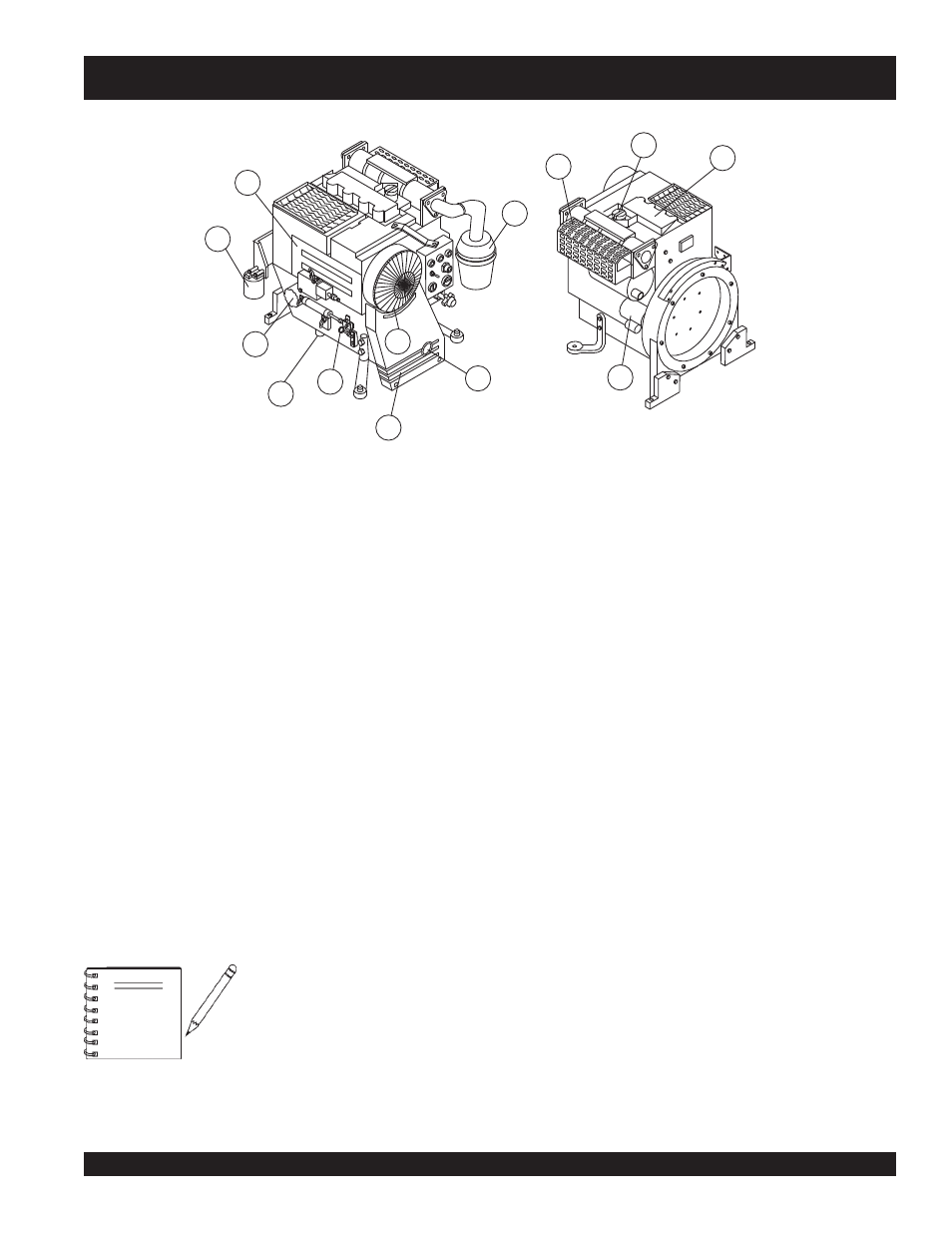

Figure 9. Deutz Model F2L01011F Basic Engine Components

Operating the engine without an air
filter, with a damaged air filter, or a
filter in need of replacement will allow
dirt to enter the engine, causing rapid
engine wear.

NOTE

Cooling Fan Blades – Make sure that the blades of the
cooling fan are not

bent or broken

. A damaged fan blade

can cause the engine to run hot and overheat.

Crankcase Drain Plug – Remove this plug to drain engine
oil from the crankcase. Replace with recommended engine
oil as specified in the maintenance section of this manual.

Fuel Pump/Fuel Filter – Replace or clean the fuel pump
or fuel filter as specified in the maintenance section of this
manual.

10. Muffler/Guard – DO NOT

touch the muffler when engine

is running. The muffler can become extremely hot, causing
severe burns. NEVER run the pump with the muffler guard
removed.

11. Dipstick – Remove this dipstick to determine if engine oil

is low. Maintain oil level at the "H "marking on the dipstick.

NEVER

run engine with low oil.

12. Oil Filler Port Cap – Remove this cap to add engine oil to

the crankcase. Fill with recommended type oil as specified
in the maintenance section of this manual.

REAR VIEW

FRONT VIEW

Figure 9 illustrates the location of the basic components
for the Deutz Model F2L01011F Engine. The function of
each component is described below:

Oil Filter – Replace this filter as recommended in the
maintenance section of this manual

Oil Pressure Switch – In the event of low oil level, this
switch will shutdown the engine.

Starter Motor/Solenoid – NEVER

allow concrete or any

foreign debris to come in contact with the starter motor/
solenoid.

Fan V-Belt – ALWAYS make sure that V-belt is properly
tensioned. A loose or defective V-belt can adversely affect
the performance of the pump.

Alternator – (not shown) Provides power to the electrical
system. Replace with only manufactures recommended
type alternator.

Air Cleaner – Prevents dirt and other debris from entering
the fuel system. Remove wing-nut on top of air filter
cannister to gain access to filter element. Replace with
only manufactures recommended type air cleaner.
