MTS Series 315 Load Frame User Manual
Page 20
Series 315 Load Frame
20
Installation
3. Attach lifting device(s).

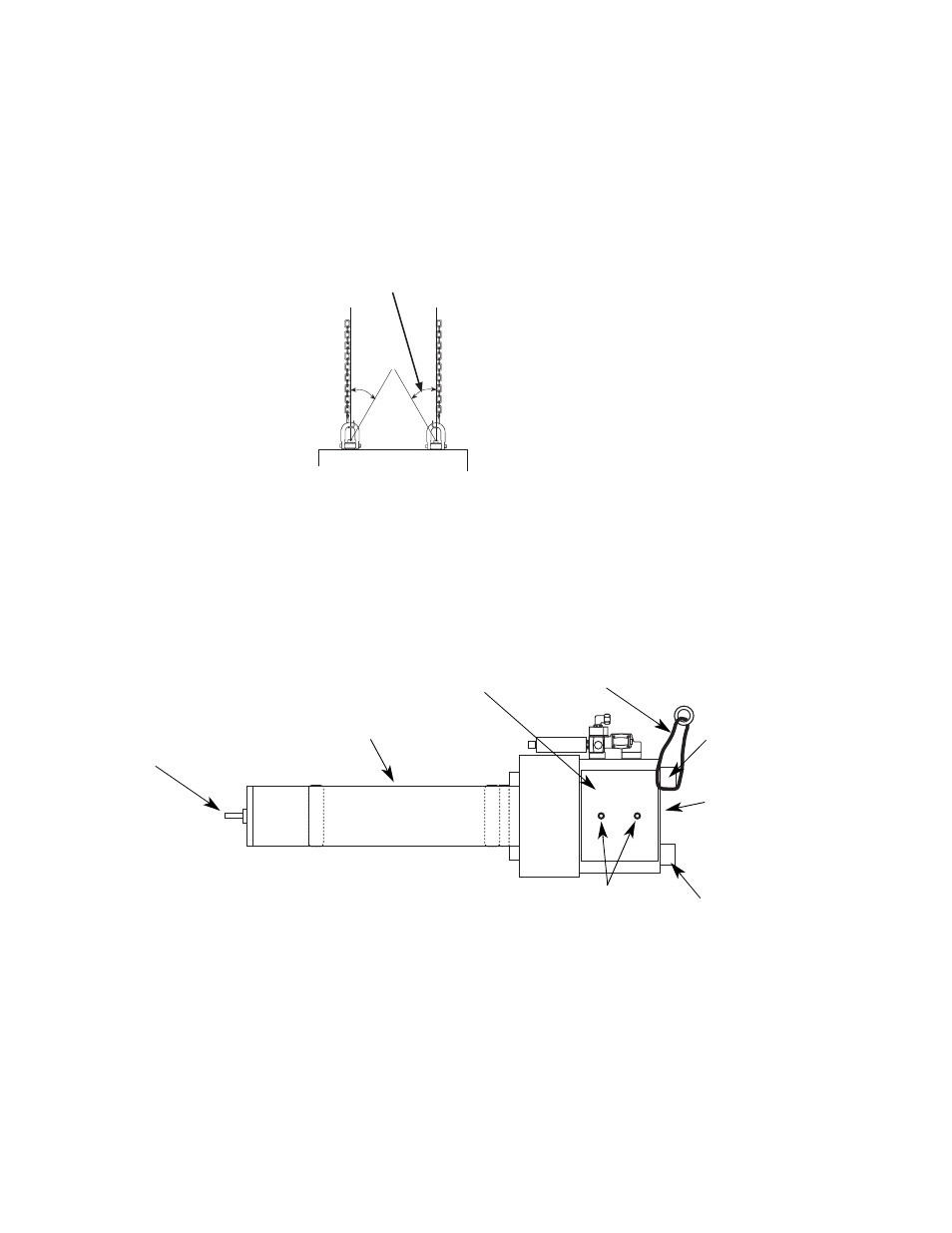

A. Attach lifting chain hooks (or equivalent devices) to the hoist
rings on top of the load frame. When attaching both hoist rings to
the same point, do not exceed a 30° chain angle as shown in the
following figure. Exceeding a 30° chain angle causes undesired
stress or strain on the eye bolts or hoist rings.
B.
Remove the side covers from the actuator.
C.
Attach lift straps around the ends of the upper leg as shown in the
following illustration.
D. Connect the slings to a second, separate lifting device.
E.
Ensure the attachment devices are secure.
30° Maximum
Hoist Ring
Side Cover
Supports
Load Frame
Upper Leg
Lower Leg
Lift Strap
Actuator
Side Cover
