Model 680.01 High-Temperature Grips 15
Model 680.01 High-Temperature Grip Accessories
The following accessories are available for the grips:
• Specimen adapters
• Attachment kits
• Cooling kits
• A hand-operated hydraulic pump.
Specimen adapters
Specimen adapters are available in various sizes for both button-end and threaded
specimens. Specimen adapters are supplied in sets of two and are designed to be
used with specimens machined in either SI International or U.S. Customary
dimensions.

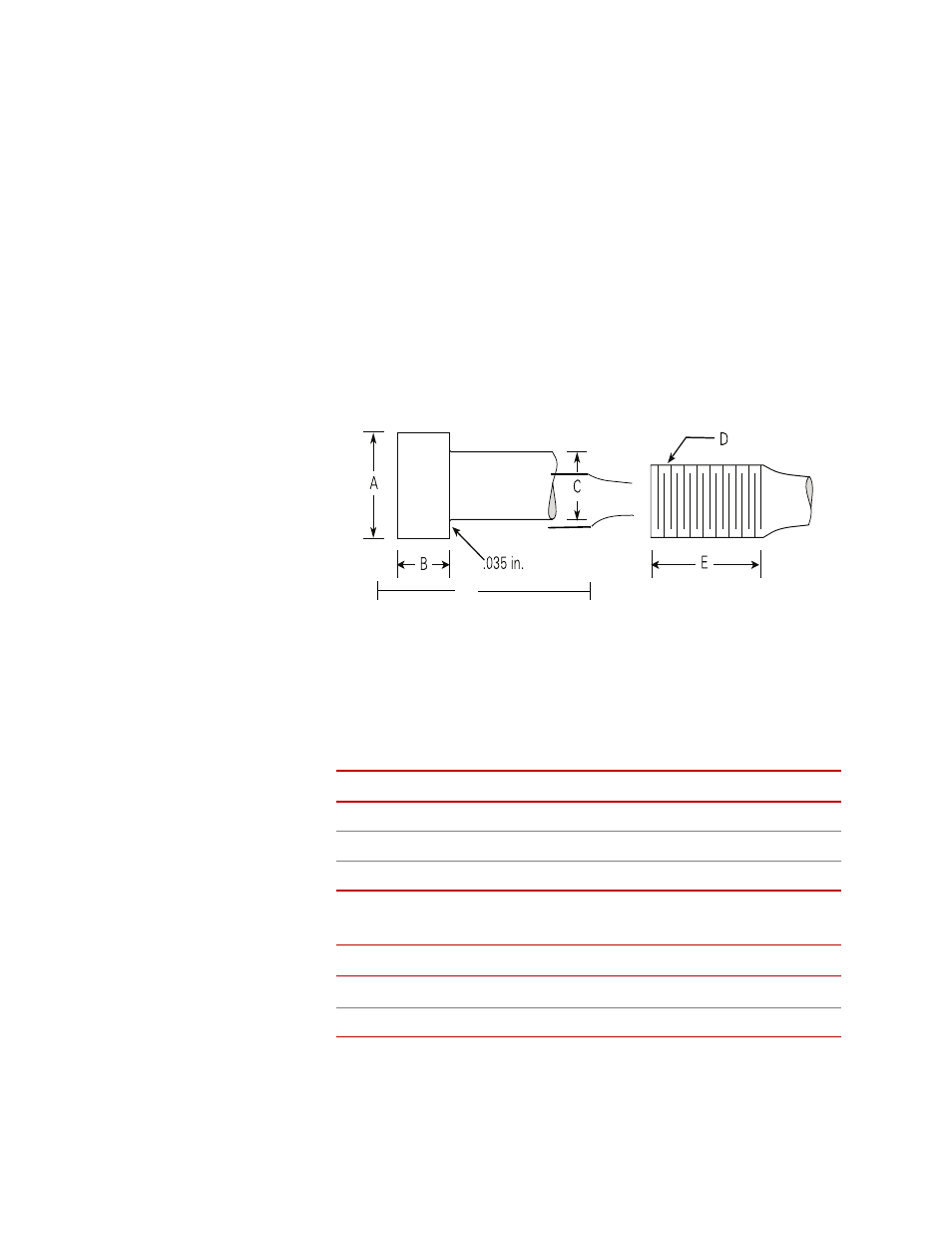

Specimen Dimensions (Grip-Ends Only)
For specimen dimensions which must be considered in order to meet an ASTM
(or any other) standard, refer to the appropriate standard. Special adapters, for
specimens not shown here, can be provided. Contact your local MTS sales
representative.
Attachment kits
Two attachment kits are needed to mount the grips in a load unit. One kit is
needed to mount a grip to the load unit’s force transducer; another kit is needed to
Button-End Dimensions
P ART N UMBER A B C
041-901-901 0.85 in 0.53 in 0.5 in, +.000, -.001
041-901-902 0.85 in 0.53 in 0.25 in, +.000, -.001
041-901-907 21 mm 13 mm 12 mm, +.00, -.02
Threaded Dimensions
P ART N UMBER D E
041-901-801 1/2 – 13 UNC 1.1 in
041-901-802 M12 x 1.75mm 28 mm
E
Button-End Specimens Threaded Specimens
max radius
