Mounting the 653 Furnace to the Load Unit
Series 653 High-Temperature Furnace
Installation
25
Mounting the 653 Furnace to the Load Unit
1. Assemble the bracket assembly to the rear of the furnace.
The furnace insulation inserts are fragile.
Improper installation can damage furnace installation inserts.
Exercise caution to avoid damaging the insulation inserts during installation.
2. Open the furnace and support it in the approximate proper position while
fastening the support bar and clamp to the load unit column.
3. Make sure that all of the socket head cap screws are sufficiently tightened to
support the furnace.

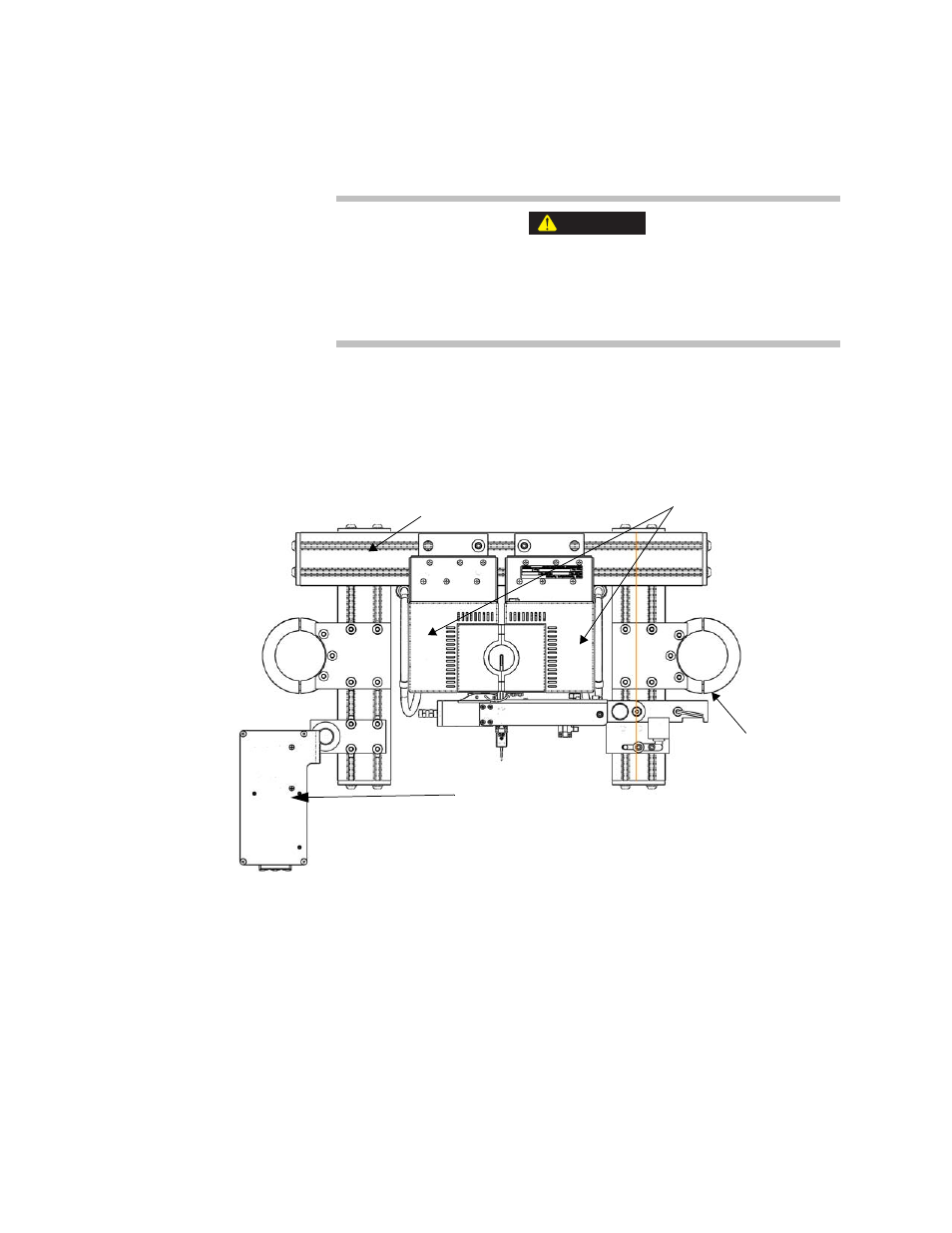

Load Unit Installation Using Bracket Assembly
CAUTION
Furnace
Halves
Clamp
Support Bar
Temperature Controller
