High temperature furnace body installation
FGW900 High-temperature Furnace Product Manual
Installation
17
High temperature furnace body installation
Furnace body installation steps:
1.
Unplug the furnace rotation axis from the hinge assembly of the furnace
2.
Put the furnace onto the bracket
3.
Align the high-temperature furnace hinge holes with the bracket mounting
holes;
4.

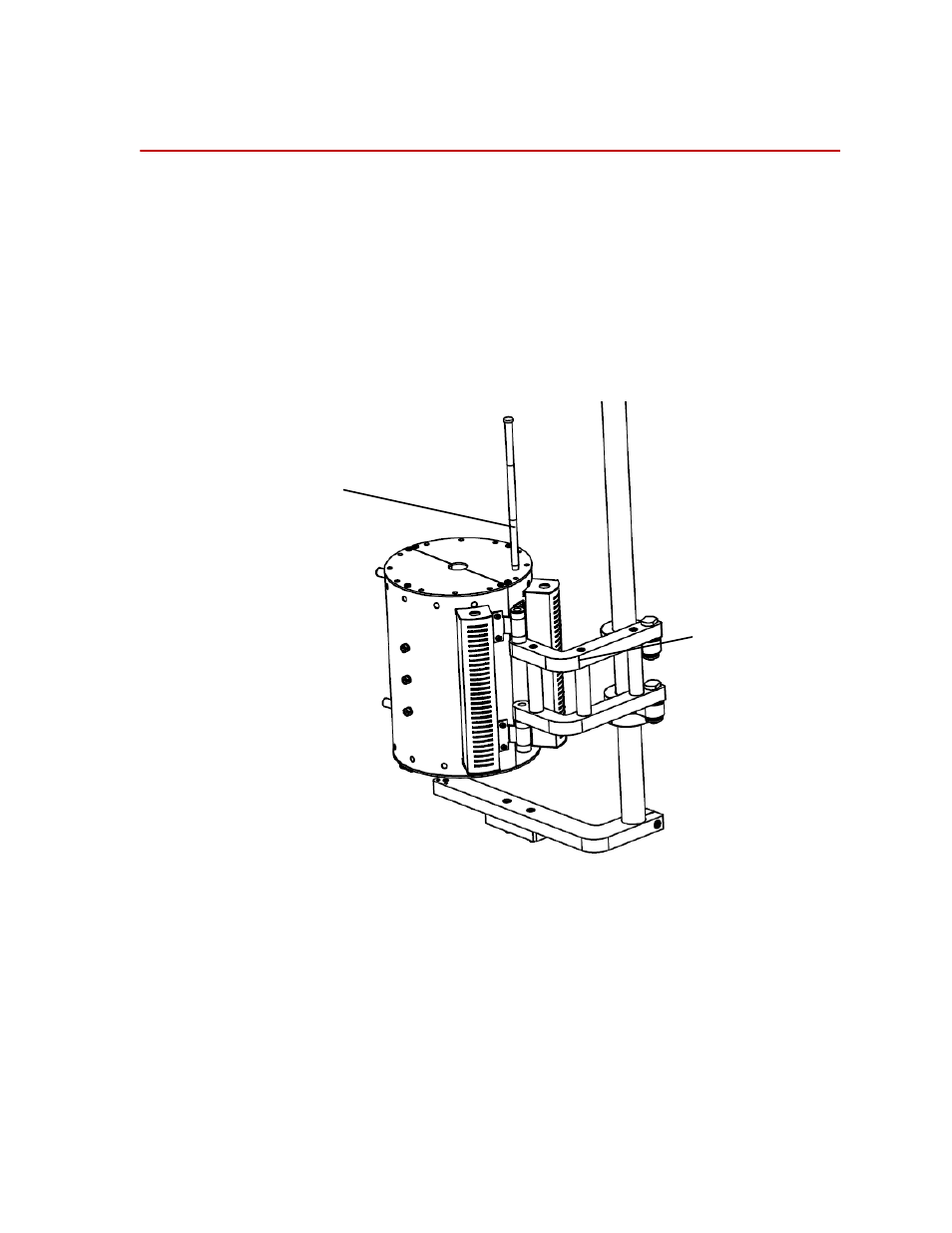

Downwards insert the rotation axis , connect the high temperature furnace
with the high-temperature bracket, as shown below:
5.
Furnace door switch installation
As the door switch has been adjusted in the right position in the vendor's plant,
users are not allowed to arbitrarily adjust the position when installing the furnace
for the first time. If need to replace the switch, you need follow the below steps:
Bracket
Axis of Rotation
