MK Diamond 24" Cutting Kit - Manual (Page 4)

24 Inch Cutting Kit Revision 02/01, Effective Date February 7, 2001 Page 4
24-INCH CUTTING KIT (Document Part Number 158364)

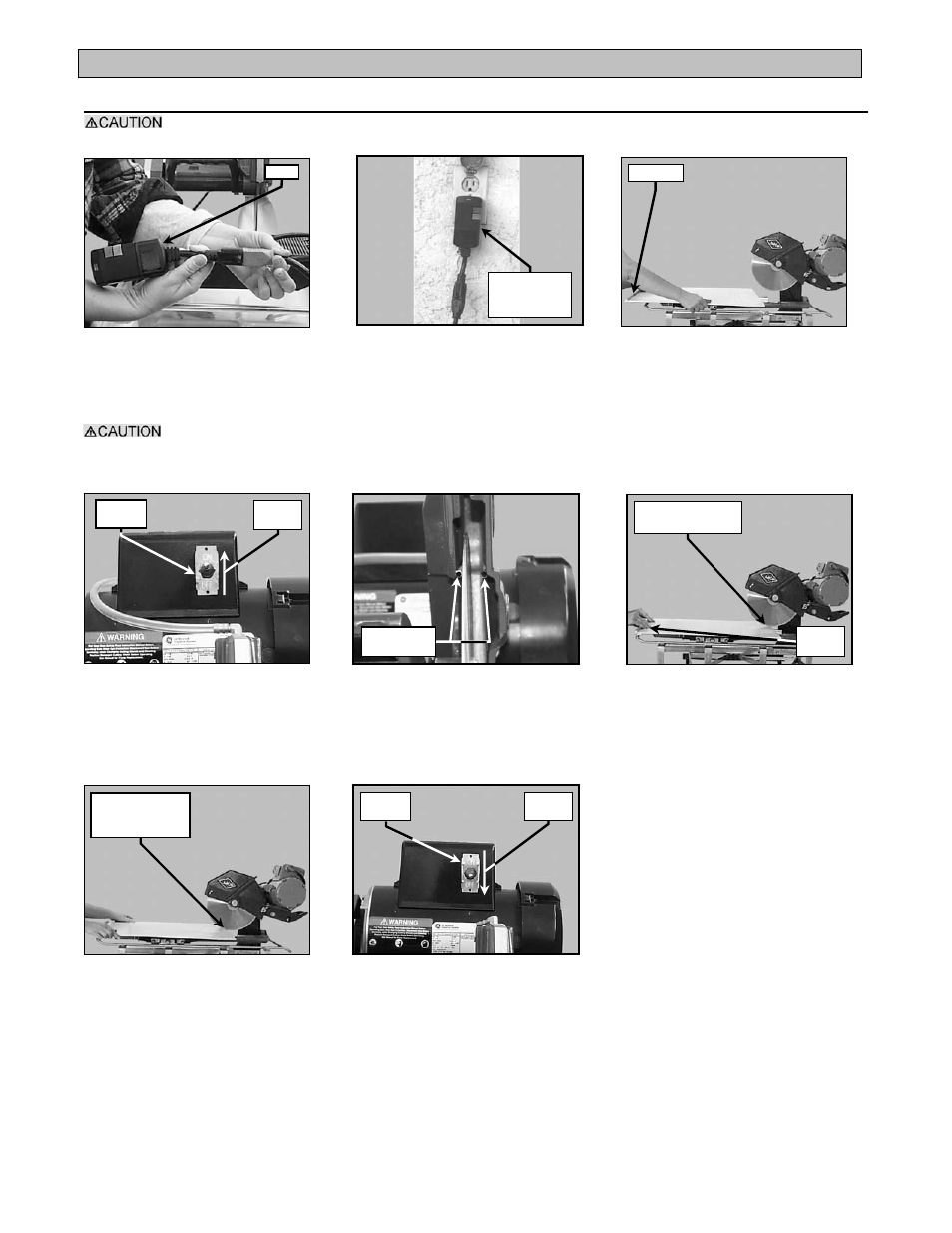

Placing And Cutting The Tile:
Follow all directions for setup, adjustment and operation found in the Tile Saw Owner’s Manual
before beginning the cutting operation.
Use care when cutting so as not to damage the Ruler/Stop.
NOTE: The first cut requires the Cutting Head to be placed on top of the tile and a Step Cut to be performed. A
Step Cut is performed by a series of small cuts of increasing depth.
NOTE:
MK Diamond Products, Inc. 1315 Storm Parkway Drive, Torrance, CA 90509-2803
Phone: 800-421-5830
(C)
Place the tile onto the 24-Inch
Frame against the backstop
and adjust the tile for the cut
Backstop
(D)
Turn the motor ON
On
Position
ON/OFF
Switch
Off
Position
ON/OFF
Switch
(H)
Turn the motor OFF when
work is complete
(A)
Plug MK-101 into the GFCI
(B)
Plug the GFCI into the
Power source
GFCI
GFCI Plugged
Into Power
Source
(F)
Position the piece to be cut onto
the 24-inch Cutting Kit Frame
and perform the initial cut
(G)
Rotate the tile 180
°
on the 24-
inch Cutting Kit Frame to
complete the cut
(E)
Verify proper cooling flow on
both sides of the blade
Cooling Flow
Points
First pass will cut
one-half of the tile
Hold in
Position
Second pass will
complete the
complete cut
