MK-6000 SaW SPeCiFiCationS

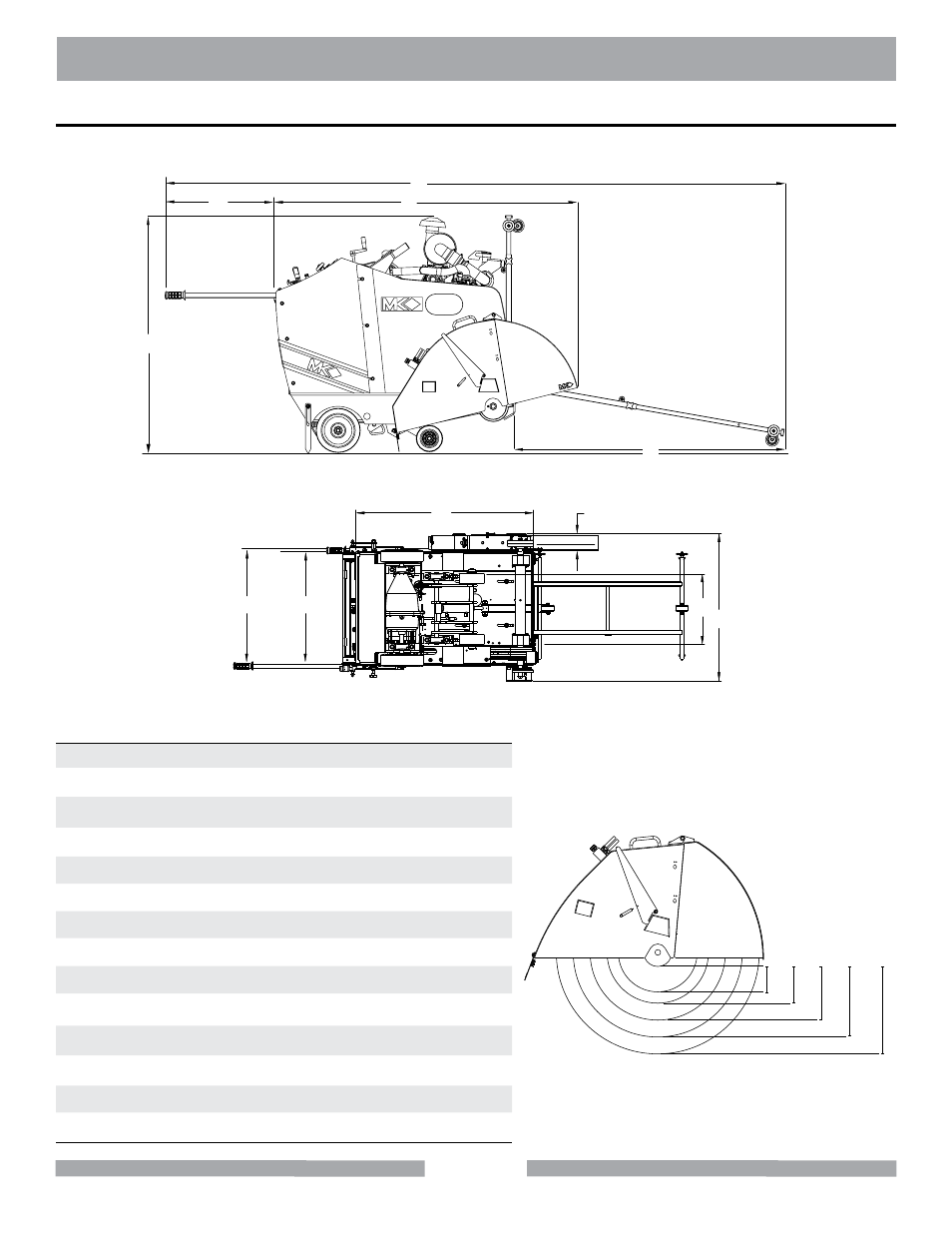

SaW DiMenSionS
item Description inches (mm)
a height 53-1/2" (1,359)
B Minimum Saw Length 70" (1,778)
C Maximum Overall Length 140-1/2" (3,568)
D handle Extension 25" (635)
e Maximum Pointer Extension 62" (1,574)
F Frame Width 31-1/2" (800)
G Frame Length 50" (1,270)
H Saw Width 39-1/2" (1,010)
J Outside to Outside Wheel Width - Front 28" (711)
K Outside to Outside Wheel Width - Rear 32" (812)
L Blade to Wall 2-1/4" (57)
M Wheel Base Length 20-1/2" (570)
n Maximum Overall height (Pointer Up) 56" (1,422)
G
K F J
L
H
4.75" 14"
20"
26"
30"
7.5" 10.5" 12.5" 15"
36"
B D
C
A
E
