MK Diamond BX-4 - Manual (Page 34)

BX-4 34
MISTING SYSTEM OPERATION, MAINTENANCE & TROUBLESHOOTING

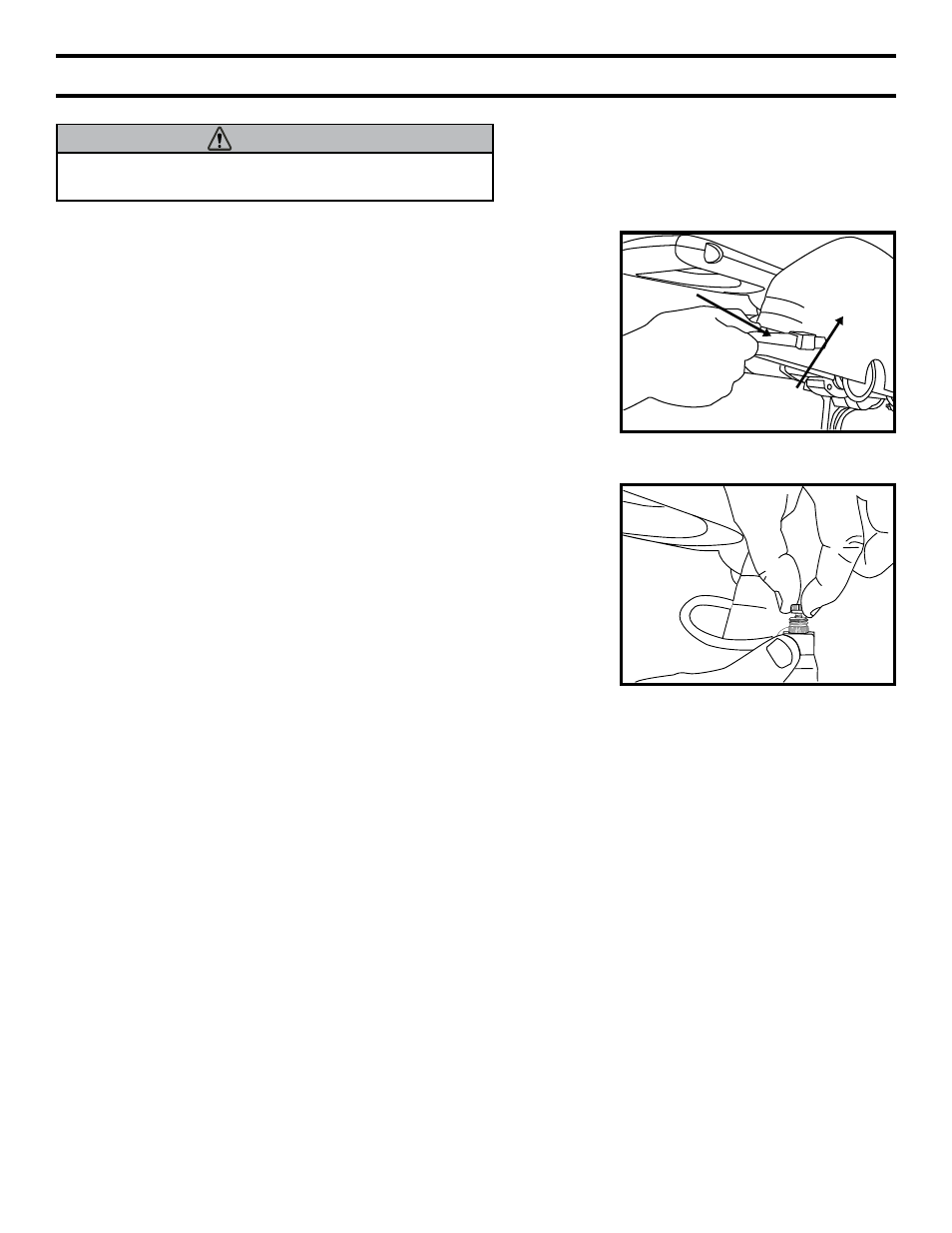

REPLACEMENT OF NOzzLES:
Step A: Remove tube cover (1) by loosening 2 screws
on both side of blade guard with a phillips screw driver.
Step B: Remove blade.
Step C: Remove 2 retaining rings which hold nozzles in
place from the inner side of blade guard.
Step D: Loosen nozzles by rotating counter-clockwise.
Step E: Install new nozzles. Push fittings thru holes in
the blade guard & secure fittings by reinstalling retaining
rings from the inner side.
Step F: Re-install tube cover (1). Secure tube cover with
phillip screws.
Disconnect unit from power supply.
CAUTION
1
Blade
Guard
