BX-4 28
6. PROTECTIVE WOODEN STRIP REPLACEMENT:
The protective wooden strip is provided to protect the Movable
Cutting Table from damage during operation. Over time, the
wooden strip will become grooved from use. A grooved wooden
strip will not support masonry during cutting, causing the blade
to “break through” the piece instead of performing a smooth cut
(MK Diamond Part # 156427).

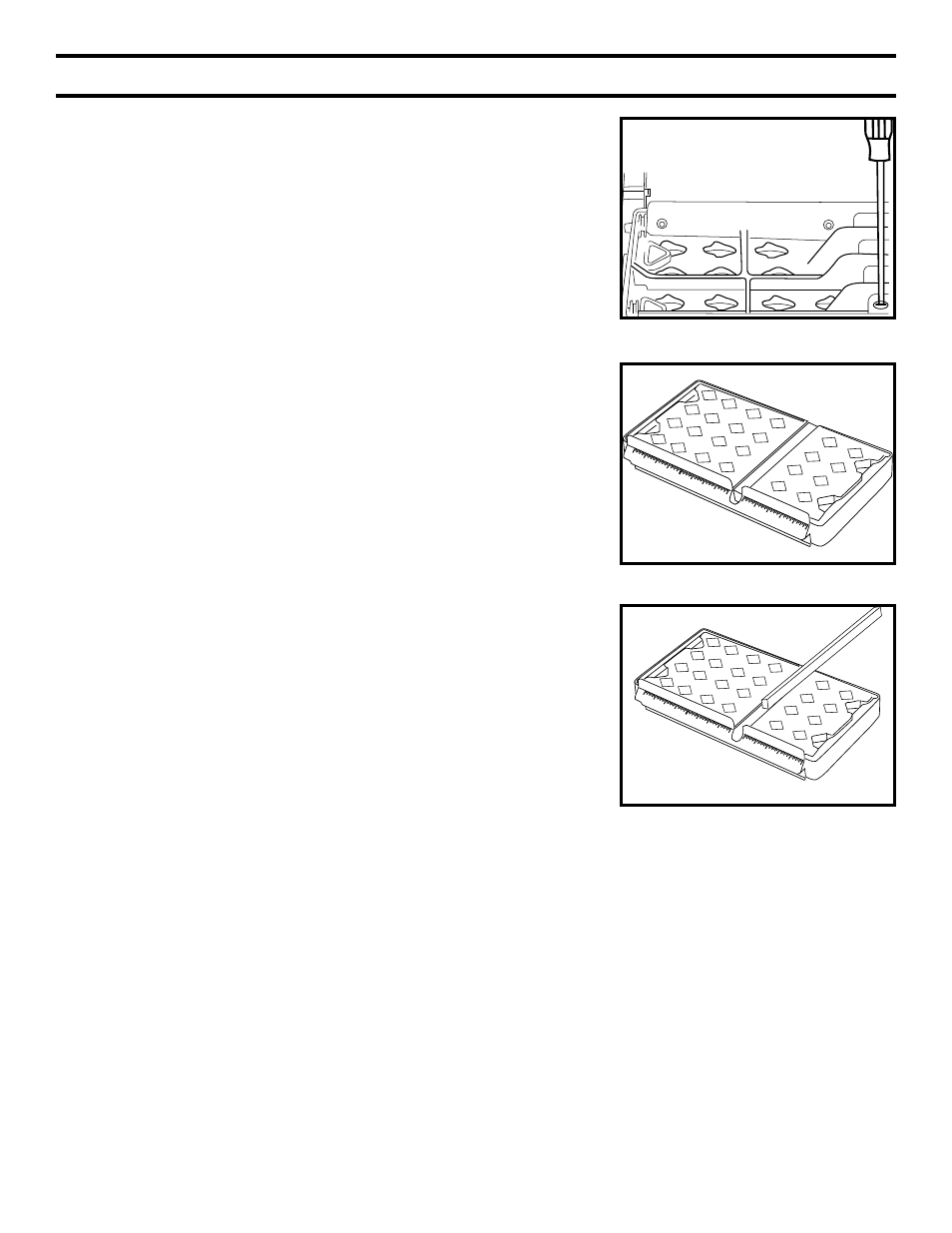

Place Movable Cutting Table on work bench with Roller Wheels
facing upwards.
• Using a Phillips Screwdriver, remove the two Protective
Wooden Strip Retaining Screws.
• Replace worn Strip with new Protective Wooden Strip.
Secure with two Retaining Screw with Phillip Screwdriver.
• Install Movable Cutting Table. See Setup,
Adjustment and Operation section.
MAINTENANCE & TROUBLESHOOTING
