MK-1080 PAVER SAW MAINTENANCE

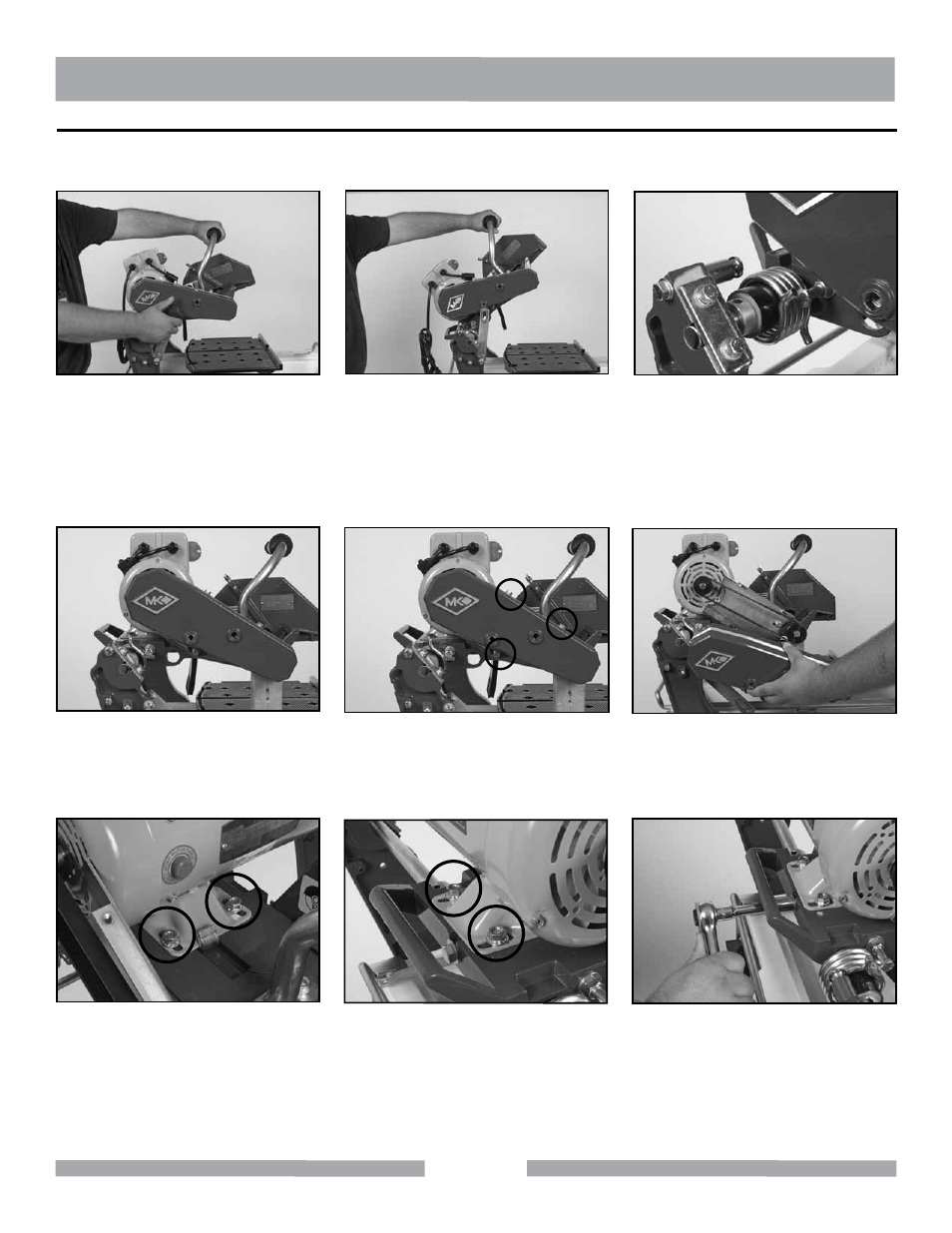

ADJUSTING BELT TENSION
(A)
While holding the Cutting Head Handle
down to counteract spring tension,
loosen the Cutting Head Lock Screw
and allow the Cutting Head to gently
raise to its highest point.
(D)
Lower Cutting Head onto suitable
wooden block.
(G)
Loosen the two front nuts securing
Motor to Cutting Head.
(H)
Loosen the two back nuts.
(I)
Tighten belt by turning tensioning
bolt clockwise or loosen by turning
counterclockwise.
(E)
Remove 3 screws that hold Outer
Belt Guard.
(F)
Remove Belt Guard.
(B)
While still holding the Cutting Head
Handle, remove the Cutting Head Lock
Screw and raise the Cutting Head until
the spring tension is released.
(C)
Move Spring until it is disengaged
from Bolt on Cutting Head and
Holder on Post.
Remove Blade. Refer to the “Installing the Blade” section.
