MK-1080 PAVER SAW SET-UP
CONVEYOR CART
1. The Conveyor Cart is secured for shipping by plastic ties. Remove these plastic ties before use.
2. Ensure that the Cart runs smoothly along the tracks of the Inner Frame.

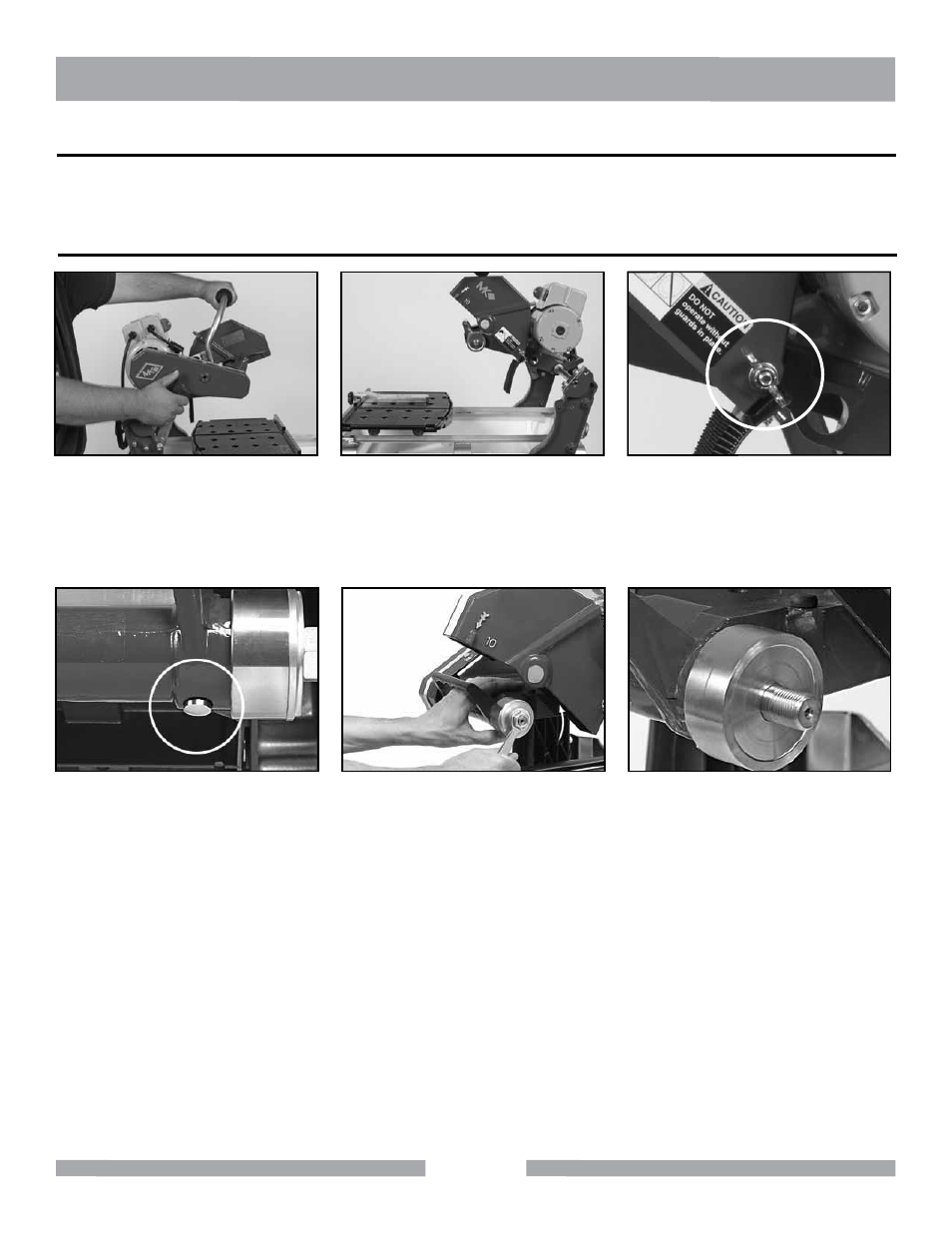

INSTALLING THE BLADE
(A)
While holding the cutting head handle
down to counteract spring tension,
loosen the cutting head lock screw and
allow the cutting head to gently rise to
its highest point.
(B)
Slide the cutting table to the front of
the saw and raise the blade guard.
(C)
It may be necessary to adjust the
tightness of the blade guard wing nut.
When properly tightened, the blade
guard will move relatively easily and
also stay in the raised position.
(D)
Locate the shaft lock push button on
the underside of the cutting head.
(E)
Depress the shaft lock push button and
rotate the arbor shaft till the button locks
the arbor shaft in position. If necessary,
use the blade wrench to turn the retaining
nut counterclockwise to loosen from the
arbor shaft.
(F)
Remove the nut and slide the outer
flange (I) from the arbor shaft.
