MK-1080 PAVER SAW

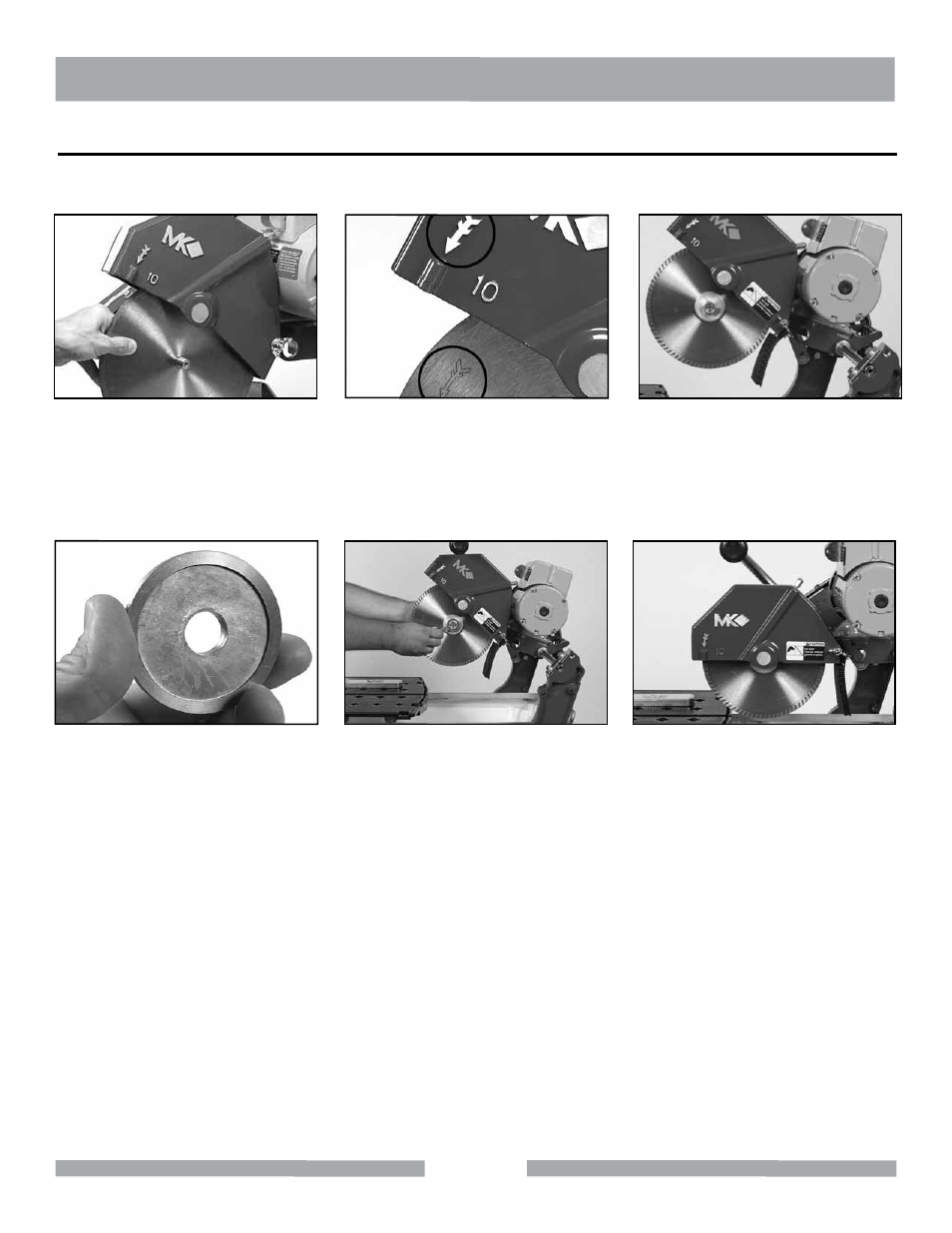

SET-UP

(G)

Install the diamond blade onto

arbor shaft.

(H)

The direction of rotation arrow on the

blade matching the direction of the ar-

row on the blade guard.

(I)

Verify that the blade is seated flat

against the inner flange of the

blade shaft.

(J)

Slide the outer flange back on the

arbor shaft with the recessed side

of the flange facing the blade.

(K)

Install the retaining nut on the arbor

shaft. Depress the shaft lock button

and use the blade wrench to tighten the

retaining nut in a clockwise direction.

(L)

When installing the retaining nut, do

not “cross-thread” and do not over

tighten. Lower the blade guard back

down into the cutting position.

INSTALLING THE BLADE
