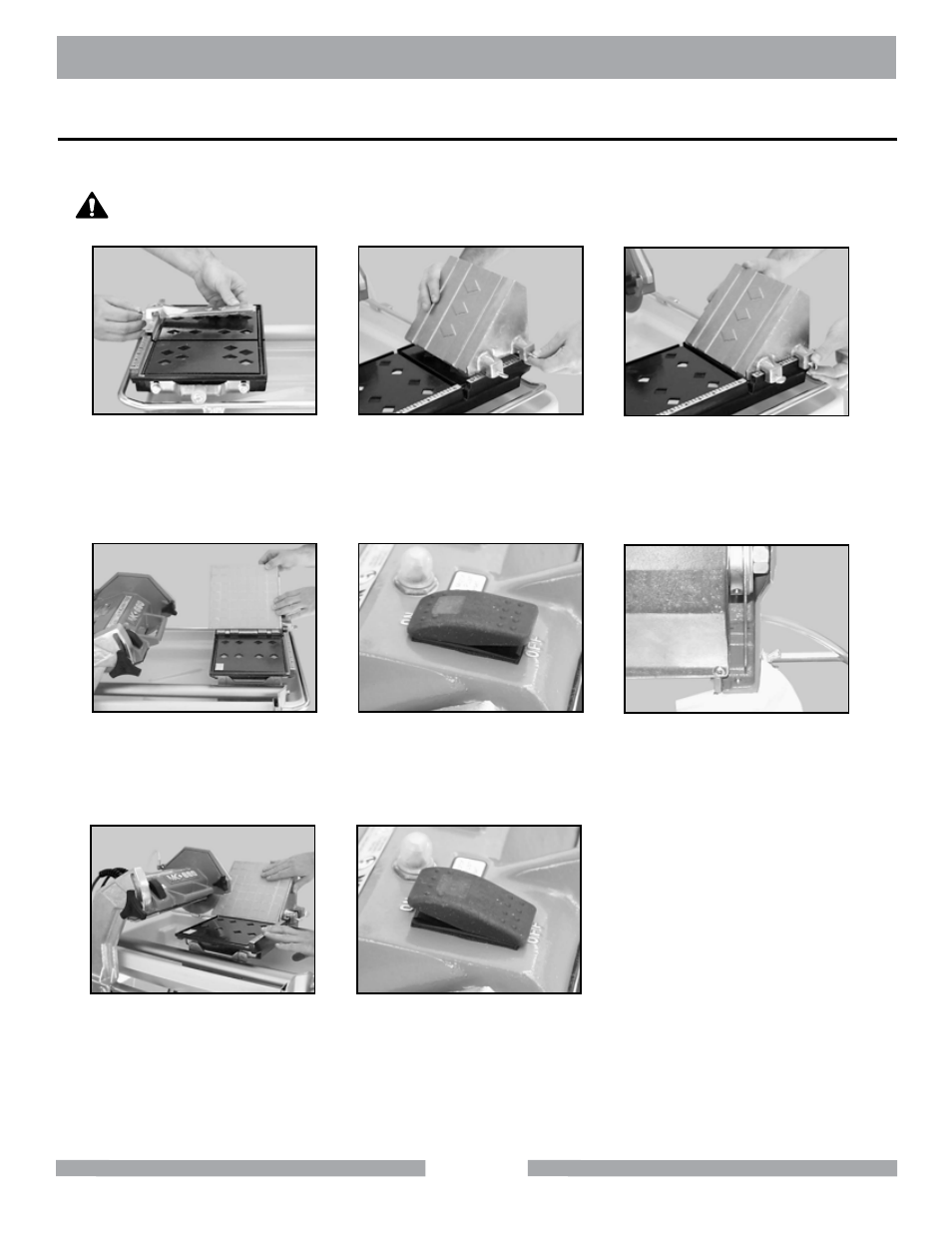

MK-660 tile saw OPeRatiON
45° MiteR CUttiNG
NOte: To cut 45º Miters, the 45º Bullnose Miter Guide (MK Diamond Part No. 153201-MK) should be
used.
DO NOt FORCe tHe tOOl. It will do the job better and safer at the rate for
which it was designed.
CaUtiON
(A)
Remove the adjustable Cut-
ting Guide
(B)
Place the 45° Bullnose Miter
Guide on the Ruler/Stop
(C)
Position the 45° Bullnose Miter
Guide and tighten the retaining
thumbscrew
(D)
Position the tile on the 45°
Bullnose Miter Guide and the
Ruler/Stop
(E)
Turn the motor ON
(F)
Verify cooling flow on both sides
of the blade (See Maintenance
Section to adjust flow)
(G)
Perform the cut
(H)
Turn the motor OFF when
work is complete
