CLASSIC RIB
®
 Finishes: MS Colorfast45 ® and Acrylic Coated Galvalume ®
 Corrosion Protection: AZ55 per ASTM A 792 for unpainted Galvalume ®
AZ50 per ASTM A 792 for painted Galvalume ®
G60, G90 or G100 per ASTM A 653 for Galvanized
 Gauges: 29 ga and 26 ga standard; 24 ga optional
 36" panel coverage, 3 /4" rib height
 Panel Length: Minimum: 5'; Maximum: 45' recommended
 Exposed fastened, low profile roof and wall system
 Bell-top trapezoidal rib on 9" centers
 Minimum roof slope: 3:12
PANEL OVERVIEW
 UL 2218 Impact Resistance - Class 4
 UL 790 Fire Resistance Rating - Class A, per building code
 UL 263 Fire Resistance Rating - per assembly
 UL 580 Uplift Resistance - Class 90 Constructions: #560, 584
 ASTM E 455, Diaphragm Capacity
 Texas Wind Storm - Evaluation RC-161
 2010 FBC Approvals - FL9482.2, FL9482.3, 10999.3, FL 10999.4, FL14645.7, FL14645.8,
FL14645.9 and FL15478.2
 Miami-Dade County, Florida NOA 11-0617.02
 Miami-Dade County, Florida NOA 10-0427.04 - Roof
TESTING AND APPROVALS
36" Coverage
Anti-Siphon Groove
9"
3 /
4
" 3 /
8
"
3 1 /
8
" 2 3 /
4
"
5 /
8
"
C
1 3 /
4
"

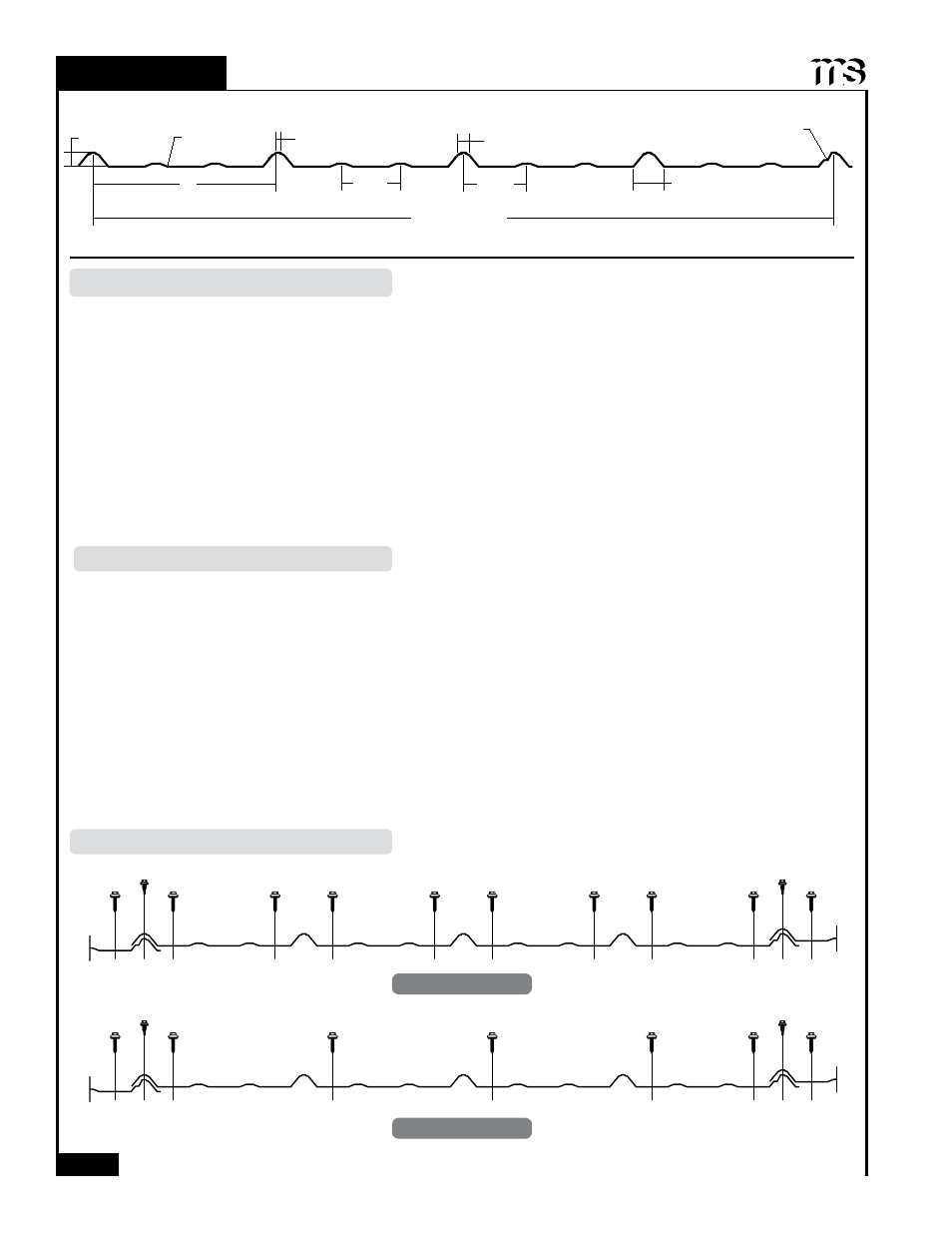

PANEL INFORMATION
Field of Panel
End of Panel
FASTENING PATTERNS
