CLASSIC RIB

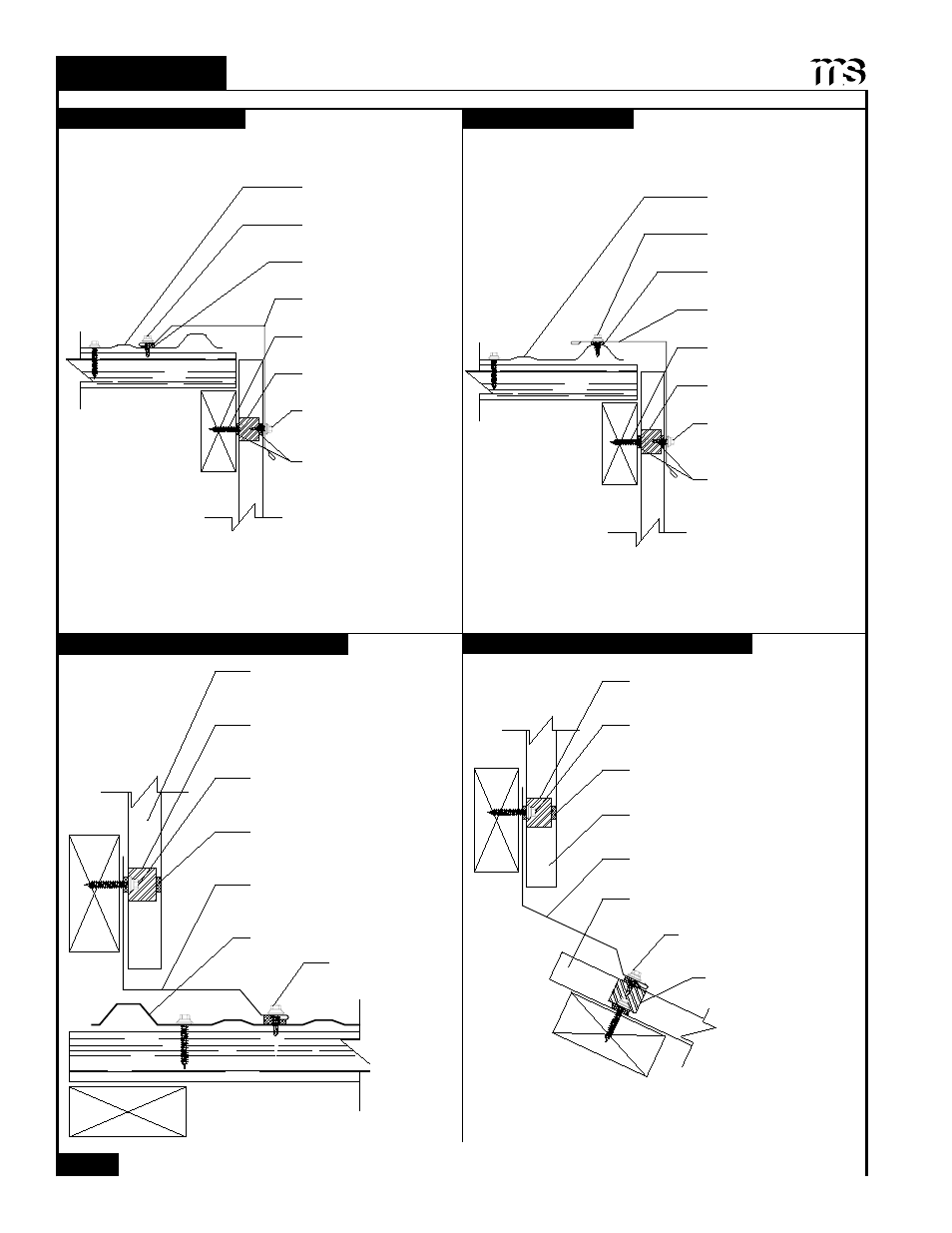

® POST FRAME BUILDING DETAILS
GABLE TRIM DETAIL RAKE TRIM DETAIL
UNIVERSAL SIDEWALL DETAIL UNIVERSAL ENDWALL DETAIL
ROOF PANEL
STITCH SCREW
(EVERY RIB*)
OUTSIDE CLOSURE
TAPE SEALANT
TAPE SEALANT
FASTENER
GABLE TRIM
ROOF PANEL
STITCH SCREW
(EVERY RIB*)
OUTSIDE CLOSURE
STITCH SCREW
(1'-0" O.C.)
TAPE SEALANT
TAPE SEALANT
FASTENER
GABLE TRIM
WALL PANEL
ROOF PANEL
INSIDE CLOSURE
FASTENER
TAPE SEALANT
UNIVERSAL SIDEWALL
STITCH SCREW
(EVERY RIB*)
INSIDE CLOSURE
FASTENER
TAPE SEALANT
UNIVERSAL ENDWALL
OUTSIDE CLOSURE
WALL PANEL
STITCH SCREW
(1'-0" O.C.)
ROOF PANEL
STITCH SCREW
(1'-0" O.C.)
* FASTENER SPACING TO BE 8" - 12" O.C.
* FASTENER SPACING TO BE 8" - 12" O.C. * FASTENER SPACING TO BE 8" - 12" O.C.
