© Metal Sales Manufacturing Corporation / Subject to change without notice / Effective 6/14

25

CLASSIC RIB

®

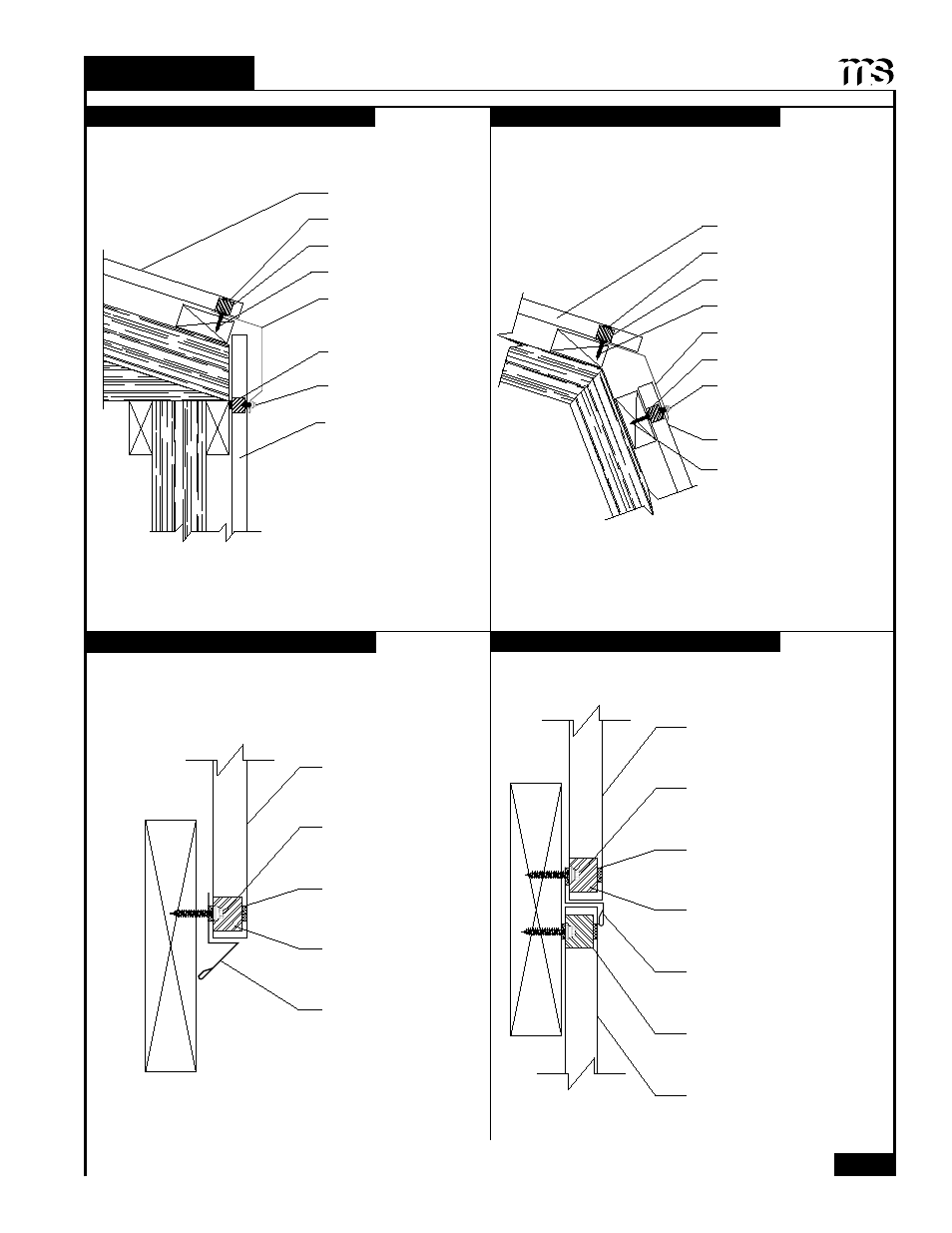

POST FRAME BUILDING DETAILS

EAVE MOLDING DETAIL

UNIVERSAL GAMBREL DETAIL

ANGLE BASE DETAIL

DOUBLE ANGLE DETAIL

ROOF PANEL

INSIDE CLOSURE
FASTENER

TAPE SEALANT

EAVE MOLDING

STITCH SCREW

(EVERY RIB*)

OUTSIDE CLOSURE

WALL PANEL

ROOF PANEL

INSIDE CLOSURE

FASTENER

TAPE SEALANT

GAMBREL FLASHING

STITCH SCREW

(EVERY RIB*)

OUTSIDE CLOSURE

ROOF PANEL

FASTENER

WALL PANEL

INSIDE CLOSURE

TAPE SEALANT

FASTENER

ANGLE BASE

WALL PANEL

INSIDE CLOSURE

TAPE SEALANT

FASTENER

DOUBLE ANGLE

WALL PANEL

OUTSIDE CLOSURE

* FASTENER SPACING TO BE 8" - 12" O.C.

* FASTENER SPACING TO BE 8" - 12" O.C.
