Putting into operation
3. Putting into operation
3.1 Assemble the exhaust air unit
Warning!
Danger to life due to electric shock. When assembling the exhaust
air unit, the chamber must not be connected to the power supply.

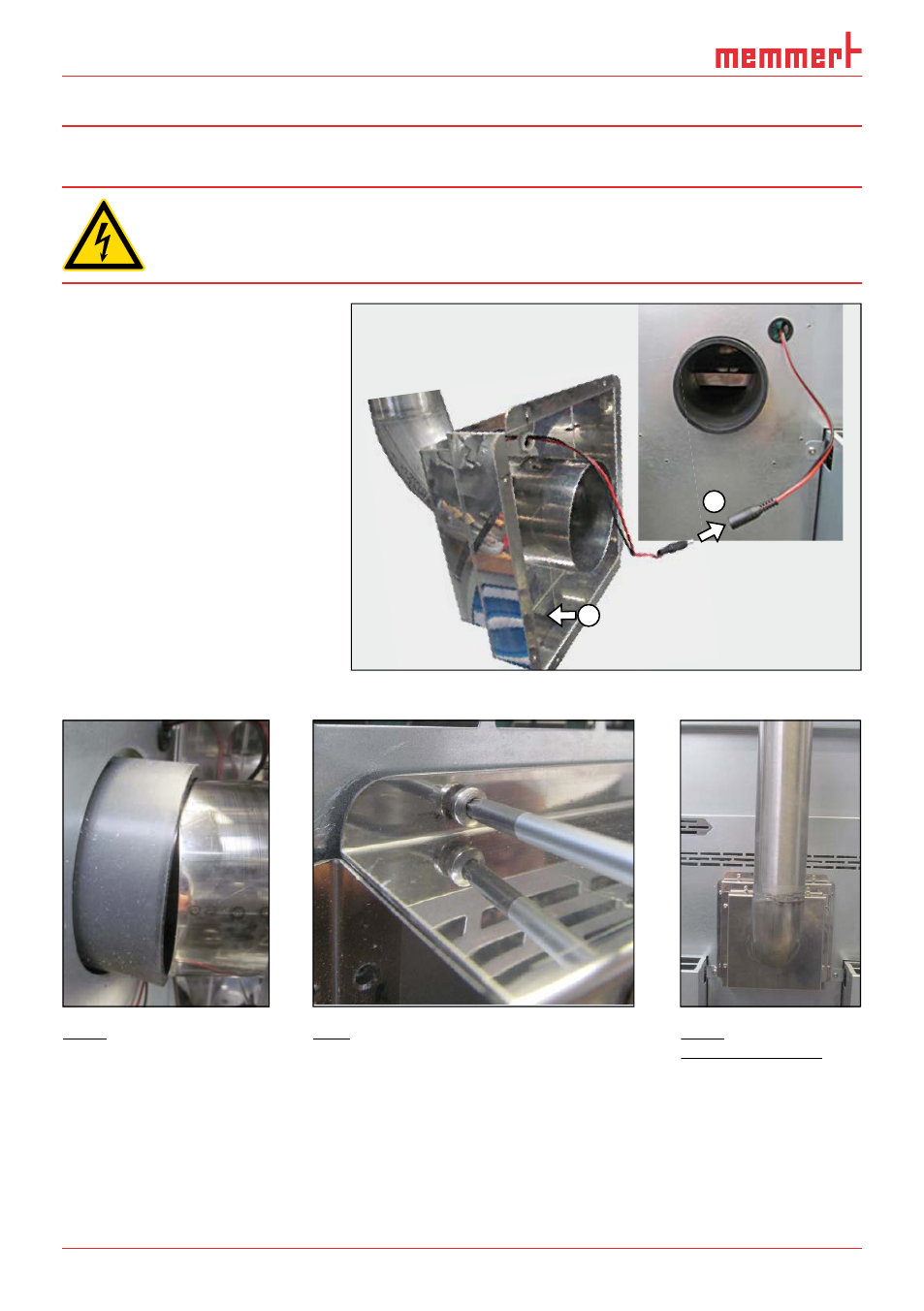

1. Plug the connector of the
exhaust air unit into the
cable socket on the back of
the appliance (Fig. 3, 1).
Stow away the cable in the
housing of the exhaust air
unit (2).
2. Insert the exhaust air unit
with the pipe socket into
the entry port in the back
of the chamber (Fig. 4) and
attach it to the chamber
with the eight Torx screws
included (Fig. 5). Make sure
that the exhaust pipe points
upwards (Fig. 6).
Fig. 4 Insert the
exhaust air unit in the
Fig. 4 Fig. 4
back of the chamber
Fig. 5 Screw the exhaust air unit
tight
Fig. 5 Fig. 5 Fig. 6
The exhaust pipe
Fig. 6 Fig. 6
needs to point up
The exhaust pipe The exhaust pipe
3. Remove the three silicone plugs that are located at the centre and at the lower left and
right of the interior.
1
2
Fig. 3 Connect the leads
