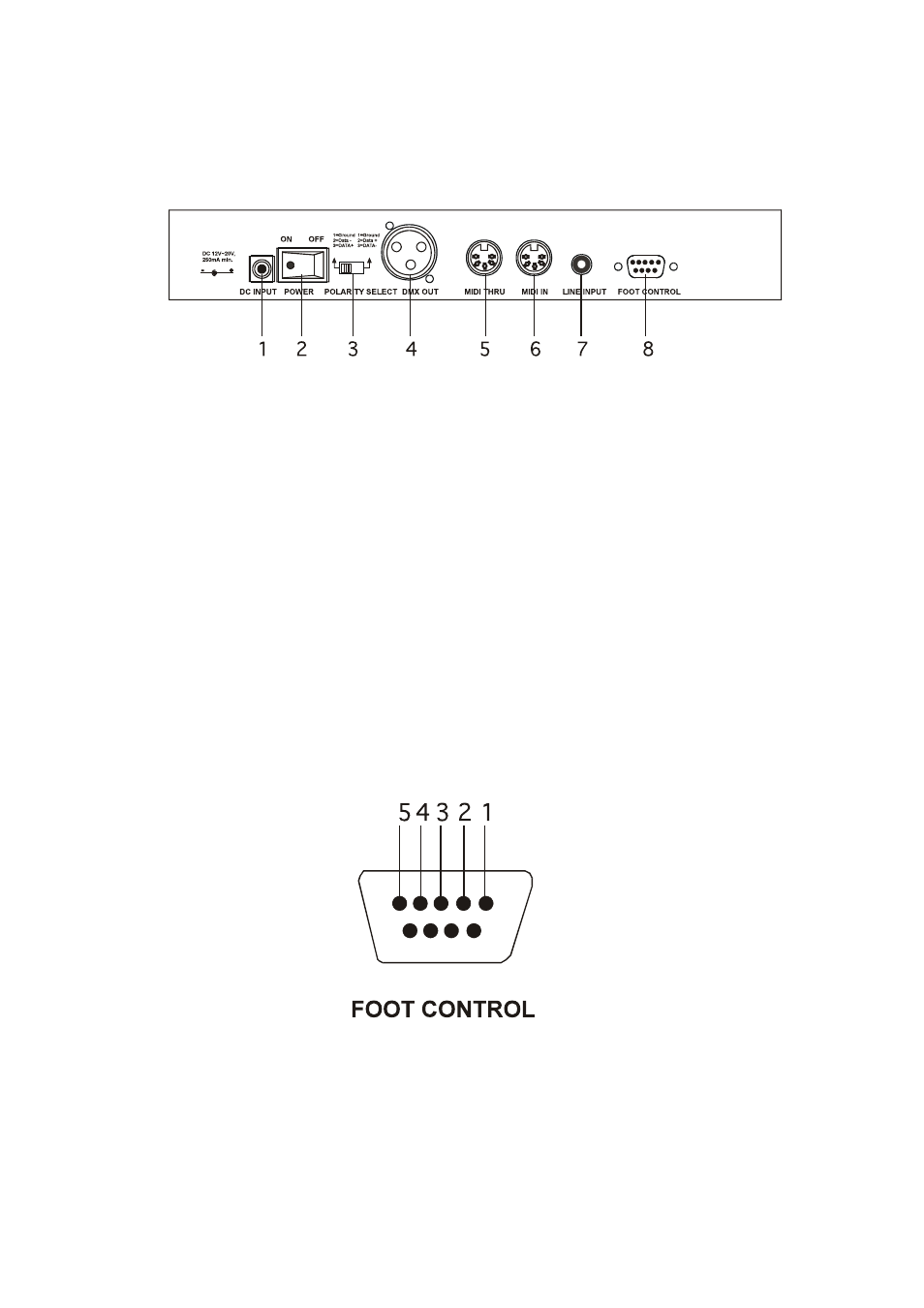

REAR SIDE
1. DC input
DC 12V~20V,250mA min, connect to AC outlet via recommended AC/DC adaptor.
2. POWER switch
Press to turn the power no/off
3. DMX polarity selector
Slide to select the polarity arrangement for DMX output.
4. DMX output
96 DMX channel output
5. MIDI THRU
Transmit MIDI data received on the MIDI IN connector.
6. MIDI IN
Receive MIDI data.
7. AUDIO line input
Line in the music rhythms ranged from 100MV to 1Vpp. If it is connected , the built-in microphone is
disabled, and when it is not connected, the microphone is enabled.
8. FOOT CONTROL
Use to connect to foot controller for remote control.
PIN FUNCTION
1 STEP UP
2 PATTERN UP
3 STAND BY
4 FULL ON
