ASSEMBLY GUIDE (Wheels - Parts D)

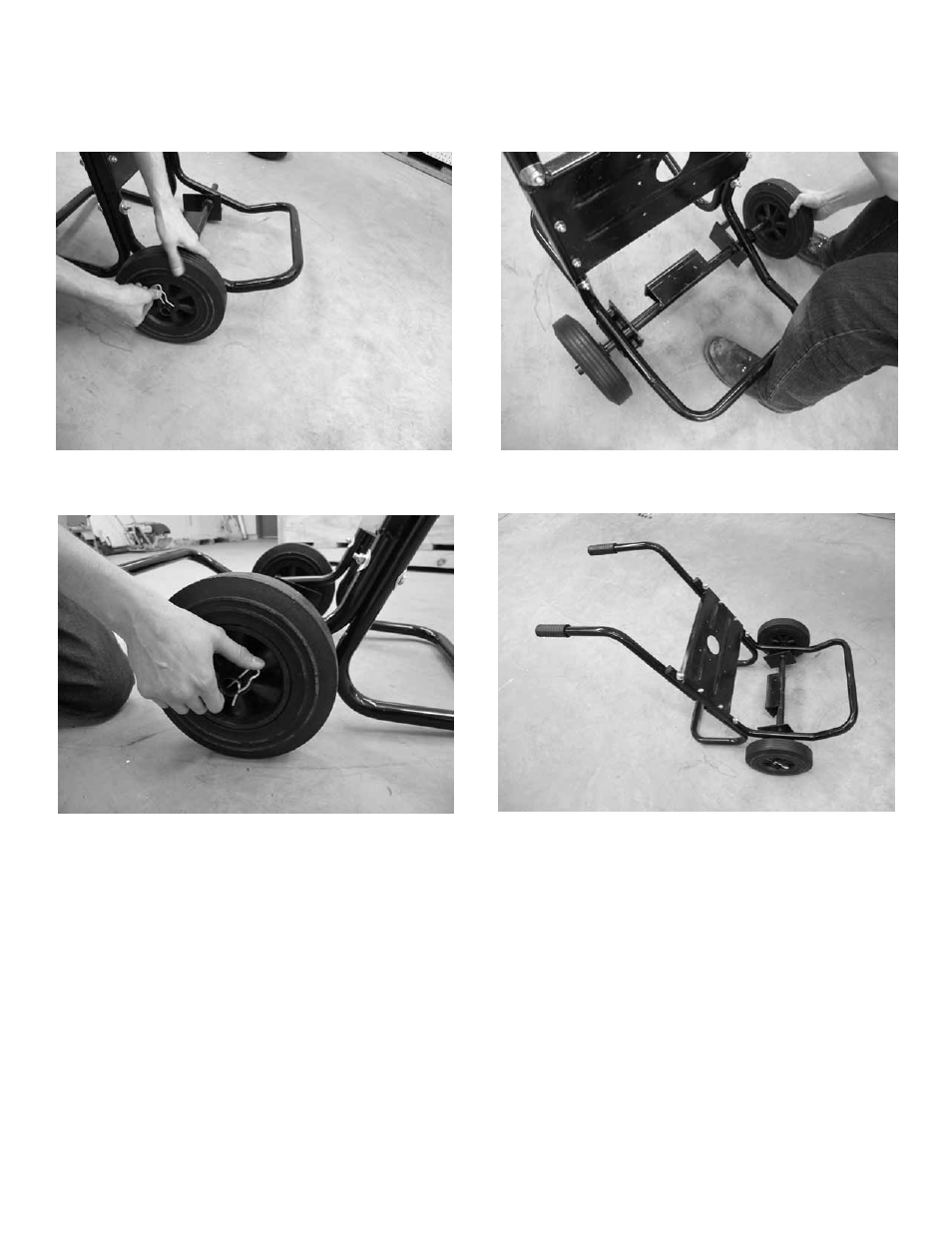

Insert wheel and fasten with cotter pin. (Hardware 3)

Repeat step for other side.

Finished frame with wheels.

5. Connect wheels to the drum frame assembly. Hardware required: SET 3
