ASSEMBLY GUIDE
1A
1A M8 x 70mm Hex Bolts (x2)
M8 Curved Washers (x2)
M8 Lock Nuts (x2)
M8 Washers (x2)
1A
1B
2A
2A) M8 x 70mm Hex Bolts (x2)
M8 Curved Washers (x2)
M8 Lock Nuts (x2)
M8 Washers (x2)
2A
2B
2B) M8 x 70mm Hex Bolts (x2)
M8 Curved Washers (x4)
M8 Lock Nuts (x2)
2B
4
7
7) M8 x 105mm Hex Bolts (x4)
M8 Curved Washers (x8)
M8 Lock Nuts (x4)
7
5
5) M14 x 108mm Hex Bolt
M14 Lock Washer
M14 Washer
14mm Washers (x2)
5
6
6) M6 x 40mm Machine Bolts (x2)
M6 Washers (x4)
M6 Lock Nuts (x2)
6
3
3) Cotter Pins (x2) 3
1B M8 x 70mm Hex Bolts (x2)
M8 Curved Washers (x4)
M8 Lock Nuts (x2)
1B
4) M12 x 25mm Hex Bolts (x4)
M12 Rubber Washers (x4)
M12 Washers (x8)
M12 Nuts (x4)
4

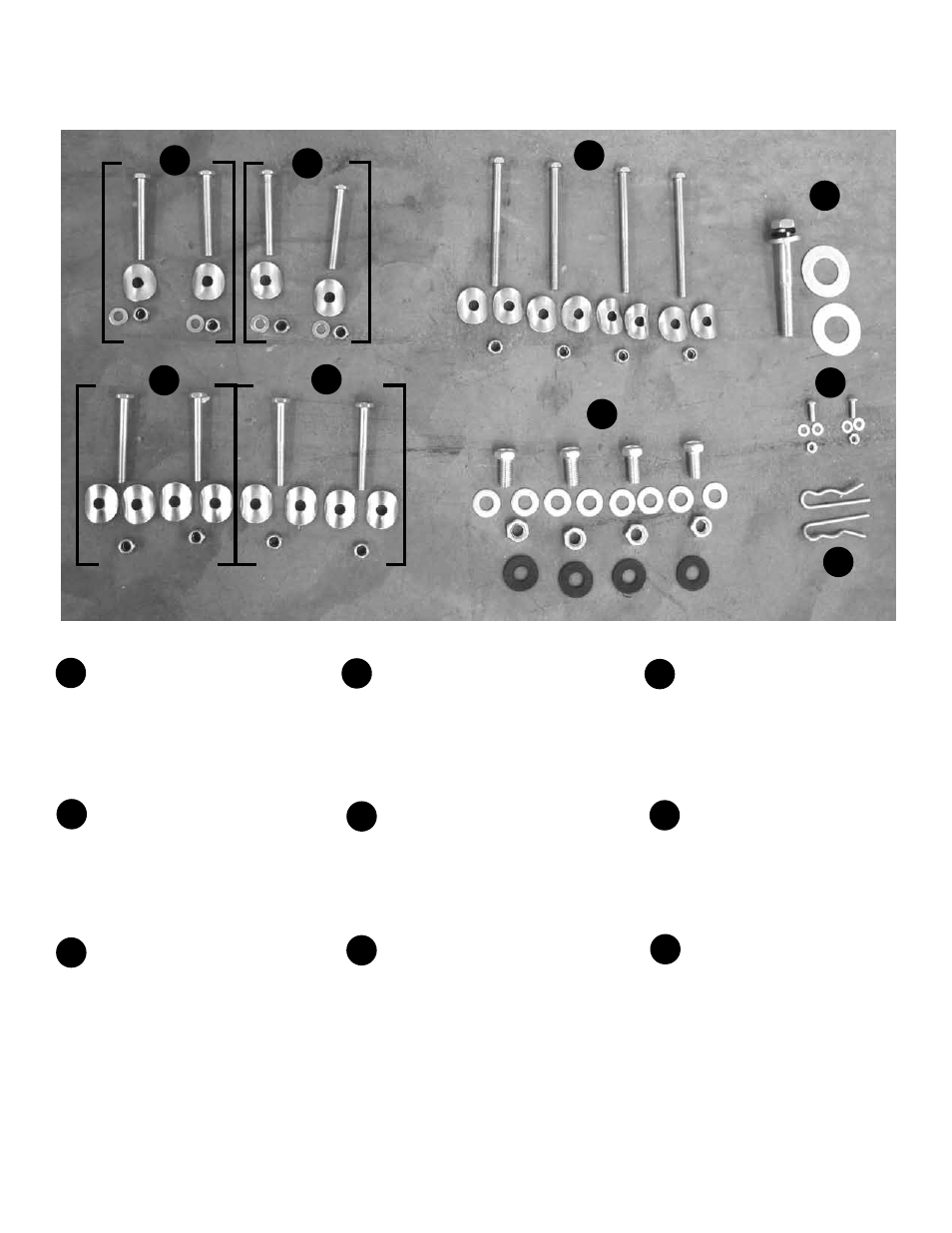

2. Lay out all hardware
