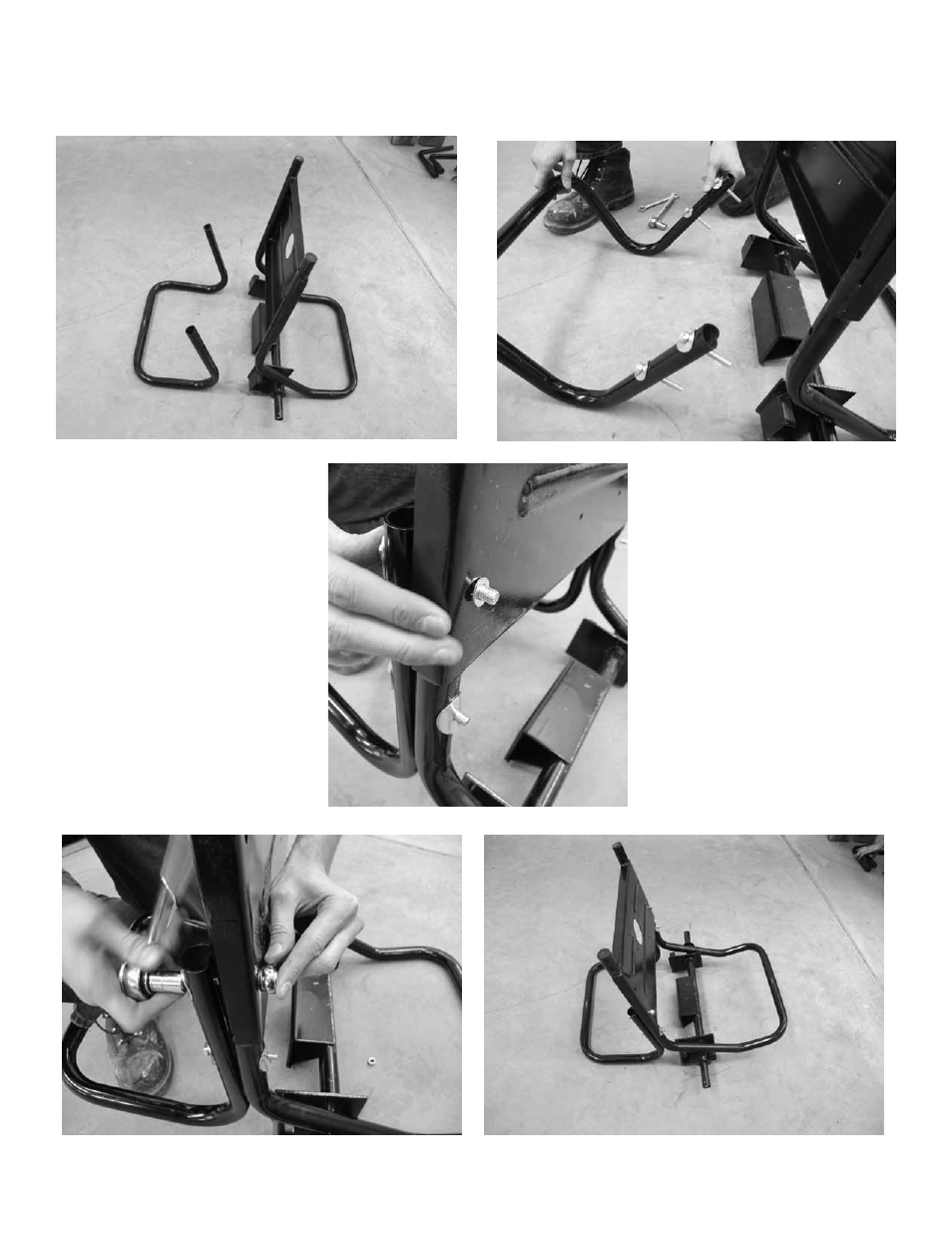

ASSEMBLY GUIDE (Frame - Parts A & B)

Use hardware

1A on top, use 1B on bottom.

3. Connect draw bar to the back of the drum frame. Hardware required: SETS 1A & 1B

Finished frame.

Fasten using a 14mm wrench and 14mm socket.
