SECTION 1 - Installation
INSPECTION:
Inspect the package for damage. If damaged, notify the appropriate carrier immediately.
MOUNTING:
The Maverick IP Sub Metering Appliance must be mounted on a flat surface with four #6
sheet metal screws (not provided) as shown in Figure 2.
REQUIREMENTS:
• Tools (not provided)
- Digital Volt-ohm Meter (DVM).
- Appropriate screwdriver for mounting screws.
- Appropriate drill and drill bit for mounting screws.
• Four #6 sheet metal screws.
• Training: Installer must be a qualified, experienced technician.

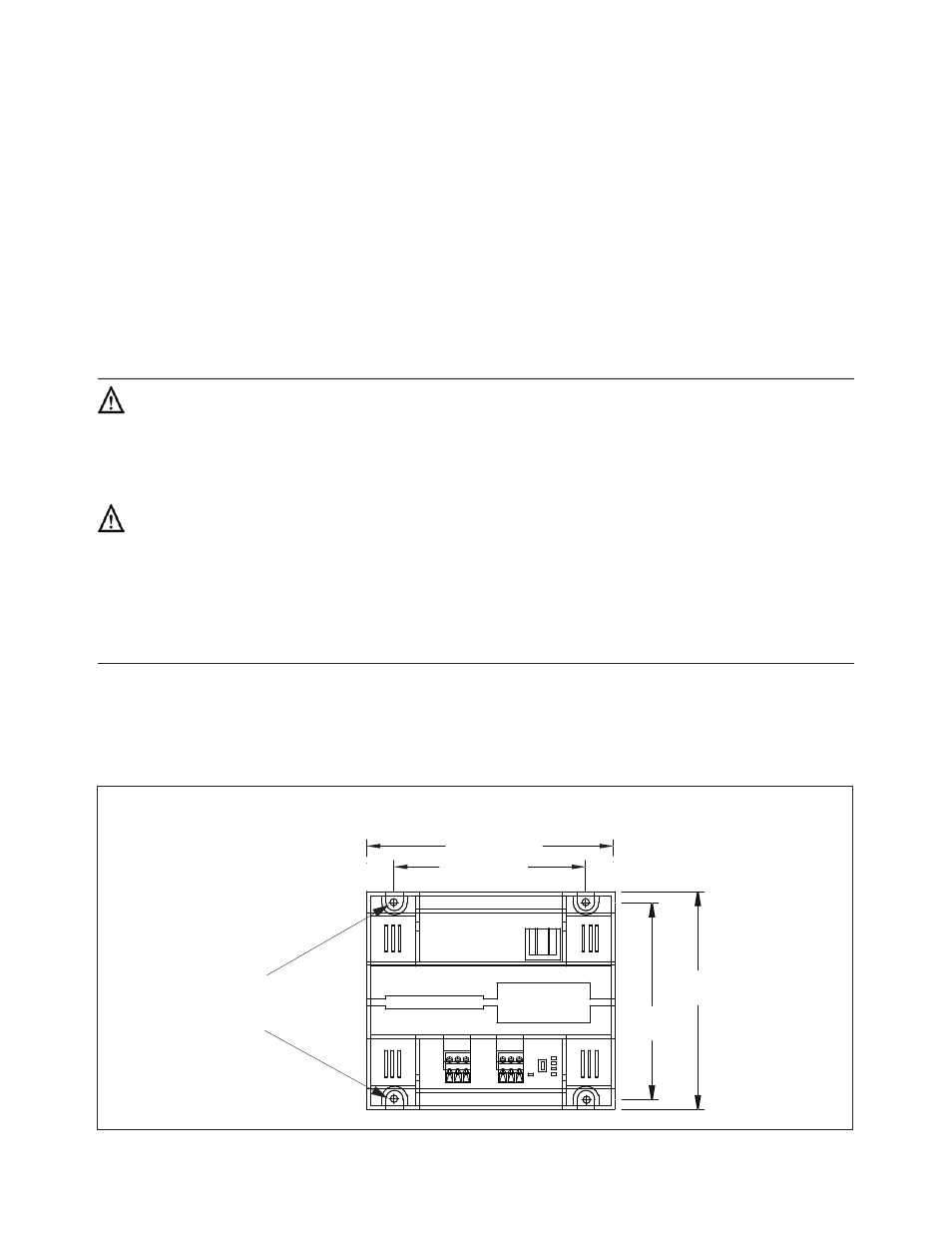

Figure 2
Warning:
Caution:
• Disconnect power supply before installation to prevent electrical shock and equipment damage.
• Make all connections in accordance with national and local electrical codes. Use copper
conductors only.
• Use electrostatic discharge precautions (e.g., use of wrist straps) during installation and wiring
to prevent equipment damage.
• Avoid locations where severe shock or vibration, excessive moisture or corrosive fumes are
present.
• Do not exceed ratings of the device.
1.3.0
1.3.1
1.3.2
© Copyright 2009 ® Registered trademark MAMAC SYSTEMS, Inc.
5 of 17
DN IS-IPSM101.1
4x 0.156” use #6
sheet metal screws
(not included) to
mount appliance
MAMAC SYSTEMS
3.70”
(94 mm)
4.00”
(102 mm)
3.61” (91 mm)
4.50” (114 mm)
