Ⅰ. SCOPE：
This specification applies to the Pb Free high current type SMD Coupled inductors for
MSI-280904CP-SERIES-□-□□
Warn : It is here not to use synchronous rectification curcuit！
PRODUCT INDENTIFICATION
MSI - 280904CP - R30 N - E - □□
① ② ③ ④ ⑤
① Product Code
② Dimensions Code
③ Inductance Code
④ Tolerance Code
⑤ Inner Control Code

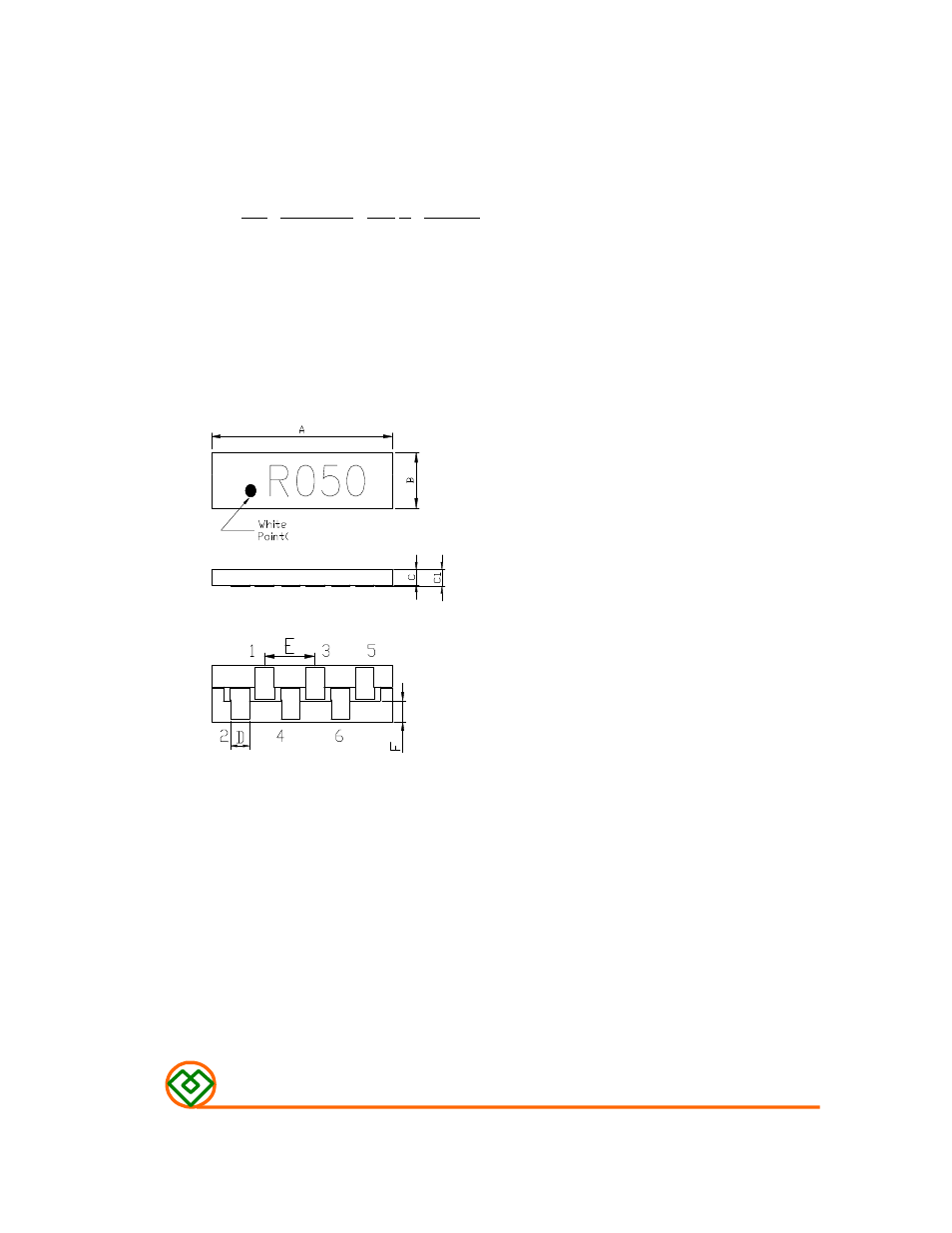

(1) SHAPES AND DIMENSIONS
A: 27.3 ±0.5 mm
B: 9.0 ±0.5 mm
C: 4.0 Max. mm
C1: 4.2 Max. mm
D: 2.5 ±0.15 mm
E: 7.3 ±0.25 mm
F: 3.3 ±0.15 mm
(2) ELECTRICAL SPECIFICATIONS
SEE TABLE 1
TEST INSTRUMENTS
L : HP 4285A PRECISION LCR METER (or equivalent)
RDC : CHROMA MODEL 16502 MILLIOHMMETER (or equivalent)
(3) CHARACTERISTICS
(3)-1 Ambient temperature ……......... ＋60℃ Max.
(3)-2 Operate temperature range ...... －40℃～＋125℃
(Including self temp. rise)
(3)-3 Storage temperature range ...... －40℃～＋125℃
MSI-280904CP-SERIES-□-□□ Page-1/8
IDC1 : CH3302/G LCR METER
CH1320,CH1320S BIAS CURRENT SOURCE(or equivalent)
MAG.LAYERS
Pin 1)
