Mag Layers USA MCM-7060M User Manual

Scope, 1) shapes and dimensions, 2) electrical specifications

Ⅰ. SCOPE：

This specification applies to the Pb Free high current type SMD Common mode filter

for MCM-7060M-SERIES

PRODUCT INDENTIFICATION

MCM-7060M- 301

① ② ③

① Product Code

② Dimensions Code

③ Impedance Code

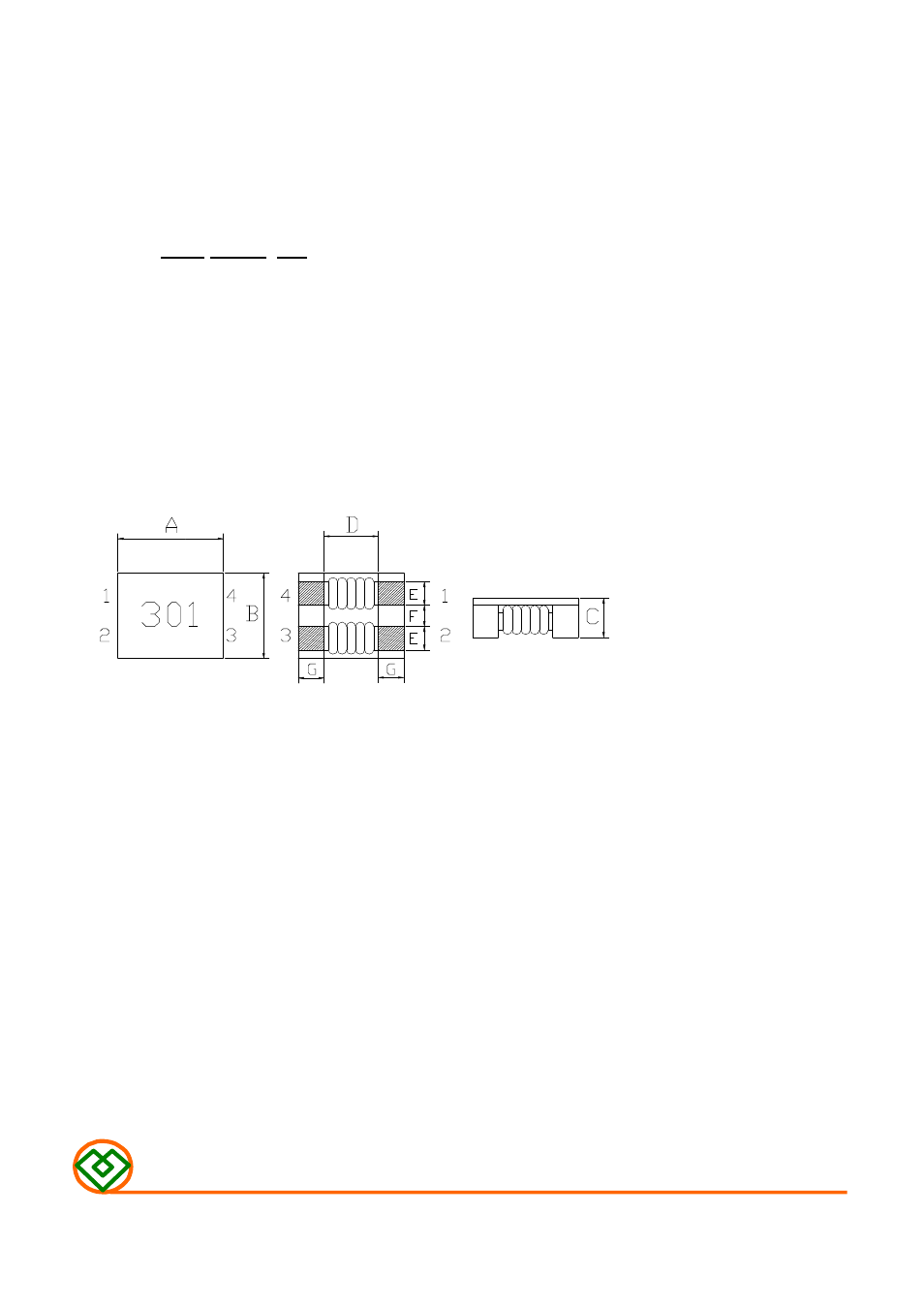

(1) SHAPES AND DIMENSIONS

A: 7.0

±0.5 mm

B: 6.0

±0.5 mm

C: 3.8Max. mm

D: 3.5Typ. mm

E: 1.5

±0.2 mm

F: 1.5

±0.2 mm

G: 1.75

±0.2 mm

(2) ELECTRICAL SPECIFICATIONS

SEE TABLE 1

TEST INSTRUMENTS

Z : HP 4291B IMPEDANCE ANALYZER (or equivalent)

RDC : CHROMA MODEL 16502 MILLIOHMMETER (or equivalent)

(3) CHARACTERISTICS

(3)-1 Temperature rise

…................... ＋40℃ Max.

(3)-2 Operate temperature range ...... －40℃～＋125℃

(Including self temp. rise)

(3)-3 Storage temperature range ...... －40℃～＋125℃
