Mag Layers USA MCM-1211M User Manual

Scope, 1) shapes and dimensions, 2) electrical specifications

Ⅰ. SCOPE：

This specification applies to the Pb Free high current type SMD Common mode filter

for MCM-1211M-SERIES

PRODUCT INDENTIFICATION

MCM - 1211M - 701

① ② ③

① Product Code

② Dimensions Code

③ Impedance Code

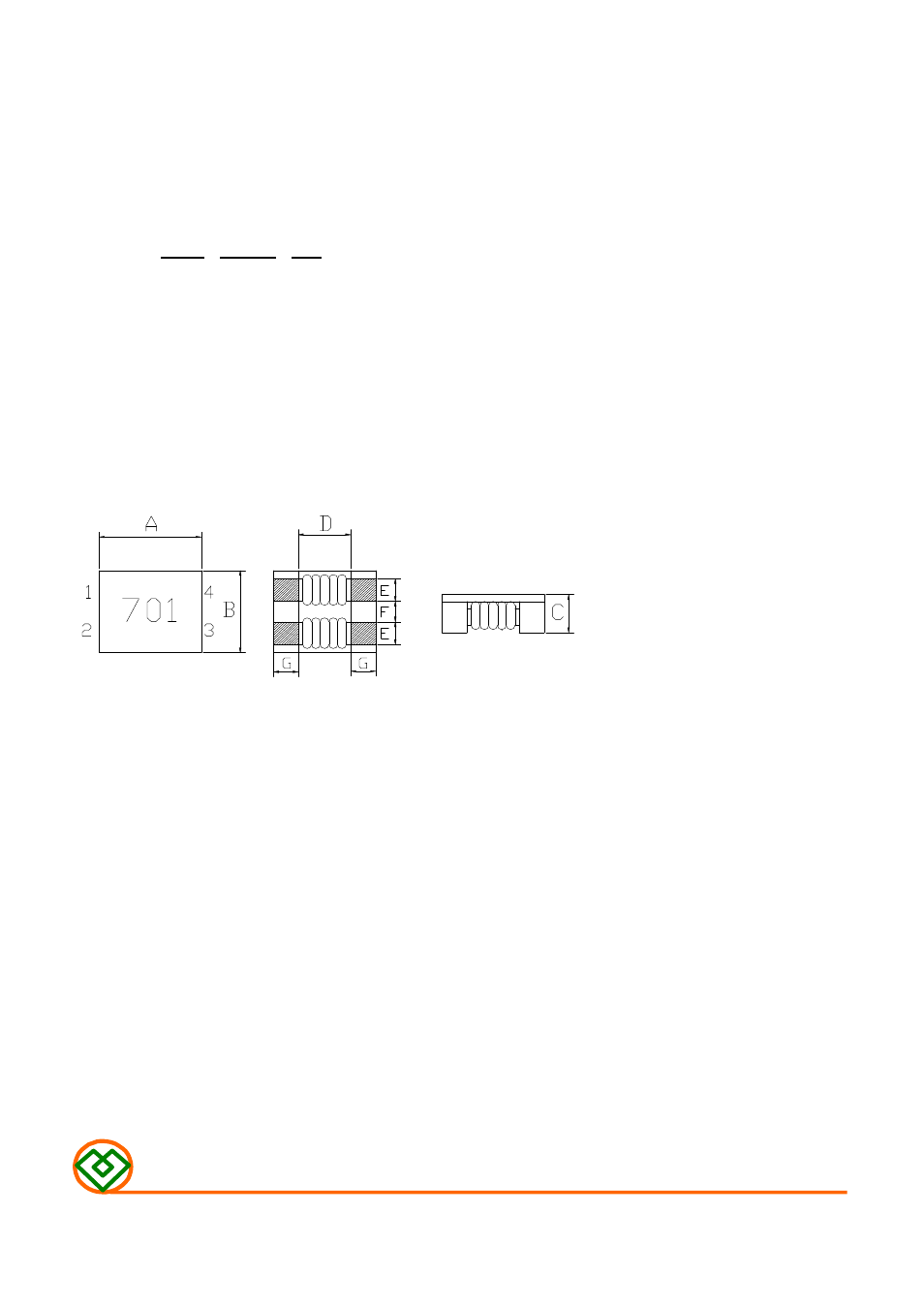

(1) SHAPES AND DIMENSIONS

A: 12.0

±0.5 mm

B: 10.8

±0.5 mm

C: 6.4 Max. mm

D: 7.0 Typ. mm

E: 2.7

±0.2 mm

F: 2.5

±0.2 mm

G: 2.5

±0.2 mm

(2) ELECTRICAL SPECIFICATIONS

SEE TABLE 1

TEST INSTRUMENTS

Z : HP 4291B IMPEDANCE ANALYZER (or equivalent)

Z : HP 4285 IMPEDANCE ANALYZER (or equivalent) (For MCM-1211F-272)

RDC : CHROMA MODEL 16502 MILLIOHMMETER (or equivalent)

I.R : CHROMA MODEL 19073 AC/DC/IR HIPOT TESTER (or equivalent)

(3) CHARACTERISTICS

(3)-1 Ambient temperature

……......... ＋60℃ Max.

(3)-2 Operate temperature range ...... －40℃～＋125℃

(Including self temp. rise)

(3)-3 Storage temperature range ...... －40℃～＋125℃
