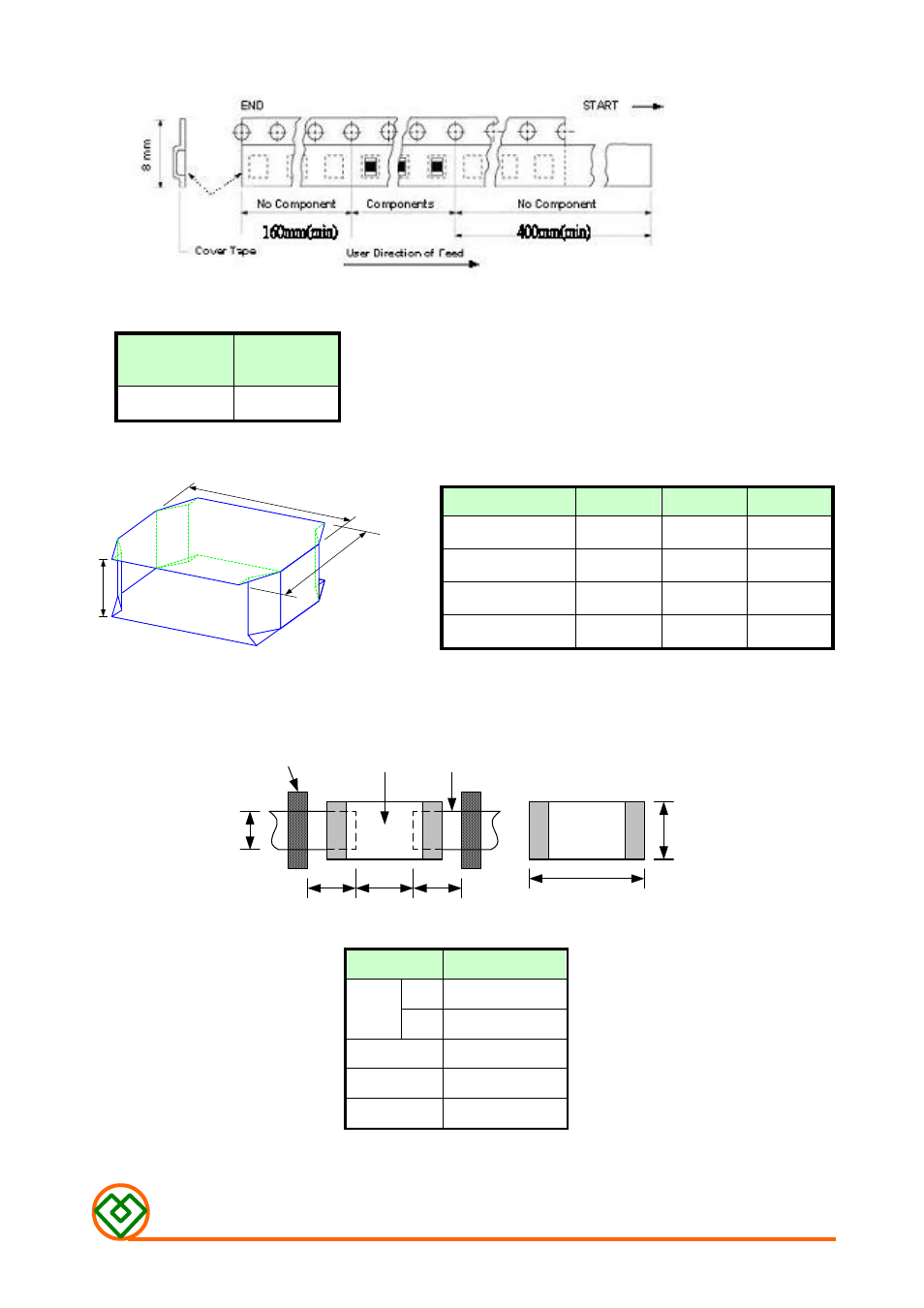

 Taping Quantity
SERIES 2012
PCS/Reel 4000
 Tape Packing Case
`
W
L
H
No. of Reels W L H
2 18±0.5 18±0.5 2.4±0.2
3 18±0.5 18±0.5 3.6±0.2
4 18±0.5 18±0.5 4.8±0.2
5 18±0.5 18±0.5 6.0±0.2
Unit: cm
MAG.LAYERS
GMLI-201209、201212 Series
■
■ ■ RECOM ENDED PCB LAYOUT
R R E E C C O O M M M
M M E E N N D D E E D P D P C C B L B L A A Y Y O O U U T T
A B B
C
Land
pattern
Chip
Inductor
Solder-resist
W
L
Chip
Inductor
Unit: mm
Type 2012
L 2.0
Size
W 1.2
A 0.8~1.2
B 0.8~1.2
C 0.9~1.6
