DQ-4000 DQ-4000 User's Guide
Page: 10 / 21
P/N : 033-02061 Rev. 1
2 M
ODULE
D
ETAILS
2.1 DQ-4000 External Connections
The front view below shows 4 USB Type-B input connections for the iLoad frequency-based sensors.

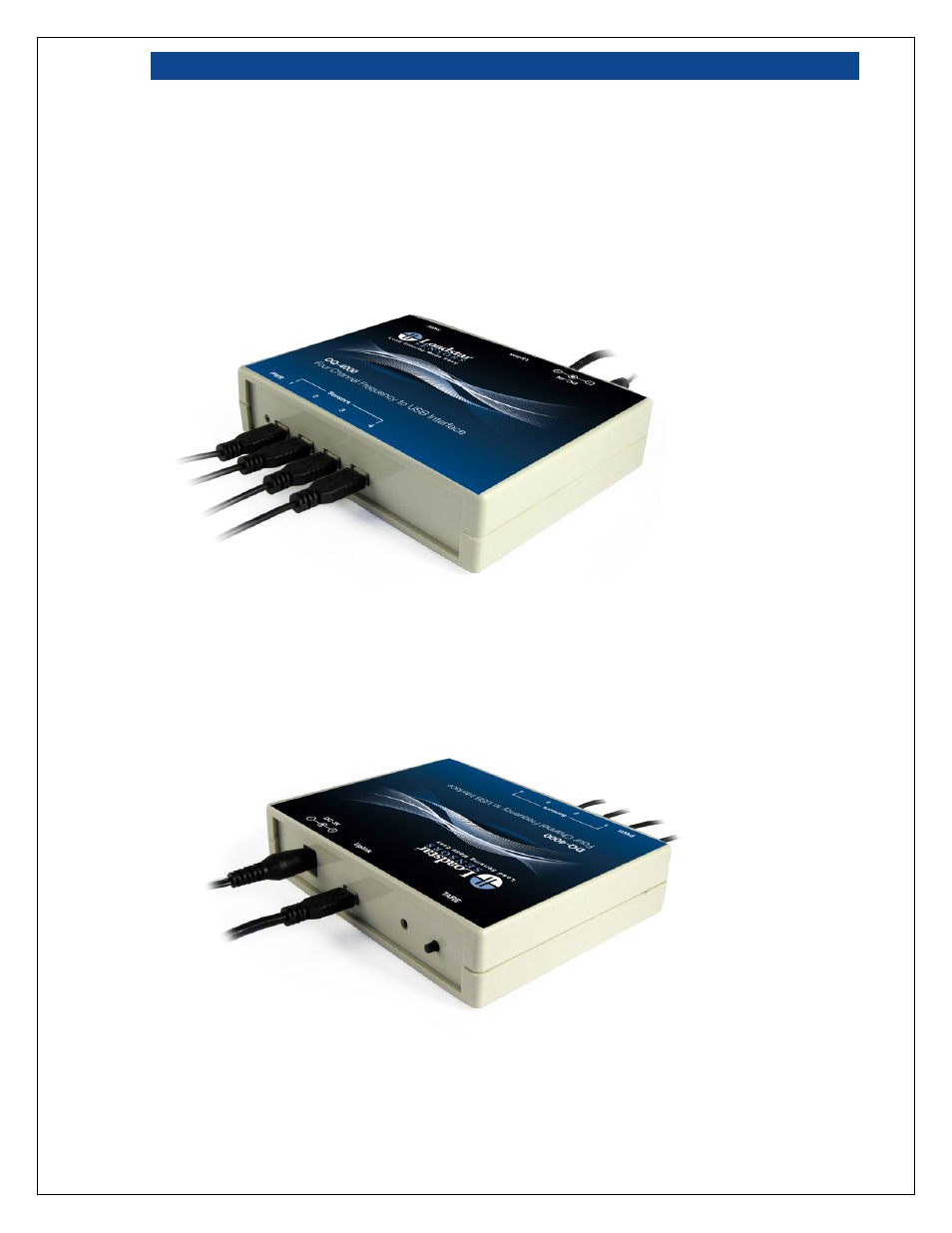

Figure 1: Front View – With Sensors Attached
The rear view below shows the power input, the USB uplink to the host PC, access to contrast
adjustment for the optional LCD, and a pushbutton to scroll through the LCD or to tare the load.
Figure 2: Rear View – With DC-IN and USB Uplink attached
