P/N : 033-01591 Rev. 6

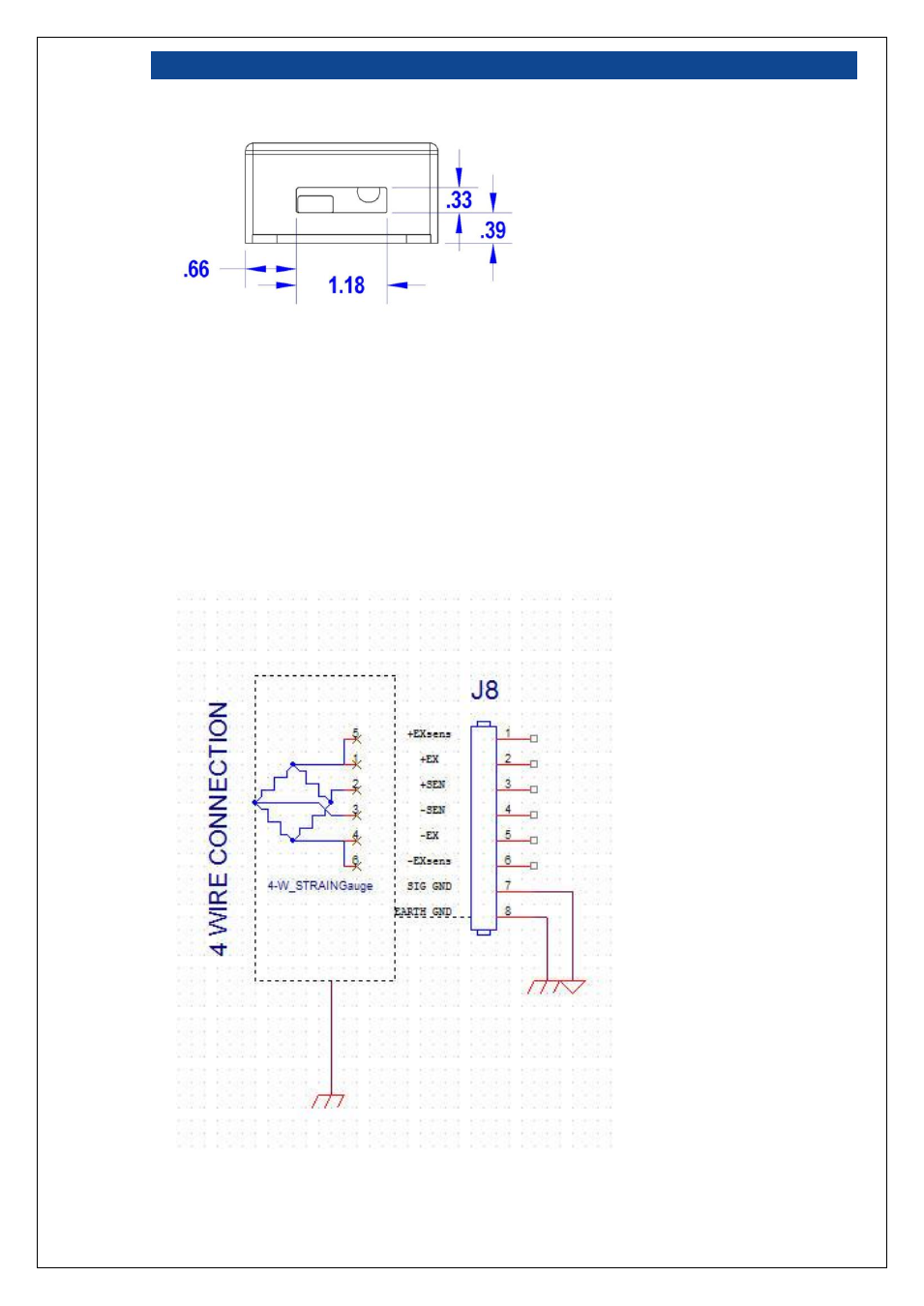

Figure 6: Removable Wiring Connector End (Load cell connection)
2 S
TEP BY
S
TEP
O
PERATING G UIDE
Designed for ease of use, the DI-1000 is easy to bring up. The following steps should get you up
and running quickly.
2.1 Plug in the AC power adapter to your DI-1000
2.2 Attach your load cell to the DI-1000
Both 4-wire and 6-wire load cell wiring diagrams for the DI-1000 are shown in the following figures:
Figure 7: Four Wire Load Cell Wiring Schematic
