4’ Tongue Extension

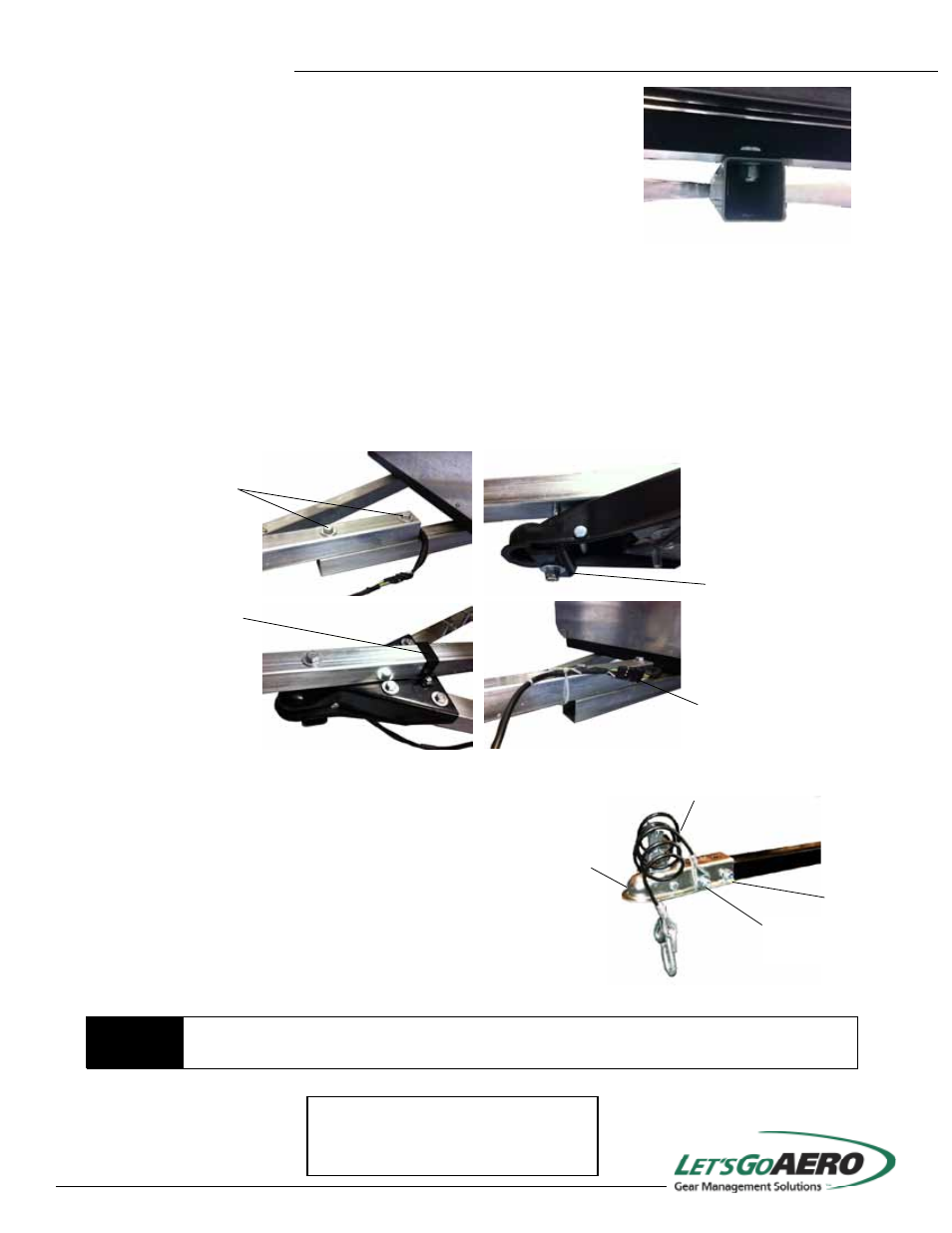

Locate the two holes on the 16” tongue tube and attach the 72” tongue tube using (2) ½-13 x 5 Hex Cap Screw, (2) ½-13

Nylon Insert Lock Nut and (4) ½ USS Flat Washer as shown. Secure the 72” tongue tube on the A-frame coupler using the

hat bracket, (2) 3/8-16 x 1 Hex Cap Screw and (2) 3/8 Split Lock Washer as shown.

Now place the coupler plate under the A-fame coupler and align holes with the 72” tongue tube and the A-frame coupler.

Secure it using (1) ½-13 x 6-1/2 Hex Cap Screw, (1) ½-13 Nylon Insert Lock Nut and (2) ½ USS Flat Washer as shown.

Attach the wire harness extension.

Step 4: Attach 72” tongue tube

Locate the Frame Coupler, the (2) Safety Cables, (1) 1/2” X 3-1/2”

Bolt and (1) 1/2” X 4” Bolt, (2) Nylon Lock Nuts, (4) 1/2” Flat Washers.

Attach the Coupler and the safety cables to the tongue tube using the

hardware.

Step 5: Install new coupler and safety cables

Attach 72” tube

to 16” tube

using these two

locations

Hat bracket for

securing tongue

tube on coupler

Coupler bracket

under the A-

frame coupler

Attach wire

harness

extension

Safety Cable

1/2” X 3-1/2”

Bolt, washer

and Nut

Coupler

1/2” X 4” Bolt,

Washer and

Nut

For Assistance, contact Let’s Go Aero at:

877-464-2376 or 719-630-3800, or

[email protected].

Visit our websiite at www.LetsGoAero.com

Caution:

When using the 4’ tongue extension the load capacity of your LittleGiant Trailer must be

reduced to 1000 lbs.

Locate the hole in the center on the angle in front of the trailer. Attach the 16”

tongue tube using (1) ½-13 X 1 Hex cap scew, (1) ½-13 Nylon Insert Lock Nut and

(1) ½ USS Flat washer.

Step 3: Attach 16” tongue tube
