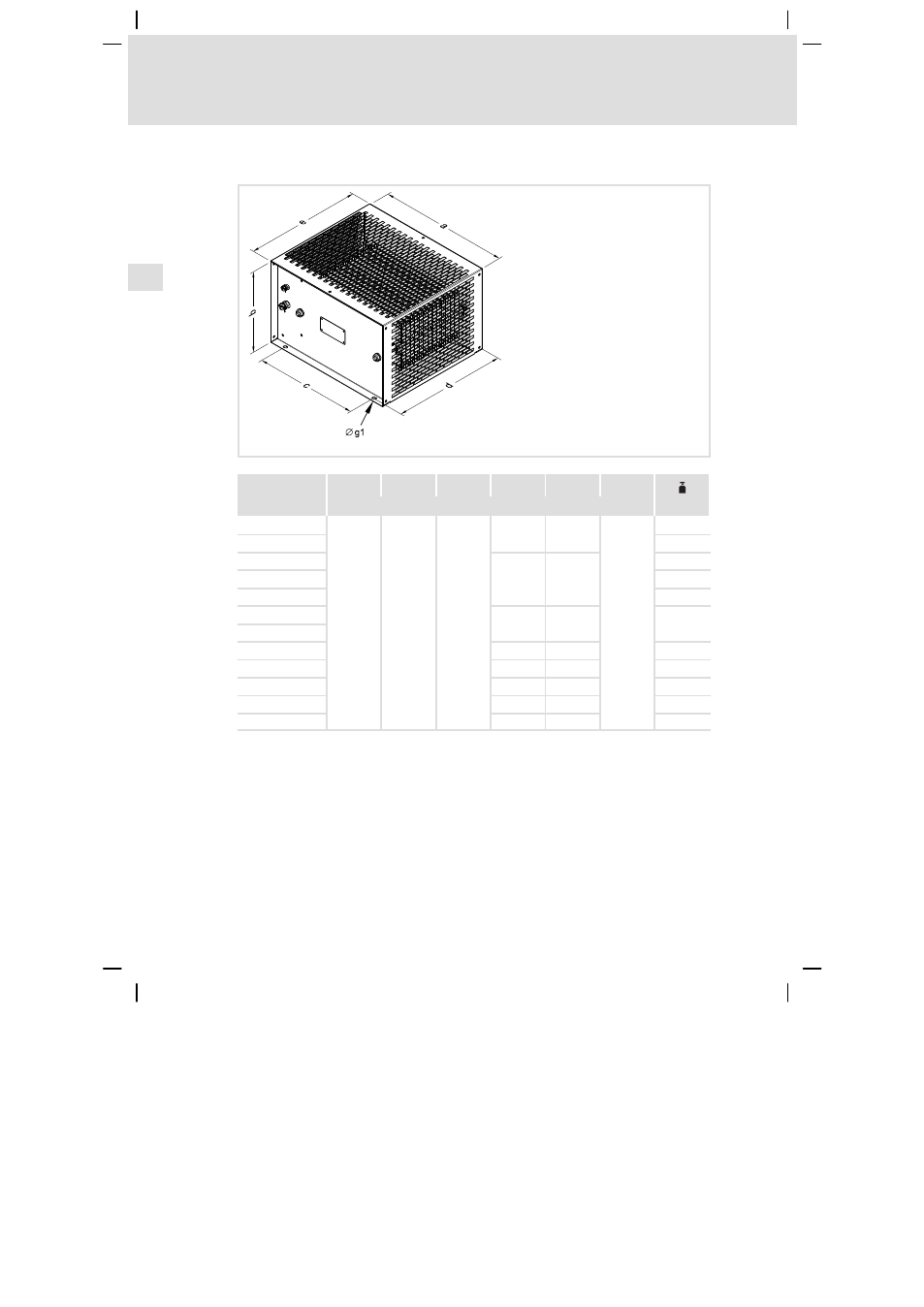

Datos mecánicos, Datos técnicos – Lenze ERBGxxxxxxxx User Manual
Page 98
Datos técnicos
Datos mecánicos
l
98
EDKRBG018R DE/EN/FR/ES/IT 8.0
4.3
Datos mecánicos
ERBG003
a
b
c
d
e
g1
[mm]
[kg]
ERBG023D05K6
486
302
380
400
426
6.3
15.9
ERBG028D04K1
12.8
ERBG035D03K3
300
326
12.6
ERBG043D03K0
11.8
ERBG005R02K6
11.0
ERBG075D01K9
210
236
9.5
ERBG012R01K9
ERBG012R05K2
400
426
15.1
ERBG015R03K3
300
326
12.6
ERBG015R06K2
500
526
17.0
ERBG015R10K0
710
736
22.0
ERBG018R04K3
400
426
13.5
