Main-bus connector type E82ZWKN2
MAE82ZWKN2 2.0
l
Lenze Drive Systems GmbH, Postfach 10 13 52, D-31763 Hameln
( (+49) 5154 82-0, Fax Service: (+49) 5154 82-1112
These Instructions
inform about the use of mains-bus connectors E82ZWKN2 and describe how to install them.
are only valid
- for mains bus connectors E82ZWKN2 for 8200 motec frequency inverters, type E82MVxxx_2B
(0.25 kW and 0.37 kW).
- together with the Mounting Instructions EDKMV3 for 8200 motec.
The Mounting Instructions EDKMV3 delivered together with the 8200 motec inform about electrical
installation and commissioning.
Connection conditions
Sum of mains currents max. 16 A!
Cable cross-sections and fuses F1 must match the sum of mains currents.
Max. cable cross-section: 2.5 mm
2
(AWG14).
Max. 4 motec can be connected in parallel.
The discharge current to earth is higher than 3.5 mA. Therefore permanent installation is required.
8200 motec
Mains contactor K10 required for connection of:
Type
Mains current
2 motec
3 motec
4 motec
E82MV251_2B
3.4 A
11 kW*
15 kW*
22 kW*
E82MV371_2B
5.0 A
11 kW
4 kW**
15 kW
4 kW**
22 kW
4 kW**
*
Mains contactor determined by switch-on current
**
With external switch-on current limitation, type E82ZJ004
Observe national and regional regulations (e. g. VDE0113, EN 60204)!
Observe when using the external switch-on current limitation E82ZJ004:
With
cyclic
mains switching, wait at least 3 minutes before your switch-on
the unit again. Otherwise, the external switch-on current limitation has no
effect.
STOP

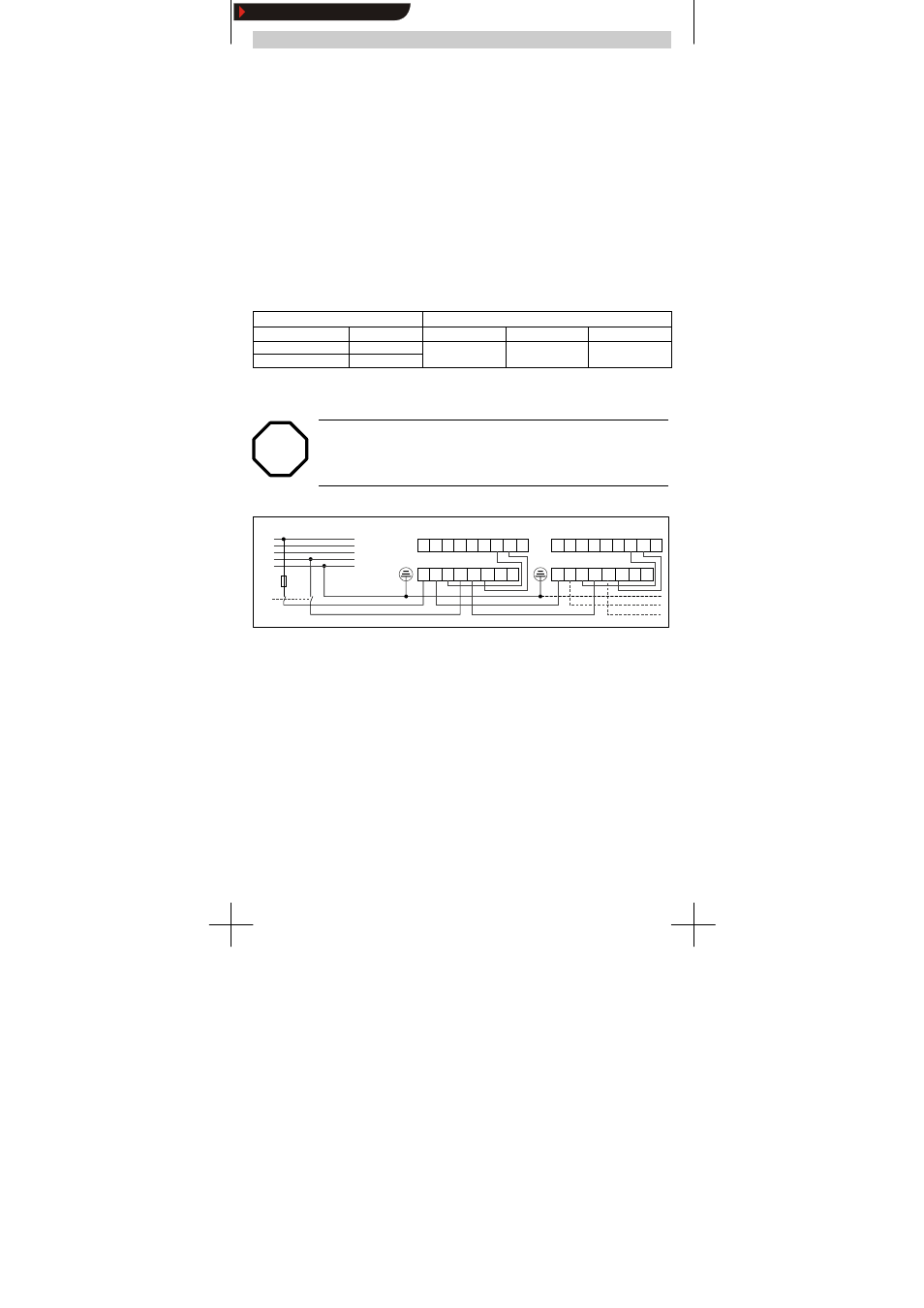

Diagram
X1
motec 1
motec 2
X1
L2/N
L2/N
L2/N
L2/N
L2/N
L2/N
BR2
BR2
K14
K14
BR1
BR1
K12
K12
K11
K11
1/N/PE AC 180 V … 264 V
L1
L1
L3
L3
L1
L1
L2/N
L2/N
L1
L1
L3
L3
L3
L3
L1
L1
L1
L2
L3
N
PE
F1
K10
EDK82ZWKN2
00468456
06/03
