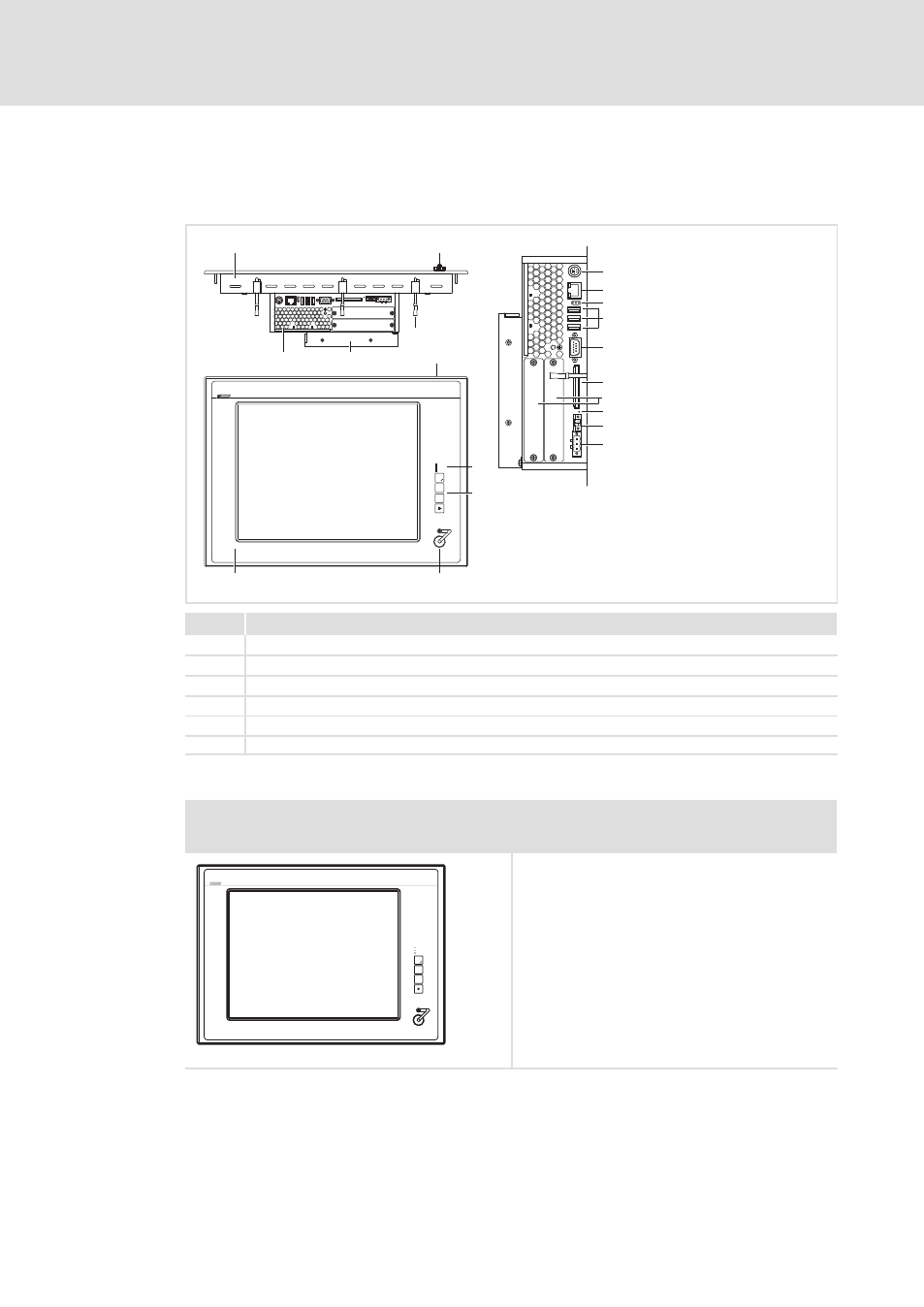

3.4 Embedded Line (EL, MP) design
Elements
- F3
Fail Power
F1
+
F2
Status
1 0
0 1
7
6
3
2
4
8
PS/2
LAN
RS232
ACU UPS
24 V DC
CF Card
MC Card
Reset
USB
5
ELx7xx−001
Pos. Description
0 Panel PC / Thin Client / monitor panel (here EL 5800 Panel PC)
1 Front face USB port (option)
2 Screw clamp fixings
3 DVD drive (option); not for monitor panel (MP 800− 9000 DVI)
4 PC or monitor control for the monitor panel (MP 800− 9000 DVI)
5 Front face control and display elements
Overview
Panel PC EL EL 1800 / EL 1800s / EL 2800 / EL 5800 / EL 9800
Thin Client EL EL 1800 TC / EL 1800s TC / EL 2800 TC / EL 5800 TC / EL 9800 TC
Monitor Panel MP 800 DVI / MP 1000 DVI / MP 1000s DVI / MP 2000 DVI / MP 5000 DVI / MP 9000 DVI
- F3
Fail Power
F1
+
F2
Status
l EL 1800 (TC): VGA touchscreen 26.4 cm (10,4")
EL 1800s (TC): SVGA touchscreen 26.4 cm (10,4")
EL 2800 (TC): SVGA touchscreen 30.5 cm (12,1")
EL 5800 (TC): XGA touchscreen 38.1 cm (15")
EL 9800 (TC): SXGA touchscreen 48.3 cm (19")
l MP 800 DVI: VGA touchscreen 20.3 cm (8")
MP 10000 DVI: VGA touchscreen 26.4 cm (10,4")
MP 1000s0 DVI: SVGA touchscreen 26.4 cm (10,4")
MP 20000 DVI: SVGA touchscreen 30.5 cm (12,1")
MP 50000 DVI: XGA touchscreen 38.1 cm (15")
MP 90000 DVI: SXGA touchscreen 48.3 cm (19")
l 3 freely assignable function keys
CS57x0−026
