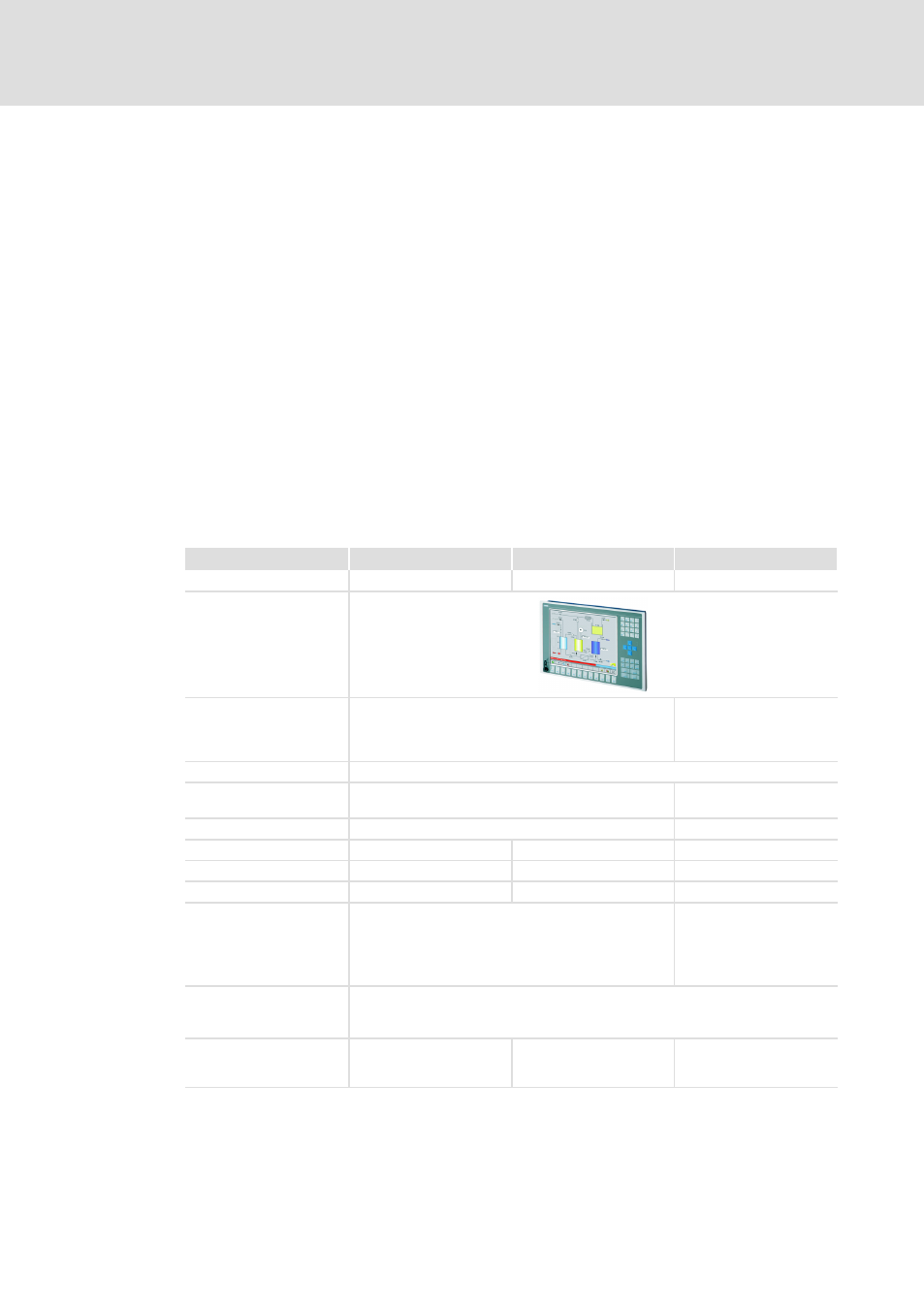

3.3.1 Embedded Line
Industrial PCs of the "Embedded Line (EL)" type are panel PCs for the installation in control
cabinets, machine panelling, or other mounting cutouts. They are provided with bolts and
clamping screws on the rear side for easy mounting and a safe sealing also in rough
industrial environments.
Apart from the Industrial PCs 1800 − EL 9800, also mere displays (monitor panels and Thin
Clients) are available in this design, which can be connected as a monitor to a Cabinet PC.
Thin Clients (TC): A Thin Client terminal serves to represent and operate applications on a
remotely installed host computer via a network connection. For data transmission the
Microsoft® RDP (Remote Desktop Protocol) is used. As host computer a Windows® XP
system for an operating section or a Windows® server operating system for several
operating sections is used. All processes are carried out on the connected server, the Thin
Client only providing for the display of the graphics or of the input systems for operating
the application. The computing power of the client can therefore be kept accordingly low.
Monitor panel (MP): A monitor panel is an operator terminal to use remote Industrial PCs
as a built−in variant or stand−alone terminal. Like the Embedded Line devices, they feature
corresponding front modules.
Type EL 1800 − 9800 EL 1800 − 9800 TC MP 800 − 9000 DVI
Function IPC Thin Client Monitor panel
Screen diagonal
26.4 cm (10.4"), 30.5 cm (12.1"), 38.1 cm (15") or
48.3 cm (19" inches)
20.3 cm (8"), 26.4 cm
(10.4"), 30.5 cm (12.1"),
38.1 cm (15") or 48.3 cm
(19" inches)
Current supply DC24 V ±25%
Uninterruptible power
system (UPS)
Optionally via ACU UPS control unit −
Cooling With or without fan Without fan
MC card slots 2 2 −
MC card ^ 29 − −
Configurable Yes No No
Interfaces
3 x USB type A
1 x USB type A front panel (opt.)
1 x PS/2
1 x RS232
1 x LAN (10/100 Mbps)
2 x USB type A
1 x USB type A front panel
(opt.)
1 x USB type B
1 x DVI
Enclosure
Front
Rear side
IP65
IP20
Backup
If Windows ® CE 6.0 is
used: backup and restore
tool V2
− −
