3.3.3 Cabinet PC
The decentralised solutions comprise separate units, the Industrial PC which is preferably
placed in a protected manner in the control cabinet, and the operating unit on site. This
solution has advantages with regard to cabling, operating conditions, and accessibility.
The following can be used as a screen:
ƒ A standard monitor.
ƒ A Monitor panel of the "Command Station" or "Embedded Line" type.
With the DVI/USB extender accessories the distance between the IPC and the monitor
panel can be up to 35 m.
ƒ A Thin Client Panel of the "Command Station" or "Embedded Line" type for
representing and operating applications which are located on a remotely installed
host computer (IPC).
The Thin Client and host computer communicate via an Ethernet connection. Like this
greater distances can be covered than with an external monitor panel. Since all
processes run on the host computer and the Thin Client solely serves to display
information and to transfer entries, the CPU performance can be selected accordingly
low.

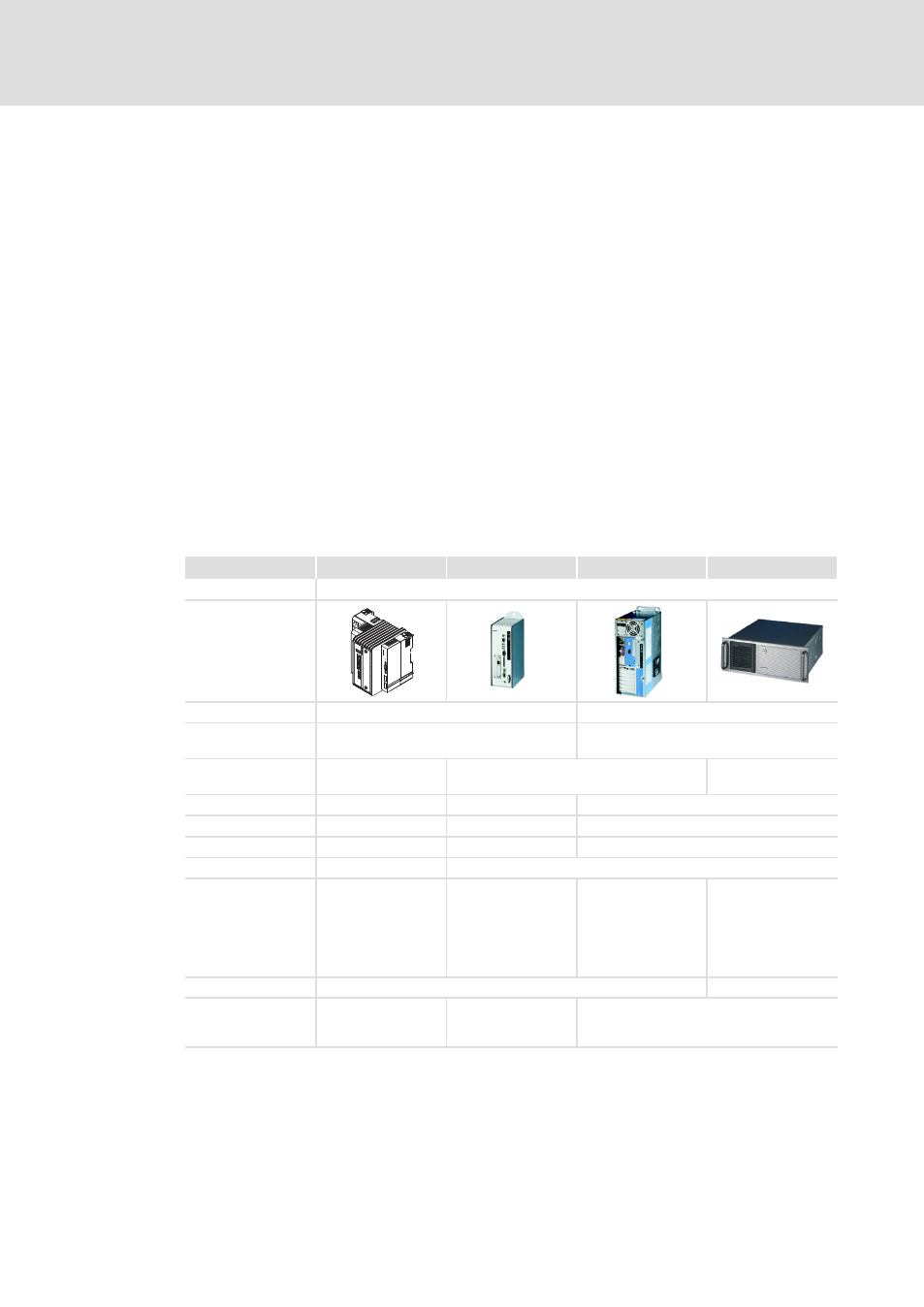

Type 3241 C CPC 2800 CPC 5100 CPC 9100
Function IPC
Current supply DC 24 V ±25% AC 115 V ... 230 V
Uninterruptible
power system (UPS)
Optionally via ACU UPS control unit Optionally via UPS−331
Mounting
Within control
cabinet on DIN rail
Within control cabinet on a wall
Within 19"
mounting rack
Cooling Without fan With or without fan With fan
MC card slots 1 2 −
MC card ^ 29 ^ 29 −
Configurable No Yes
Interfaces
3 x USB type A
1 x DVI (no VGA)
2 x LAN
(10/100 Mbps)
1 x LAN (1 Gbps)
3 x USB type A
1 x PS/2
1 x RS232
1 x DVI
1 x LAN
(10/100 Mbps)
8 x USB type A
2 x PS/2
1 x RS232
1 x DVI
2 x LAN
(10/100 Mbps)
10 x USB type A
2 x PS/2
1 x RS232
1 x DVI
2 x LAN
(10/100 Mbps)
Enclosure IP20 IP20 (front IP54)
Backup
If Windows ® CE is
used: backup and
restore tool V3
If Windows ® CE is
used: backup and
restore tool V2
RAID 0, 1, 5, 10
