Parameter setting
Parameter setting using the keypad
6
l
EDK82MVXXX EN 1.0
2 Parameter setting

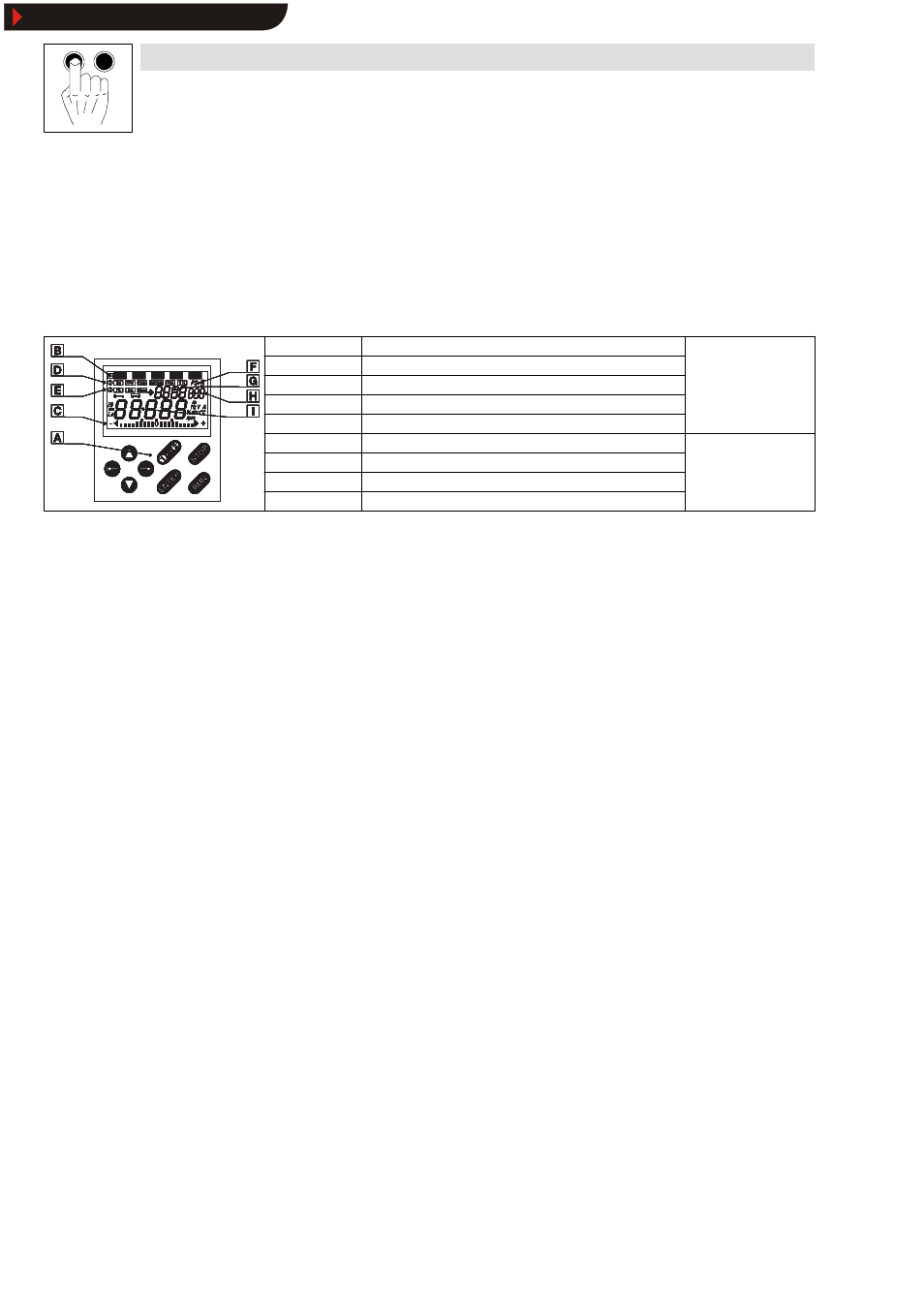

2.1 Parameter setting using the keypad
The keypad is available as accessory. A full description can be obtained from the information
included in the keypad delivery.
0 Function keys
1 Status display
2 Bargraph display
3 Function bar 1
4 Function bar 2
5 Parameter set
6 Code number Changes possible when
7 Subcode number
Changes possible when
lamp is blinking
8 Parameter value with unit
2.1.1 Menu structure
All parameters for controller setting or monitoring are saved in codes under the menus User and all .
The codes have numbers
6
and are abbreviated in the text with a ” C” before the number. Some
codes store the parameters in numerical “ subcodes”
7
to ensure that parameter setting is clearly
structured (example: C0517 menu User ).
•
The menu User
– is active after every mains switching or keypad attachment during operation.
– contains all codes for a standard application with linear V/f characteristic control (Lenze
setting).
– can be modified as required under C0517.
•
The menu all
– contains all codes.
– shows a list of all codes in ascending order.
•
The change between User and all and how to change parameters in the codes is described
on the following pages.
