Configuration
2−76
l
EDSVF9383V−EXT EN 2.0
2.4.18 Conversion phase to analog (CONVPHA)
This FB converts a phase signal into an analog signal.
C1002
CONVPHA1
CONVPHA1−IN
C1001
C1000
1
2
±200%
CONVPHA1−OUT

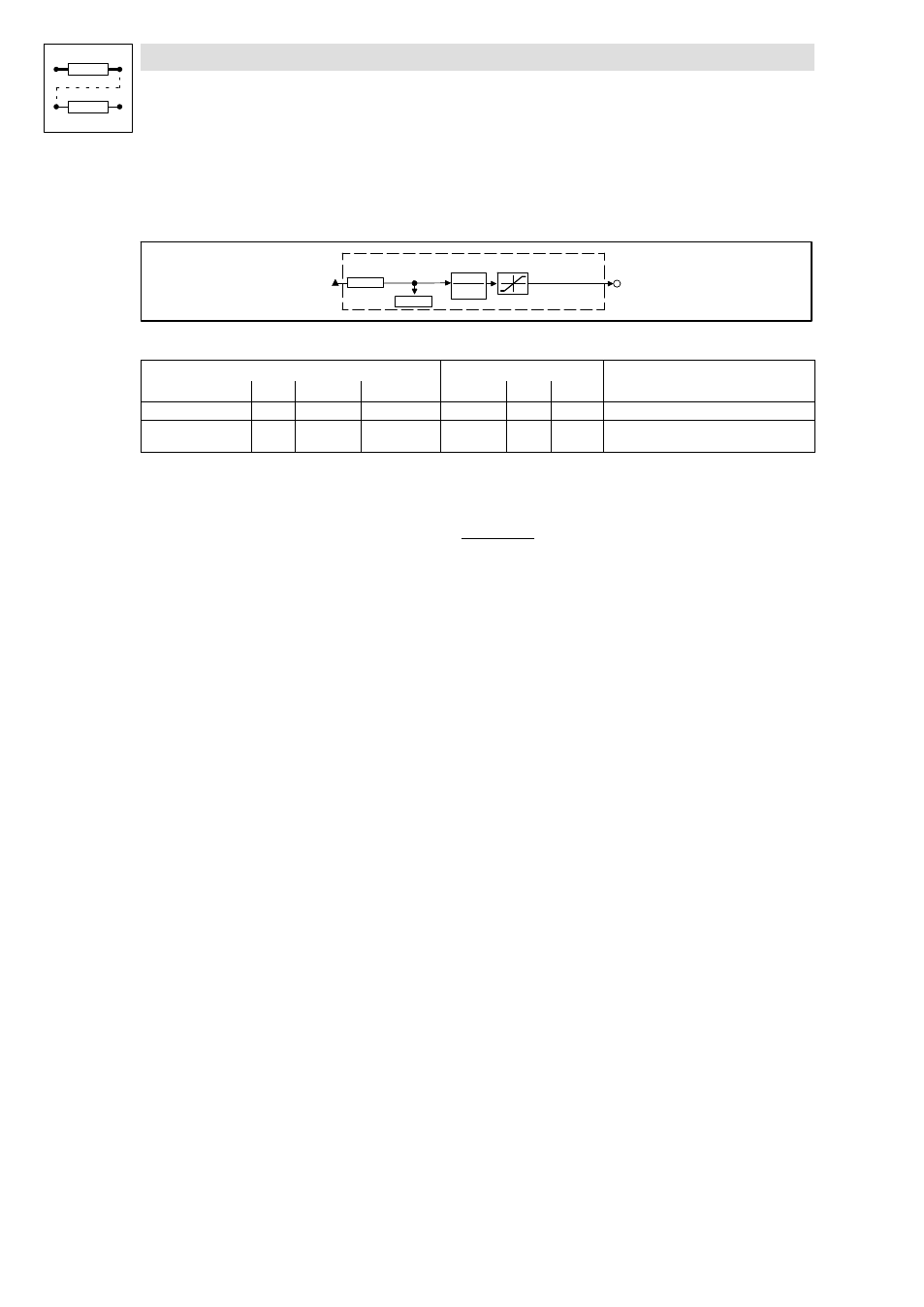

Fig. 2−62 Conversion phase to analog (CONVPHA1)
Signal Source Note
Name Type DIS DIS format CFG List List
CONVPHA1−IN ph C1002 dec [inc] C1001 3 1000 −
CONVPHA1−OUT a − − − − − limited to ±200 %, residual value
processing
Function
l The conversion with adaptation using divisor is as follows:
CONVPHA1−OUT
+ CONVPHA1−IN [inc] @ 100 %
2 14 @ 2 C1000
