Configuration
2−156
l
EDSVF9383V−EXT EN 2.0
2.4.56
S−ramp function generator (SRFG)
This FB converts setpoint step changes into S−shaped ramps. Thus, you can accelerate the drive
practically jolt−free.
C 1 0 4 0
C 1 0 4 1
C 1 0 4 5 / 1
S R F G 1
S R F G 1 - O U T
S R F G 1 - I N
C 1 0 4 5 / 2
S R F G 1 - S E T
C 1 0 4 6
S R F G 1 - L O A D
C 1 0 4 2
C 1 0 4 3
C 1 0 4 6
S R F G 1 - D I F F

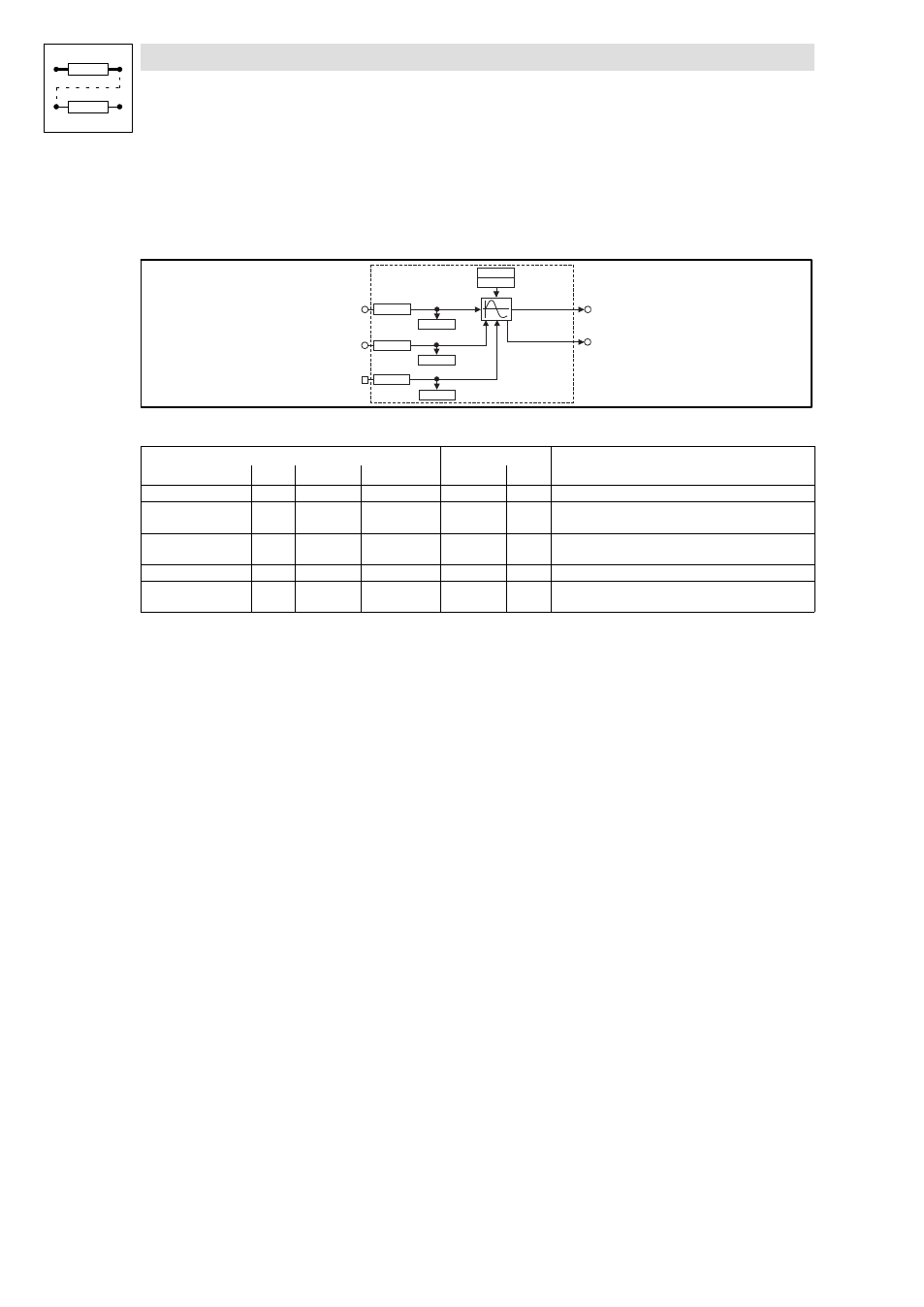

Fig. 2−135
S−ramp function generator (SRFG1)
Signal
Source
Note
Name
Type
DIS
DIS format
CFG
List
SRFG1−IN
a
C1045/1
dec [%]
C1042
1
Input
SRFG1−SET
a
C1045/2
dec [%]
C1043
1
Start value for the ramp function generator, acceptance
when SRFG1−LOAD = High
SRFG1−LOAD
d
C1046
bin
C0144
2
HIGH = accepts the value at SRFG1−SET and supplies it
to SRFG1−OUT; SRFG1−DIFF remains at 0 %
SRFG1−OUT
a
−
−
−
−
Output limited to
100 %
SRFG1−DIFF
a
−
−
−
−
Output limited to
100 %, supplies the acceleration of
the ramp function generator
Range of functions
l
Ramp function generator
l
Load ramp function generator
