Configuration
2−112
l
EDSVF9383V−EXT EN 2.0
2.4.38
Limitation (LIM)
This FB limits the input signal to an adjustable range.
LIM1
LIM1−OUT
LIM1−IN
C0633
C0630
C0631
C0632

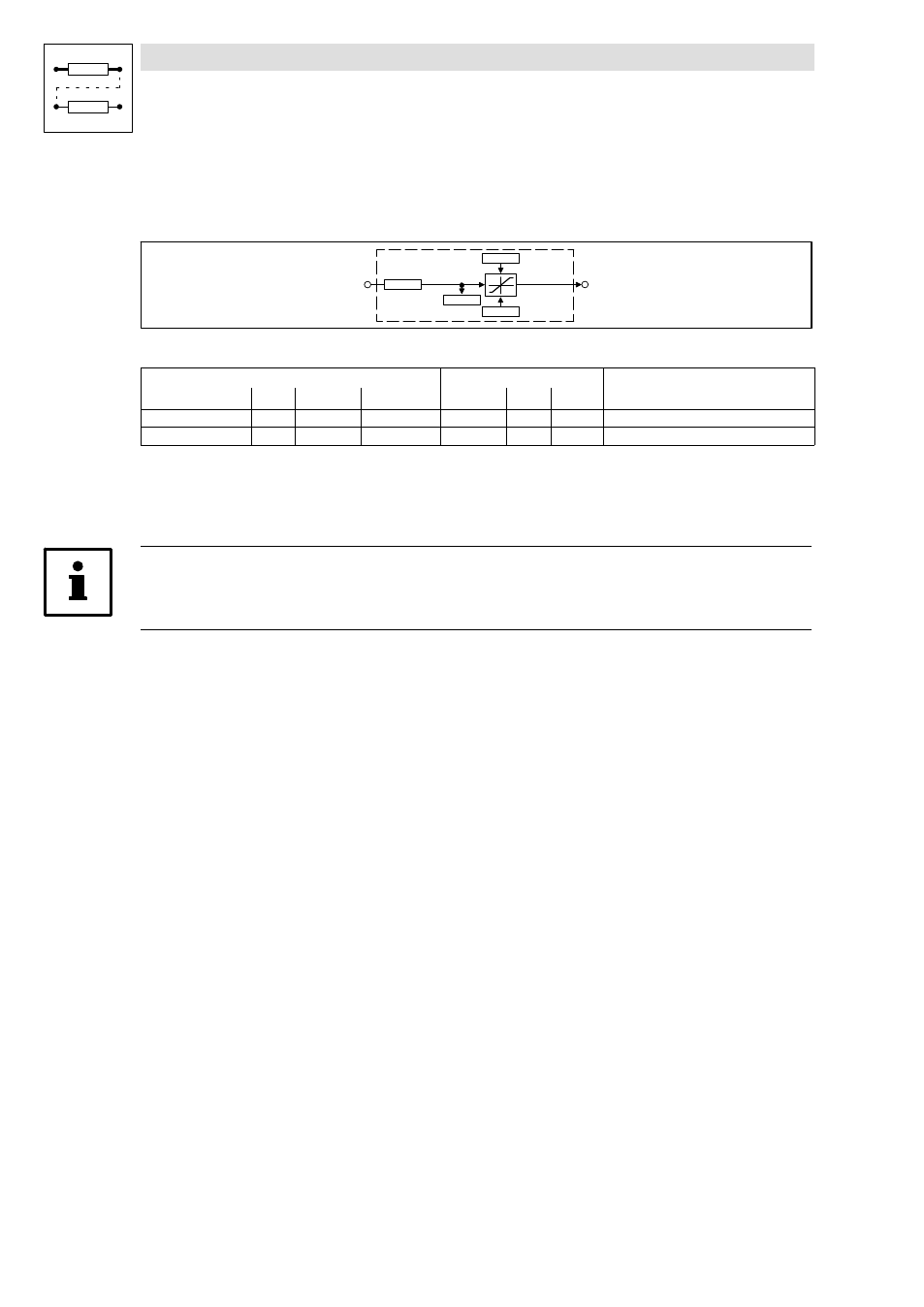

Fig. 2−91
Limitation (LIM1)
Signal
Source
Note
Name
Type
DIS
DIS format
CFG
List
Lenze
LIM1−IN1
a
C0633
dec [%]
C0632
1
1000
−
LIM1−OUT
a
−
−
−
−
−
−
Function
l
If the input signal exceeds the upper limit (C0630), the upper limit is effective.
l
If the input signal falls below the lower limit (C0631), the lower limit is effective.
Tip!
The lower limit (C0631) must be smaller than the upper limit (C0630).
