2.4.37 Integrator (INT)
These FBs calculate an angle of rotation from a speed signal. The angle of rotation is output as phase
signal and analog signal.
INT1-IN
INT1-RESET
C1355
C1356
INT1-AOUT
± 199.99 %
C1358
C1359
C1351
INT1
INT1-POUT
± 32000 rev.
INT1-REF
C1354
C1357
C1350
INT1-DOUT

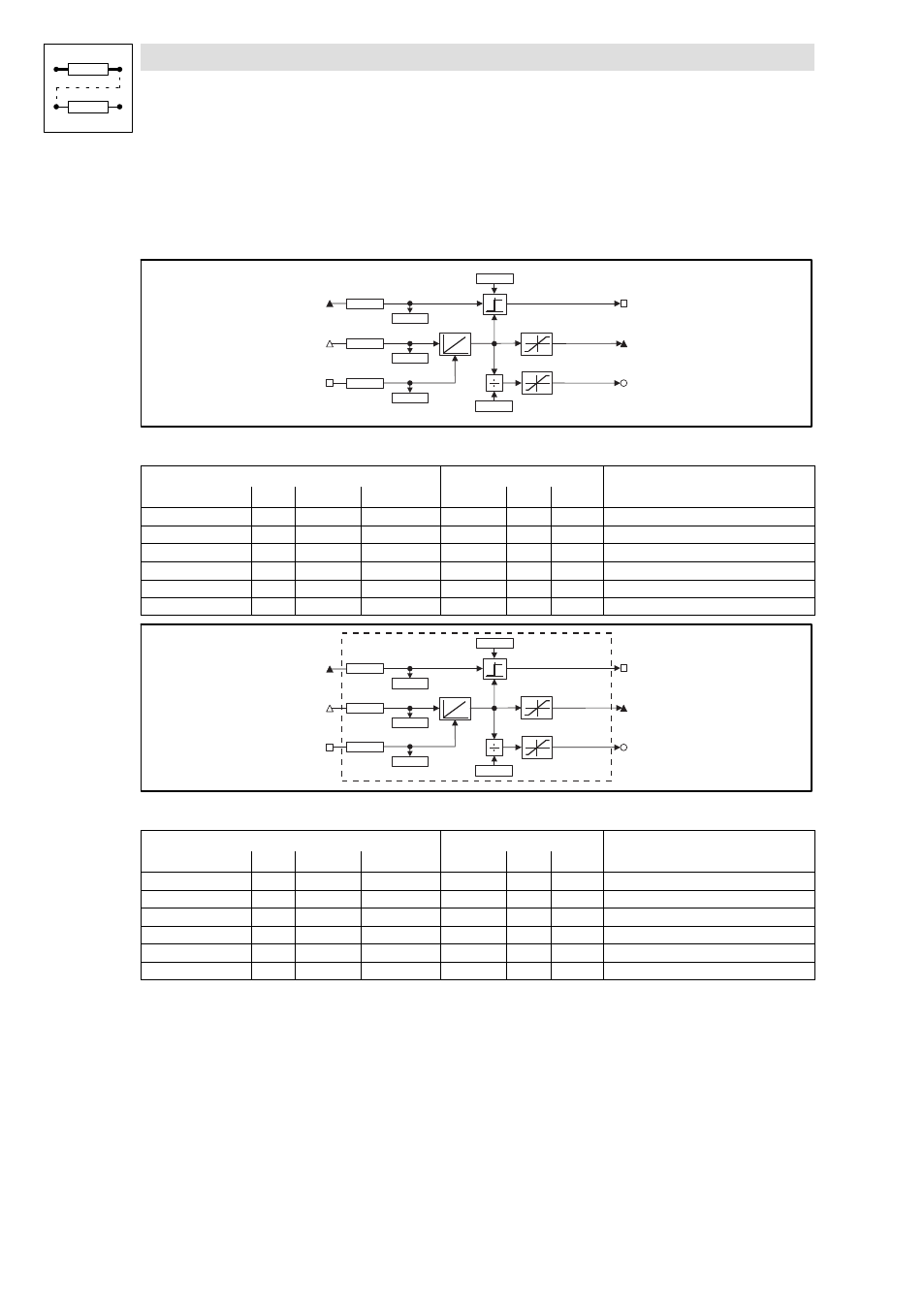

Fig. 2−89 Integrator (INT1)
Signal Source Note
Name Type DIS DIS format CFG List Lenze
INT1−REF ph C1357 dec [inc] C1354 3 1000 −
INT1−IN phd C1358 dec [rpm] C1355 4 1000 −
INT1−RESET d C1359 bin C1356 2 1000 HIGH = sets the integrator to zero
INT1−DOUT d − − − − − −
INT1−POUT ph − − − − − −
INT1−AOUT a − − − − − limited to ±199.99 %
C1365
C1366
INT2-AOUT
± 199.99 %
C1368
C1369
C1361
INT2
INT2-POUT
± 32000 rev.
INT2-REF
C1364
C1367
C1360
INT2-DOUT
Fig. 2−90 Integrator (INT2)
Signal Source Note
Name Type DIS DIS format CFG List Lenze
INT2−REF ph C1367 dec [inc] C1364 3 1000 −
INT2−IN phd C1368 dec [rpm] C1365 4 1000 −
INT2−RESET d C1369 bin C1366 2 1000 HIGH = sets the integrator to zero
INT2−DOUT d − − − − − −
INT2−POUT ph − − − − − −
INT2−AOUT a − − − − − limited to ±199.99 %
Range of functions
l Output angle of rotation as phase signal
l Compare angle of rotation with reference value
l Output angle of rotation as analog signal
l Phase signal reset
