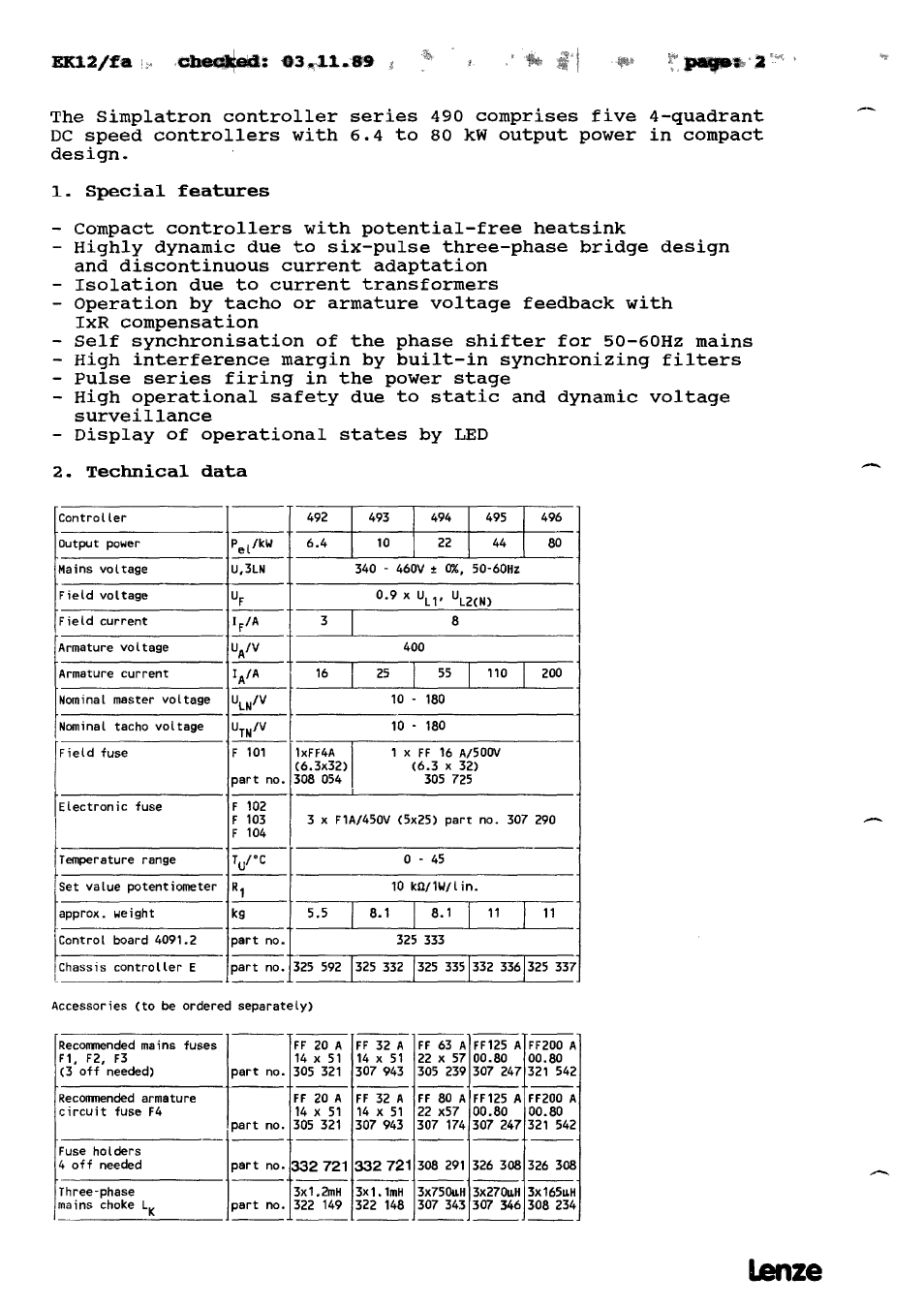

Lenze 490 Series Speed controllers tor DC motors - Manual (Page 5)

EK12/fu c : 03 11.ß~
The Simplatron controller series 490 comprises five 4—quadrant
DC speed controllers with 6.4 to 80 kW output power in compact
design.
1. Special features
-
compact controllers with potential-free heatsink
-
Highly dynamic due to six-pulse three-phase bridge design
and discontinuous current adaptation
—
Isolation due to current transformers
-
Operation by tacho or armature voltage feedback with
IxR compensation
-
Self synchronisation of the phase shifter for 50-60Hz mains
-
High interference margin by built-in synchronizing filters
-
Pulse series firing in the power stage
-
High operational safety due to static and dynamic voltage
survei 1 lance
-
Display of operational states by LED
2. Technical data
Controt 1er 492 493 494 495 j 496
Output power P lkW 6.4 10 22 44 80
ei
Mains vaitage U,3LN 340 - 460V ±0%, 50-60Hz
Held vaLtage UF 0.9 x ULl. UL2(N)
FieI.d current IF/A 3 8
Armature vaitage UAIV 400
Armature current IA/A 16 25 55 110 200
NominaL master voltage ULN/V 10 - 180
Nominal tacha voltage UTN/V 10 - 180
Field fuse F 101 1xFF4A 1 x FF 16 A/500V
<6.3x32) (6.3 x 32)
part na. 308 054 305 725
Electranic fuse F 102
F 103 3 x F1A/450V (5x25) part na. 307 290
F 104
[TefnPerature range T~I‘C 0 -
Set vaLue patentiameter R
1 10 kflI1UIlin.
approx. weight kg 5.5 8.1 8.1 11 11 hControL baard 4091.2 part na. 325 333
Chassis cantroLLer E part na. 325 592 325 332 325 335 332 336 325 337
Accessaries (to be ardered aeparately)
Recanwuended mains fuses FF 20 A FF 32 A FF 63 A FF125 A FF200 A
F1, F2, F3 14x 51 14x51 22x5700.80 00.80
(3 aff needed) part na. 305 321 307 943 305 239 307 247 321 542
Recaruuended armature FF 20 A FF 32 A FF 80 A FF125 A FF200 A
cjrcuit fuse F4 14 x 51 14 x 51 22 x57 00.80 00.80
part na. 305 321 307 943 307 174 307 247 321 542
Fuse holders
4 off needed
part na. 332 721 332 721 308 291 326 308 326 308
Three-phase 3x1.2mH 3x1.lniH 3x7SOLH 3x2701LH 3x1651LH
mains chake LK part na. 322 149 322 148 307 343 307 346 308 234
Lanze
