Accessories
Motors for 931E servo inverters
Mechanical data
8
l
45 GHB 13.0001−EN EN 3.0
8.4.3 Mechanical data
Motor type
SDSGS 035−22 SDSGS 035−22 SDSGS 047−22
Weight [kg] 2.2 2.2 3
Flange IEC IEC56 B14 C80 IEC56 B14 C80 IEC56 B14 C80
Shaft end IEC 72 9 x 20 9 x 20 11 x 20
Locating bearing at the output end 6000 6000 6000
Floating bearing 6000 6000 6000
Max. radial force F
r
top of pivot *) [N] 250 250 300
Max. radial force F
r
middle of pivot *) [N] 260 260 350
Max. axial force F
a
*) [N] 200 200 250
*) Forces determined for bearing service−life of 20000h
Fr
Fa
l
l/2

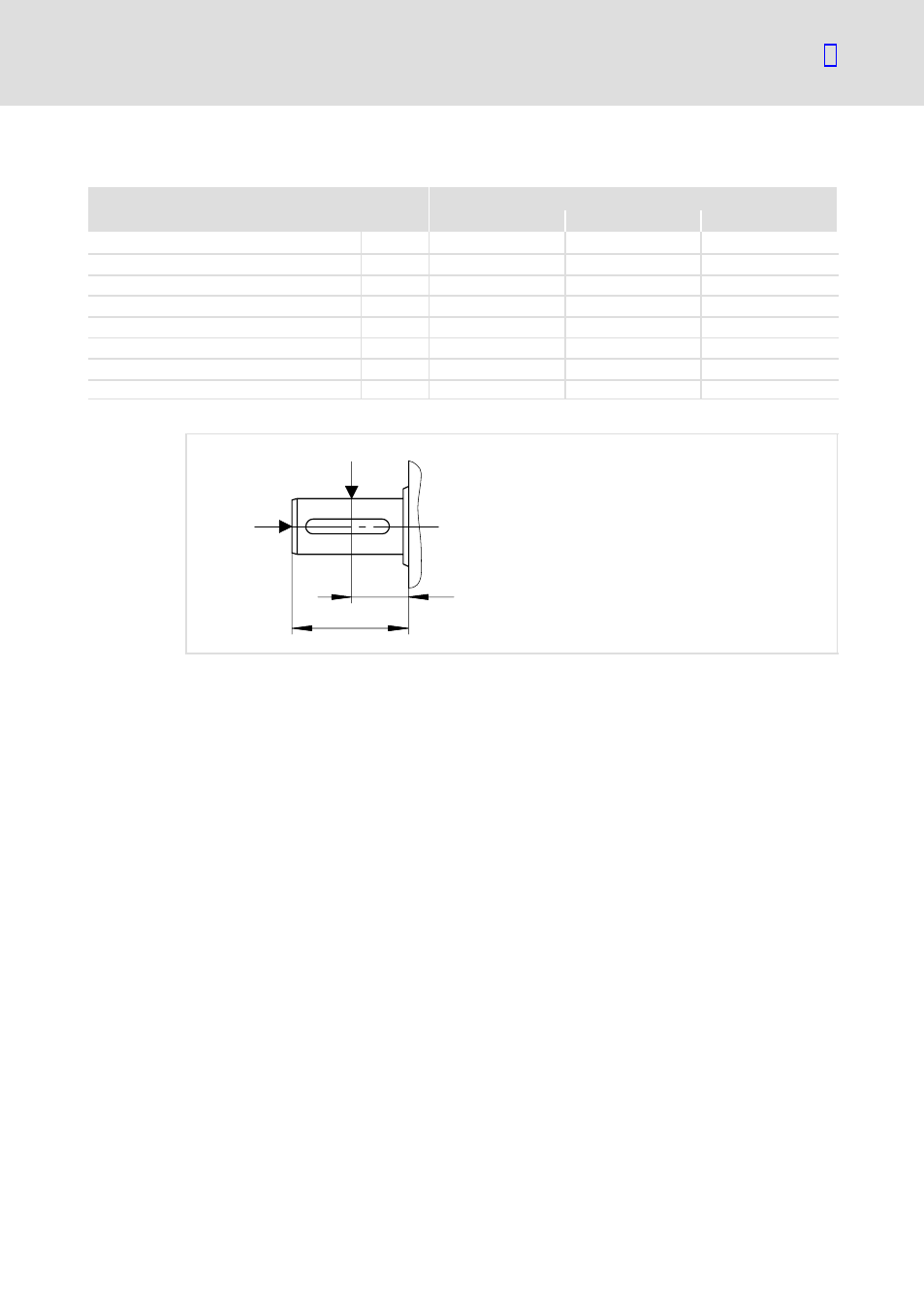

Fig. 8 Points of application of the radial (F
r
) and axial force (F
a
)
