4 Mechanical installation
EDK82ZWBRU DE/EN/FR 2.0
L
30
For the mechanical installation of the brake switch, please observe the installation
instructions of the base unit.
The installation instructions
z are part of the scope of delivery and accompany every unit,
z contain notes to prevent damages through improper handling,
z describe the order of installation steps to be maintained.
M16
0
1
1 2 3

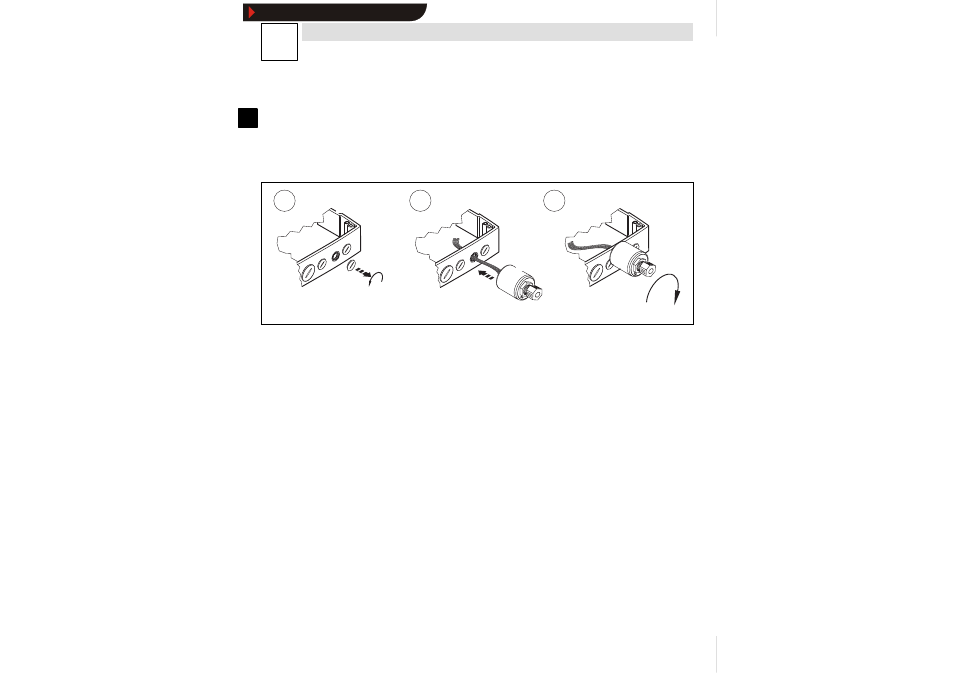

-11- 82ZBU002
Base unit support housing
Brake switch
1. Unscrew blind plug.
2. Insert the cores of the brake switch through the sealing and the entry.
3. Fasten the brake switch fingertight.
