Diagnostics
LED status displays
9
l
67 EDS82ZAFPC010 EN 4.0
9 Diagnostics

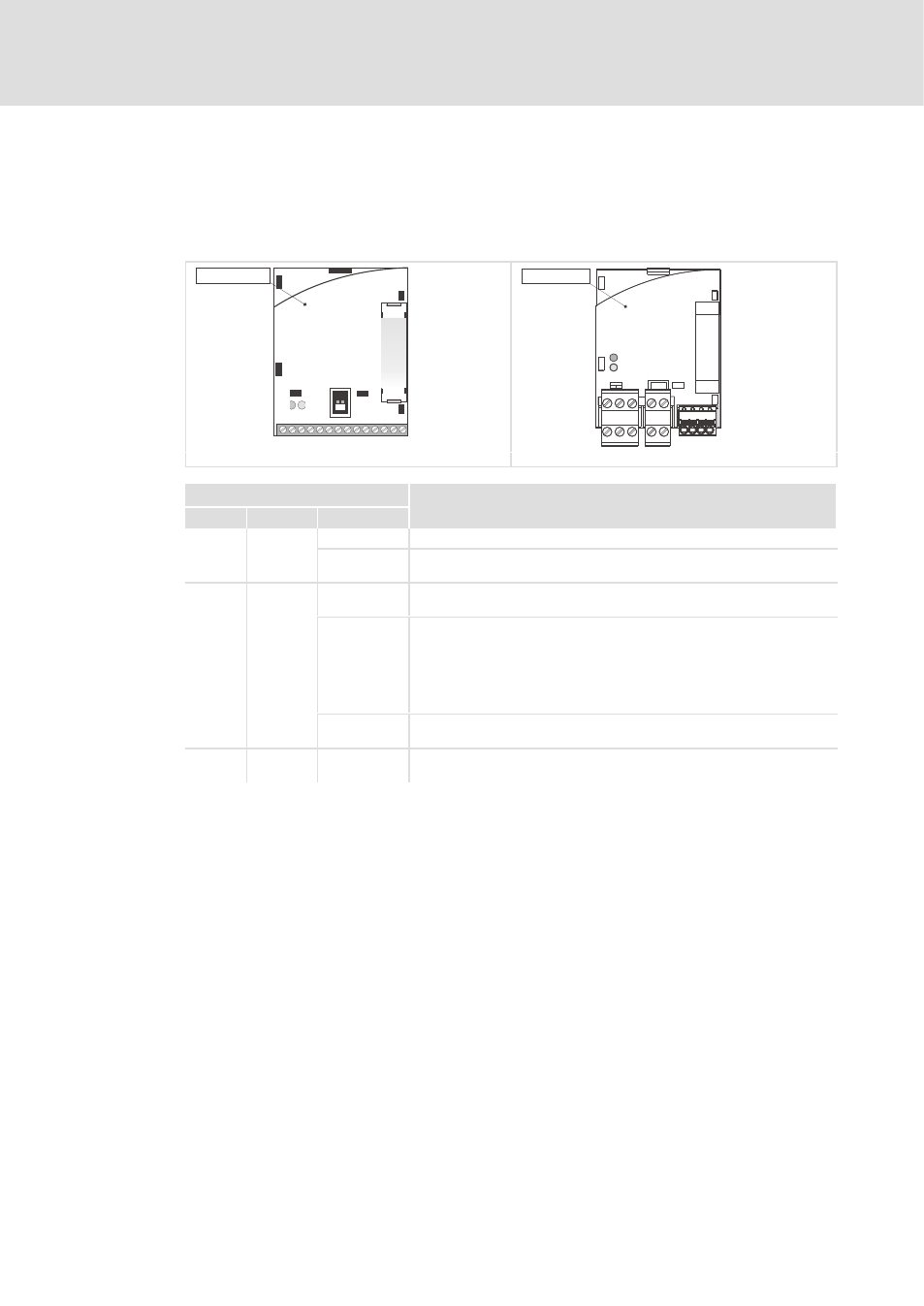

9.1 LED status displays
1
ON
A A B B CN VP 7 40 39 28 20 59 7 +
2 1
E82ZAFP00x
2
1
E82ZAFP010
E82ZAFP004 E82ZAFP008
LED
Description Pos. Colour Condition
1 yellow off No communication with the PROFIBUS master.
blinking Communication with the PROFIBUS master has been established via the
function module.
2 green off l The function module is not supplied with voltage.
l The standard device and/or the external voltage supply is switched off.
blinking The function module is supplied with voltage but is not connected to the
standard device.
Causes:
l The standard device is switched off.
l The standard device is in the initialisation phase.
l The standard device is not available
on The function module is supplied with voltage and is connected to the
standard device.
1 + 2 yellow/
green blinking Internal function module error
