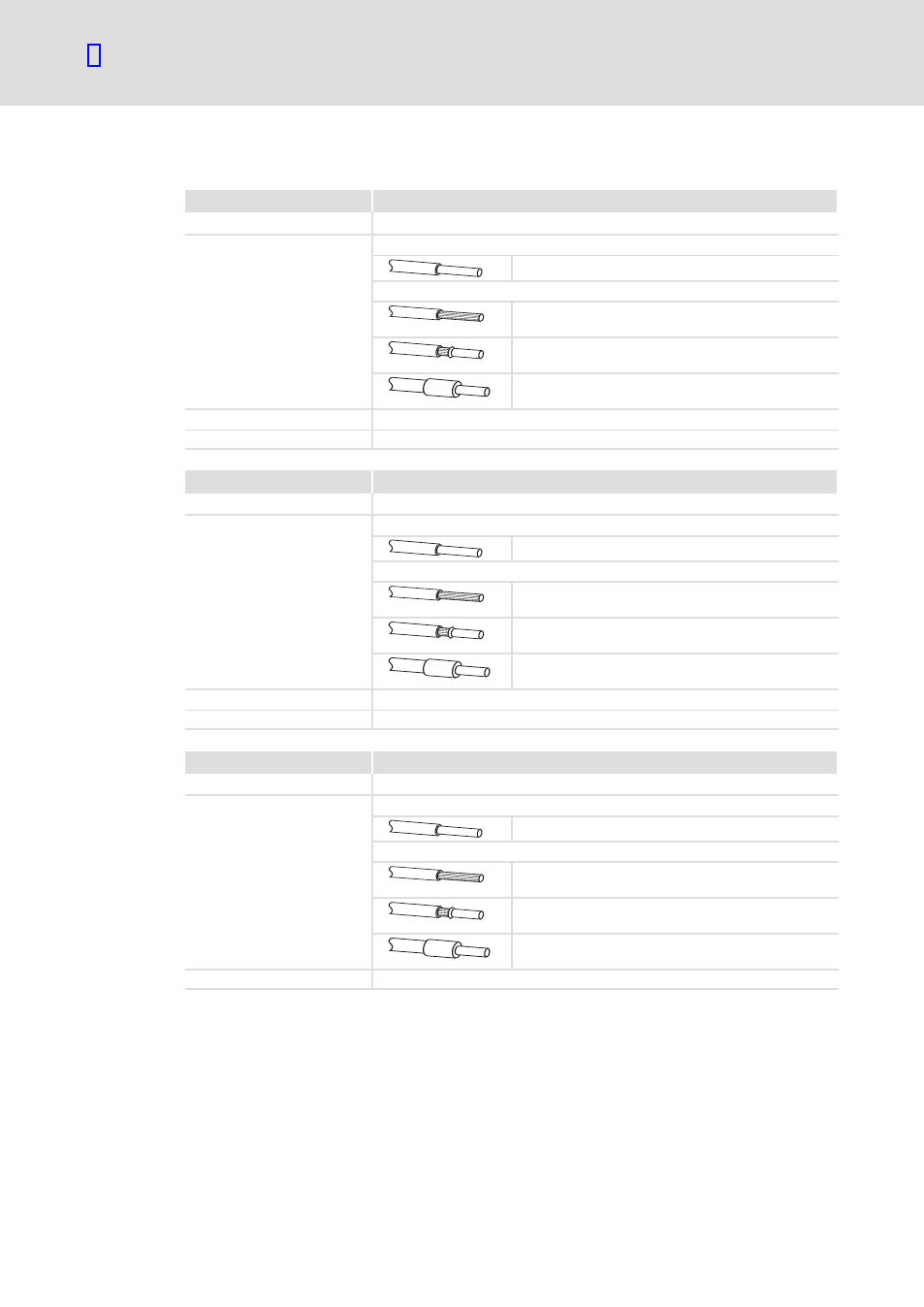

5.2.5 Cable cross−sections and screw−tightening torques
Range Values
Electrical connection Terminal strip with screw connection
Possible connections rigid:
1.5 mm 2 (AWG 16)
flexible:
without wire end ferrule
1.0 mm
2 (AWG 18)
with wire end ferrule, without plastic sleeve
0.5 mm
2 (AWG 20)
with wire end ferrule, with plastic sleeve
0.5 mm
2 (AWG 20)
Tightening torque 0.22 ... 0.25 Nm (1.9 ... 2.2 lb−in)
Bare end 5 mm
Field Values
Electrical connection Plug connector with double screw connection
Possible connections rigid:
1.5 mm 2 (AWG 16)
flexible:
without wire end ferrule
1.5 mm
2 (AWG 16)
with wire end ferrule, without plastic sleeve
1.5 mm
2 (AWG 16)
with wire end ferrule, with plastic sleeve
1.5 mm
2 (AWG 16)
Tightening torque 0.5 ... 0.6 Nm (4.4 ... 5.3 lb−in)
Stripping length 10 mm
Field Values
Electrical connection 2−pin plug connector with spring connection
Possible connections rigid:
1.5 mm 2 (AWG 16)
flexible:
without wire end ferrule
1.5 mm
2 (AWG 16)
with wire end ferrule, without plastic sleeve
1.5 mm
2 (AWG 16)
with wire end ferrule, with plastic sleeve
1.5 mm
2 (AWG 16)
Stripping length 9 mm
