Electrical installation
Voltage supply
2
EDK94AZCEH DE/EN/FR/ES/IT 1.0
19

H1_E_INST-Spannungsversorgg
2 Electrical installation Voltage supply

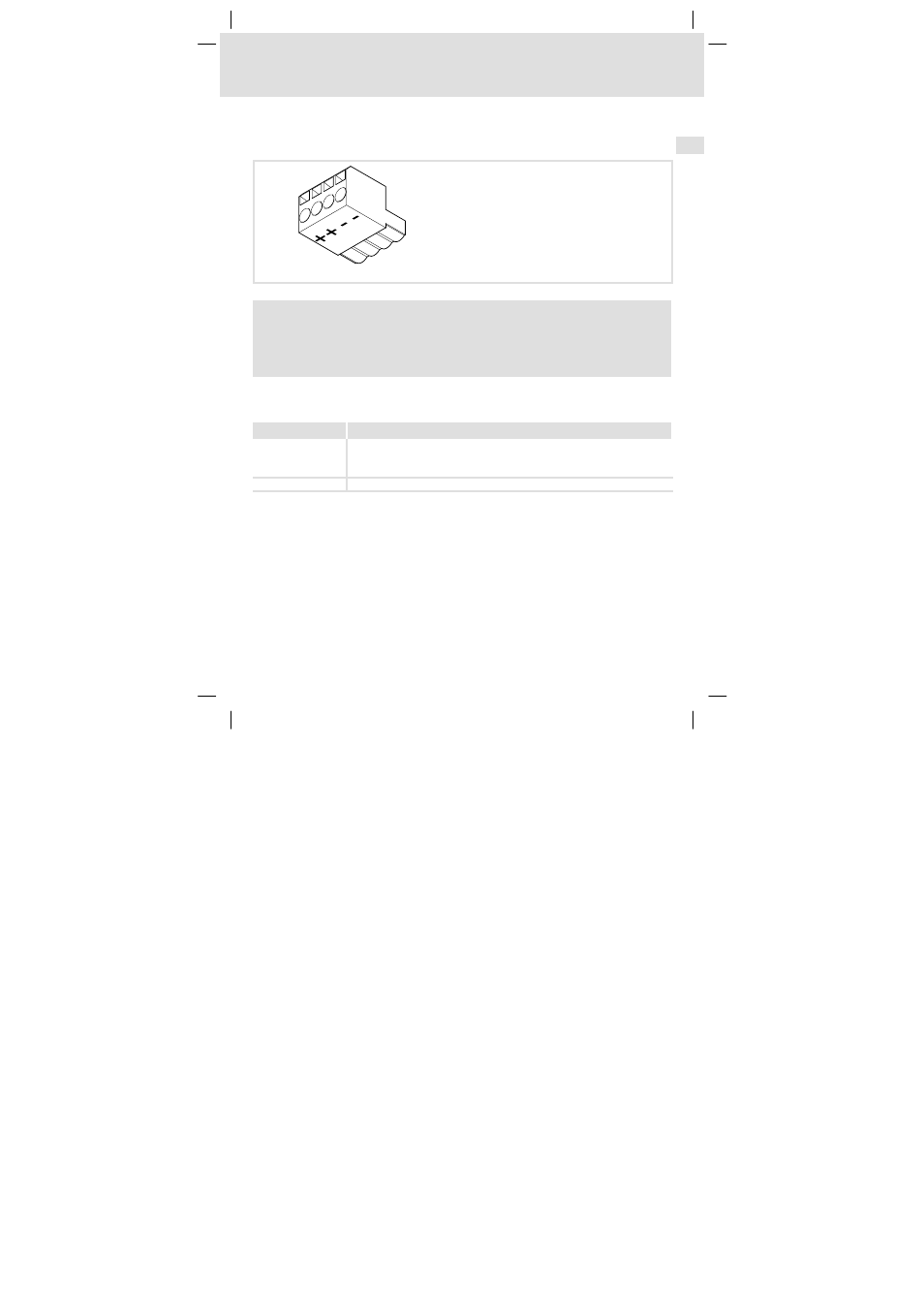

External voltage supply
E94AZCEH001C

Stop!
The double plug connector terminals are used to conduct the voltage supply.
The total current resulting from the series connection of several devices must
not exceed I
max.
= 10 A per terminal.
Plug connector connection:
Plug connector Explanation
+ Voltage supply
U = 24 V DC (20.4 V - 0 % ... 28.8 V + 0 %)
I = 210 mA
- Reference potential for voltage supply
