5 Electrical installation
Ethernet connection
EDK94AYCEN DE/EN/FR/ES/IT 6.0
32
l
H2_EthernetAnschluss−farbcodierung
Ethernet connection
You can use a standard Ethernet patch cable for connection to the communication module
(see "Ethernet cable specifications" (
^ 33)).
)
Note!
ƒ Isolate your Ethernet home network from the operating network for
Ethernet−capable Lenze devices to avoid Ethernet communication errors.
More information about this can be found in the Manual "Ethernet in
industrial applications".
ƒ Plug/remove the Ethernet cable plug vertically into/from the socket to
make sure that the RJ45 socket will not be damaged.

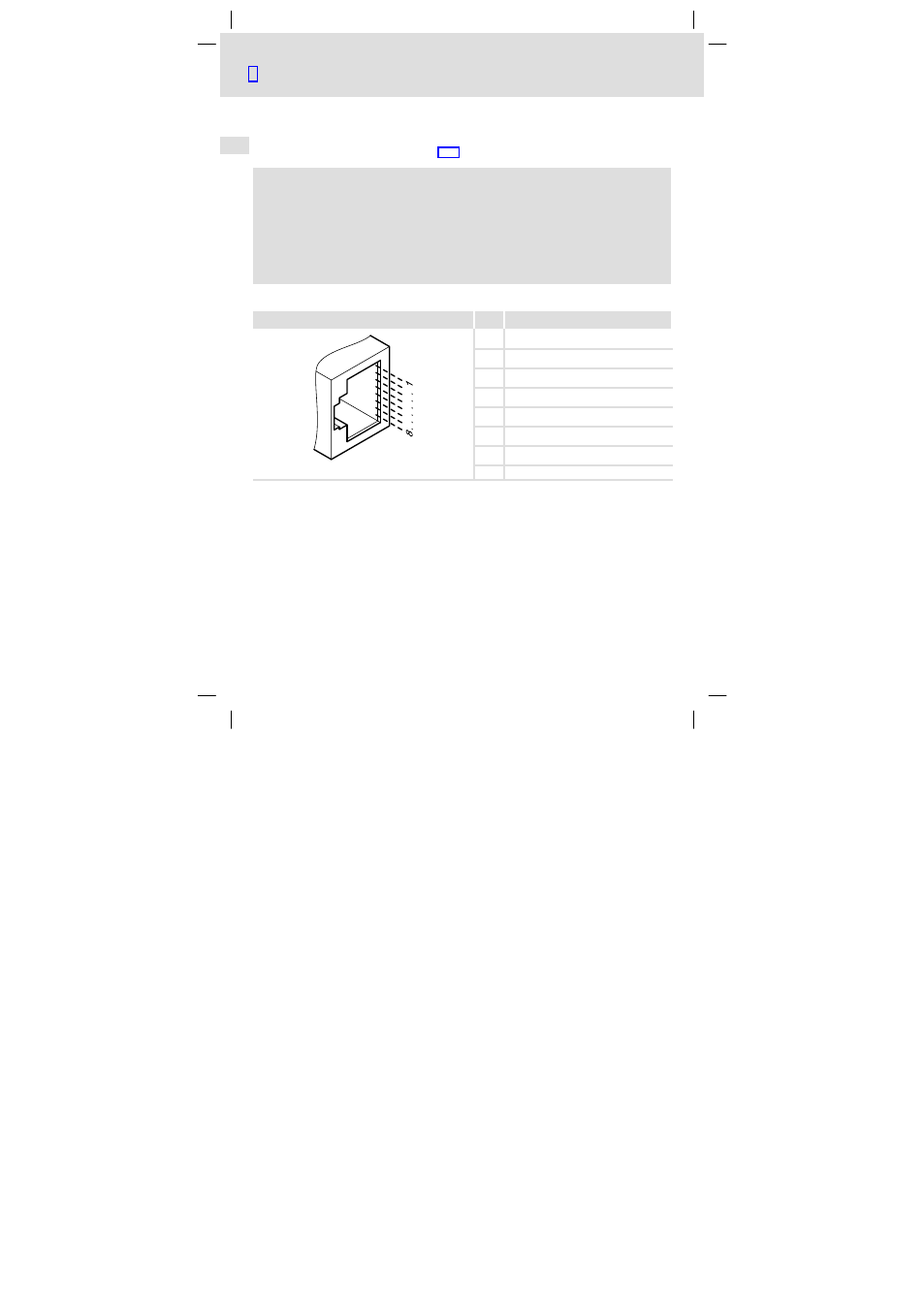

Pin assignment
RJ45 socket PIN Signal
1 Tx +
2 Tx −
3 Rx +
4 −
5 −
6 Rx −
7 −
E94AYCXX004C 8 −
I
Tip!
The Ethernet interfaces are equipped with an auto−MDIX function. This
function adapts the polarity of the RJ45 interfaces such that independently of
the polarity of the opposite Ethernet interface and the cable type used
(standard patch cable or crossover cable) a connection is established.
